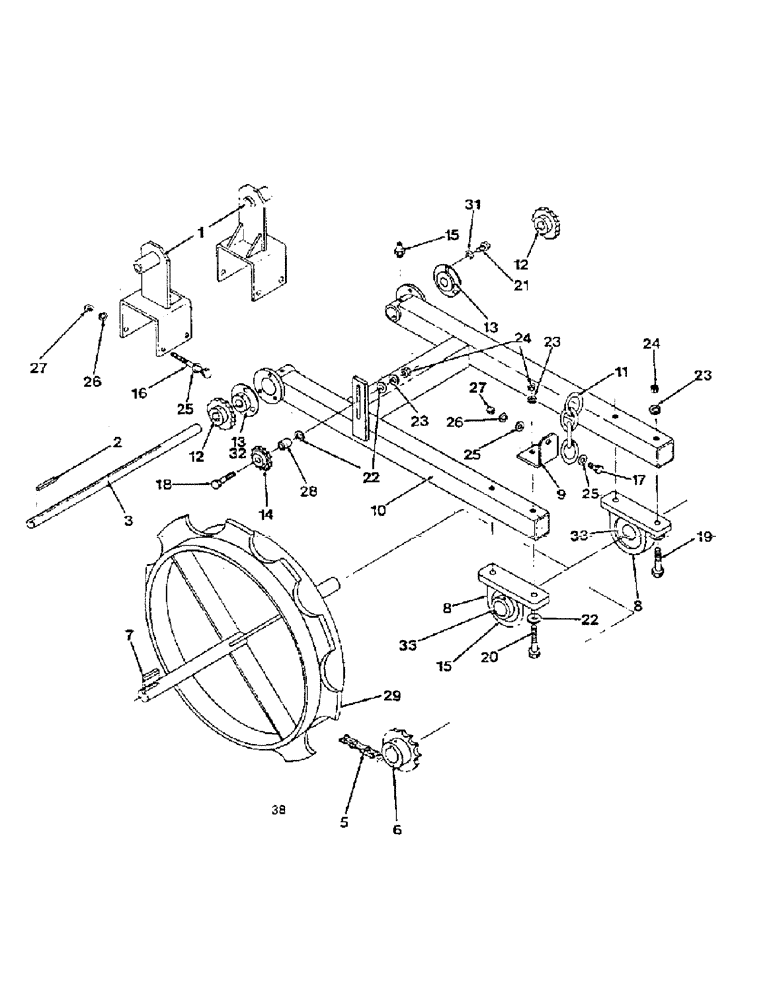

Запчасти Case IH 1002 (38) - DRIVE WHEEL ASSEMBLY

1

013-001

SUPPORT ASSEMBLY - seed drive

2шт.

2

011-018

KEY, .25 square seed drive

3шт.

3

011-008

SHAFT - seed drive

1шт.

4

SPROCKET - #5038 teeth fertilizer drive

1шт.

5

011-013

CHAIN - #2040 - seed drive wheel, 66P c/w connector

1шт.

6

011-019

SPROCKET - #4038 - 1.50" diameter bore

1шт.

7

011-010

KEY - .37" square seed wheel

1шт.

8

011-011

PILLOW BLOCK, c/w bearing

2шт.

9

011-014

LUG - seed wheel lift

1шт.

10

011-001

SEED WHEEL ASSEMBLY

1шт.

11

CHAIN - see hydraulic wheel lift and plow hoses (Ref.)

1шт.

12

122-001

SPROCKET - Browning #4024, - 1" bore

1шт.

13

010-122

FLANGETTE

3шт.

14

001-025

IDLER SPROCKET - G & G GI-40-17

1шт.

15

016-010

GREASE ZERK

4шт.

16

900-221

HEX HEAD BOLT - .37" x 5.50" long

4шт.

17

900-207

HEX HEAD BOLT - .37" x 1.50" long

1шт.

18

900-411

HEX HEAD BOLT - .50" x 2.50" long

1шт.

19

900-415

HEX HEAD BOLT - .50" x 3.50" long

3шт.

20

900-417

HEX HEAD BOLT - .50" x 4.0" long

1шт.

21

900-103

HEX HEAD BOLT - .31" x .75" long

9шт.

22

900-490

FLATWASHER - .50

6шт.

23

900-492

LOCKWASHER - .50

5шт.

24

900-485

NUT, hexagon .50

5шт.

25

900-290

FLATWASHER - .37

9шт.

26

900-292

LOCKWASHER - .37

5шт.

27

900-285

NUT, hexagon .37

5шт.

28

011-016

SPACER - idler sprocket

1шт.

29

085-001

SEED DRIVE WHEEL - steel

1шт.

30

SPROCKET - #4030, 1" bore

1шт.

31

900-192

LOCKWASHER - .31

9шт.

32

010-123

BEARING - c/w locking collar

3шт.

33

011-110

BEARING - c/w locking collar

1шт.
