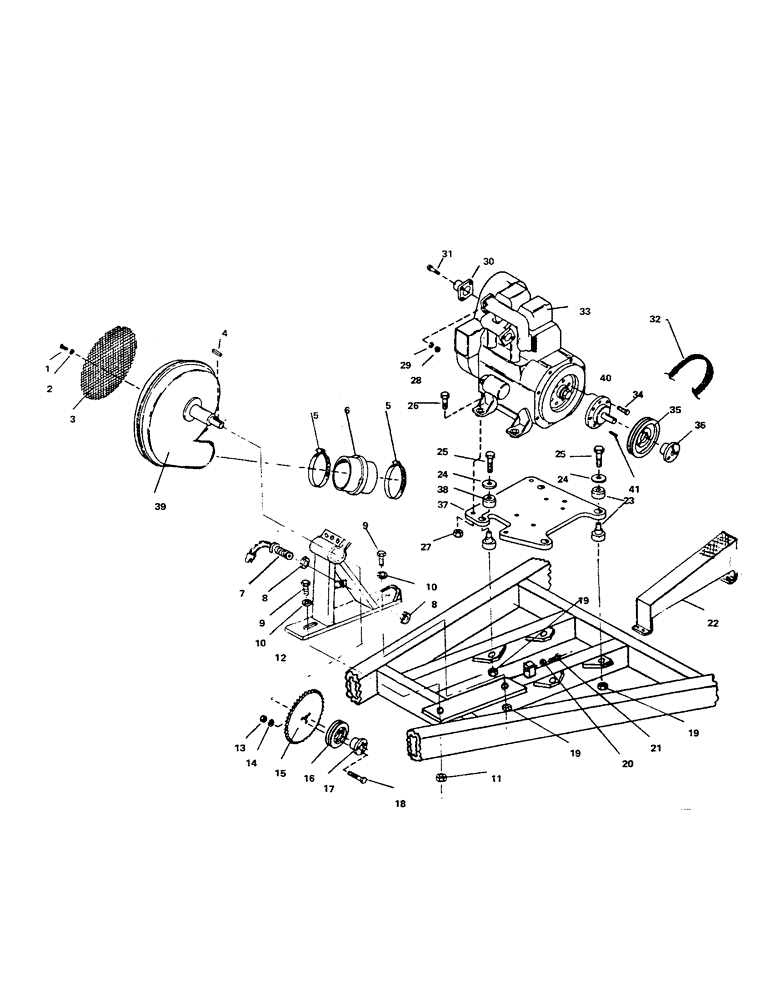

Запчасти Case IH 1002 (32) - ENGINE AND MOUNTING, DIESEL ONLY

1

1013243

BOLT

BOLT, hex 1/4" x 1/2"

6шт.

2

1014977

BLANK-OFF PLUG

SLUG

6шт.

3

1014962

SCREEN

1шт.

Note item # 3, 1014962 screen, order kit 1020801 - the 1014962 screen is not available - that screen was disk that was screwed directly to the blower. This kit will convert to todays style where they have a cylinder of screen that gets attached to the blower. The kit can been seen in catalog 9-28512 page 34-E & 35-E. It is now used across all air systems - same blower asy. djo cam 5/27/99

1шт.

4

1014870

KEY

1шт.

5

1012455

CLAMP

hose

2шт.

6

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

- Reducer 5.00" ID, 6.00" ID x 6.00"

1шт.

7

1016300

SENSOR

MAGNETIC PICK UP

1шт.

8

1016592

NUT, tam

2шт.

9

BOLT, hex

2шт.

10

FLAT WASHER

2шт.

11

NUT

2шт.

12

MOUNT BLOWER

1шт.

13

1011587

NUT,1/4"-20, G5

1/4"

3шт.

14

1013242

WASHER, LOCK

LOCKWASHER 1/4"

3шт.

15

1016120

SPROCKET ASSY.

SPROCKET

1шт.

16

1014865

SHEAVE

1шт.

17

1014868

HUB

1шт.

18

1016211

BOLT

BOLT, hex 1/4" x 1/2"

3шт.

19

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

20

NUT, jam

1шт.

21

BOLT, adjustment

1шт.

22

BELT SHIELD

1шт.

23

1014739

ISOLATOR

150 lbs.

2шт.

24

1014741

WASHER

snubbing

4шт.

25

1011623

BOLT

4шт.

26

1014000

BOLT

BOLT

4шт.

27

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

28

1011575

NUT,5/16"-18, G5

1шт.

29

1014125

LOCK WASHER

LOCK WASHER

3шт.

30

1014805

FLANGE ASSEMBLY

1шт.

31

1011598

BOLT

2шт.

32

BELT SET 3VX670

1шт.

33

1014927

ENGINE

1шт.

34

1012384

BOLT

8шт.

35

1014863

SHEAVE

6.90" O.D.

1шт.

36

1012343

HUB

1шт.

37

1014736

LARGE PLATE

PLATE

1шт.

38

1014738

ISOLATOR

90 lbs.

2шт.

39

1016236

BLOWER

1шт.

40

1012363

SHAFT

STUBSHAFT - drive

1шт.

41

1012975

KEY

1шт.
