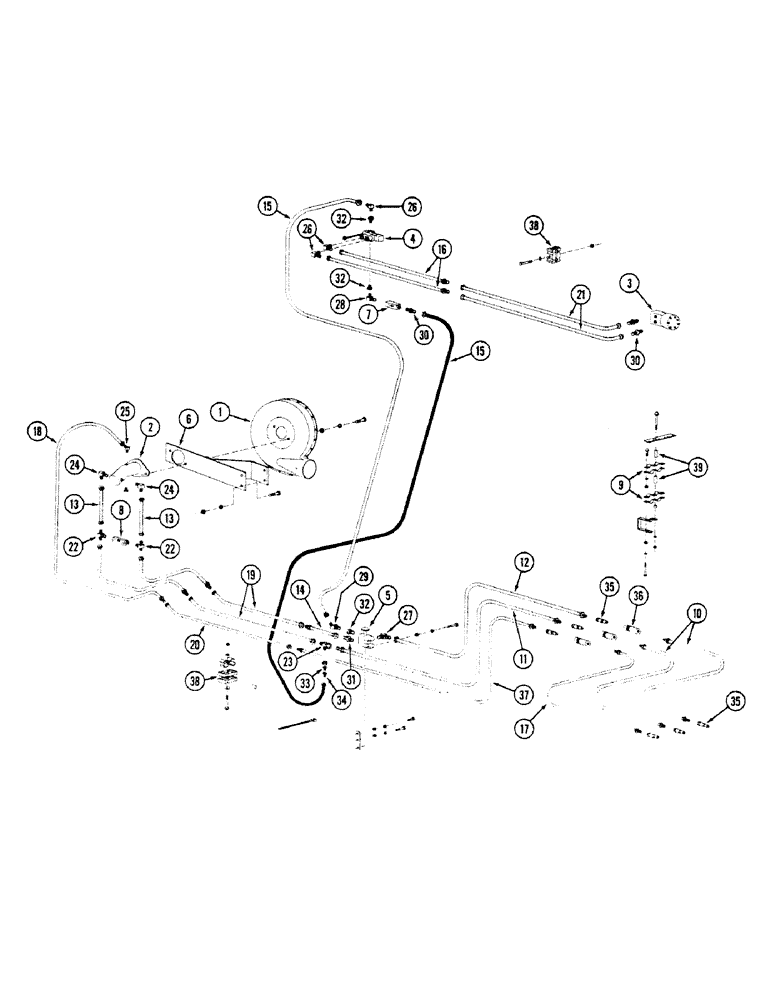

Запчасти Case IH 8100 (8-02) - AUGER HYDRAULICS, WITH HYDRAULIC FAN DRIVE (08) - HYDRAULICS

1

REF

INSTRUCTION

FAN - hydraulic motor (See Page 8-7)

1шт.

2

1544137C1

MOTOR, HYDRAULIC

MOTOR - hydraulic

1шт.

1544143C1

SEAL KIT

SEAL KIT - hydraulic motor (Not Shown)

1шт.

3

1544135C1

MOTOR, HYDRAULIC

MOTOR - orbit

1шт.

1544142C1

SEAL KIT

SEAL KIT - orbit motor (Not Shown)

1шт.

4

1544128C1

CONTROL

VALVE - control

1шт.

5

1544182C1

VALVE

- selector, 3/4 inch FNPT

1шт.

6

1543951C1

BRACKET

- mounting

1шт.

7

1544127C1

VALVE

- check, 1/2 inch FNPT

1шт.

8

1544098C1

VALVE, CHECK

VALVE - check

1шт.

9

1544361C1

CLAMP

- pioneer coupler

4шт.

10

NSS

NOT SOLD SEPARAT

HOSE - hydraulic, 3/4 x 396 inch, 1/2 inch MNPT

2шт.

11

1544390C1

HOSE ASSY.

HOSE - hydraulic, 3/4 x 204 inch

1шт.

12

1544389C1

HOSE ASSY.

HOSE - hydraulic, 3/4 x 192 inch

1шт.

13

1544386C1

HOSE ASSY.

HOSE - hydraulic, 3/4 x 12 inch

2шт.

14

1544388C1

HOSE

- hydraulic, 3/4 x 12 inch

1шт.

15

1544391C1

HOSE ASSY.

HOSE - hydraulic, 1/2 x 132 inch

2шт.

16

D23030

HOSE

- hydraulic, 1/2 x 36 inch

2шт.

17

NSS

NOT SOLD SEPARAT

HOSE - hydraulic, 3/8 x 396 inch, 1/2 inch MNPT

1шт.

18

1544397C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 48 inch

1шт.

19

1544181C1

HYD TUBE,1" OD, 92, 6" Length

TUBE - hydraulic, 1 x 92 inch

2шт.

20

1544194C1

HYD TUBE

TUBE - hydraulic, 1/2 x 96 inch

1шт.

21

1544118C1

HYD TUBE

TUBE - hydraulic, 5/8 x 99 inch

2шт.

22

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch adj O-ring branch x flare

2шт.

23

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1-5/16-12 inch fl branch x flare x adj straight thread

1шт.

24

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

2шт.

25

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

26

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

3шт.

27

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, 1-1/16-12 flare x 3/4 inch PT

1шт.

28

217-1226

ELBOW,90 Degree, 1/2"-14 Male

- pipe, 90 degree, 1/2 inch

1шт.

29

86513002

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 90 degree, 7/8 flare x 1/2 inch PT

1шт.

30

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

3шт.

31

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 1-1/16-12 flare x 3/4 inch PT

1шт.

32

221-351

COUPLING,Pipe, 3/4" x 1/2" NPT

REDUCER - 3/4 PT male x 1/2 inch PT female

3шт.

33

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducing, 1 tube OD x 1-1/16-12 inch flare

1шт.

34

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

ADAPTER - reducing, 1-1/16-12 str thread x 7/8-14 inch flare

1шт.

35

1285718C2

QUICK MALE COUPLING

- self sealing male, 3/4-16 thread (ISO Standard)

6шт.

36

1337480C1

COUPLING

COUPLER - female, 1/2 inch FNPT

3шт.

37

1544392C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 204 inch

1шт.

38

1544101C1

CLAMP

- nylon

8шт.

39

1544060C1

SPACER

- coupler clamp

4шт.
