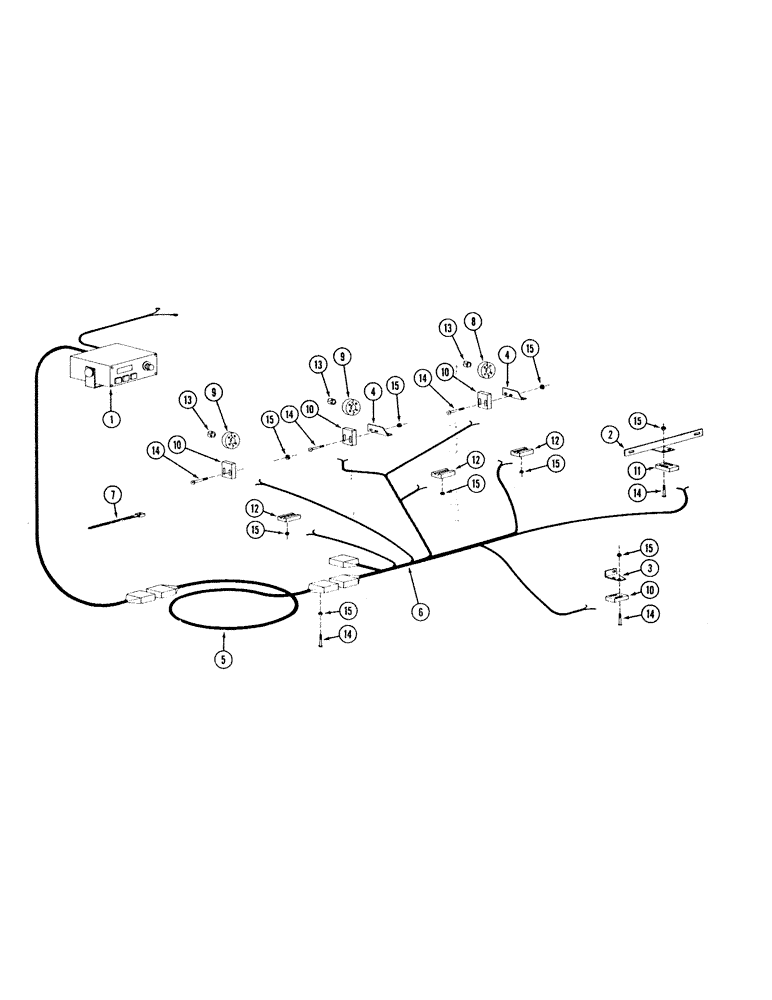

Запчасти Case IH 8100 (4-4) - MONITOR AND HARNESS (04) - ELECTRICAL SYSTEMS

1

1544209C1

BOARD, PRINTED CIRCU

MONITOR - seed

1шт.

2

1543910C1

MOUNTING PARTS

BRACKET - sensor mounting

1шт.

3

1544034C1

MOUNTING PARTS

BRACKET - sensor mounting

1шт.

4

1544059C1

MOUNTING PARTS

BRACKET - sensor mounting

1шт.

5

1544210C1

HARNESS

EXTENSION CABLE - tow behind

1шт.

6

1544183C1

HARNESS

- electrical, monitor

1шт.

7

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - cable lock, nylon

12шт.

8

1544141C1

SWITCH

ACTUATOR - 2 magnets, reed switch

2шт.

9

1544140C1

SWITCH

ACTUATOR - 4 magnets, reed switch

2шт.

10

1544139C1

SWITCH

PICKUP - reed switch

4шт.

11

1544138C1

SENSOR

PICKUP - magnetic

1шт.

12

1544172C1

SENSOR

- bin level

3шт.

13

1544068C1

BUSHING

SPACER - bushing

3шт.

14

440-10816

SCREW,Cross Pan Hd, #8-32 x 1"

- pan head Phillips, No. 8-32 x 1 inch

14шт.

15

225-14108

NUT,#8-32

- hex, No. 8 NC

20шт.
