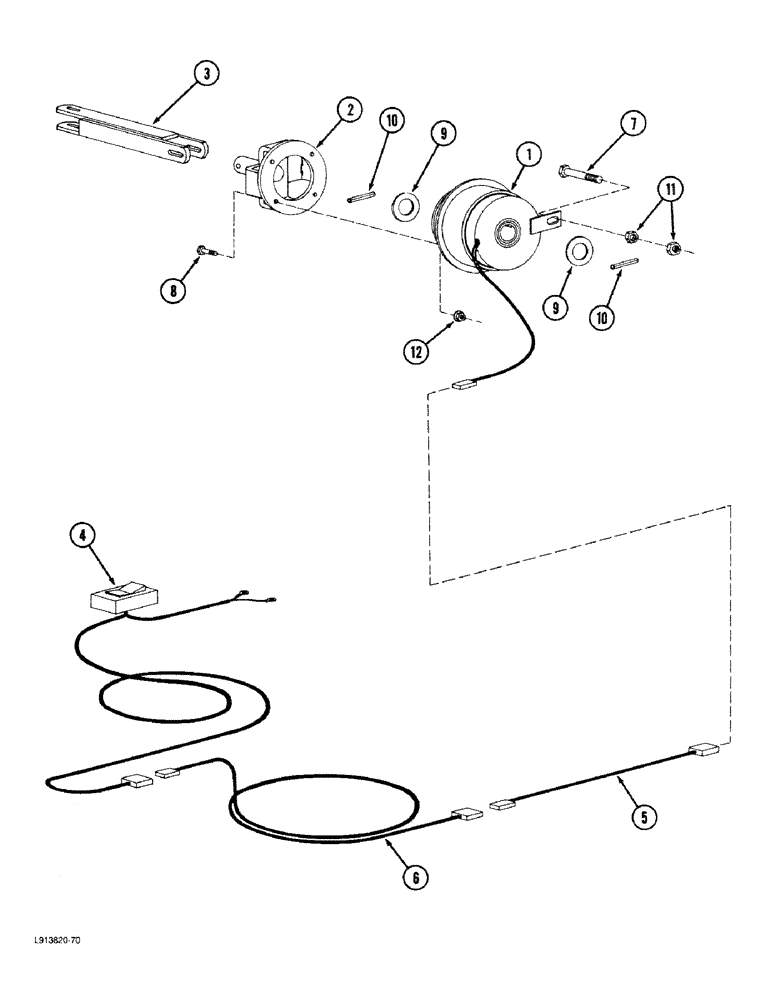

Запчасти Case IH 8100 (4-2) - ELECTRIC CLUTCH, FERTILIZER OPTION (04) - ELECTRICAL SYSTEMS

1

1544355C1

CLUTCH

- electric, 12 volt

1шт.

2

1543959C1

COUPLING

COUPLER - clutch

1шт.

3

1543960C1

COUPLING

COUPLER - clutch (130 bushel machines)

1шт.

3

1547668C1

COUPLING

COUPLER - clutch (180 bushel machines)

1шт.

4

1544167C1

HARNESS

SWITCH HARNESS - clutch

1шт.

5

1544184C1

ELECTRICAL WIRE

WIRE - clutch

1шт.

6

1544168C1

EXTENSION

WIRE - extension, tow behind

6шт.

7

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

9

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

2шт.

10

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.
