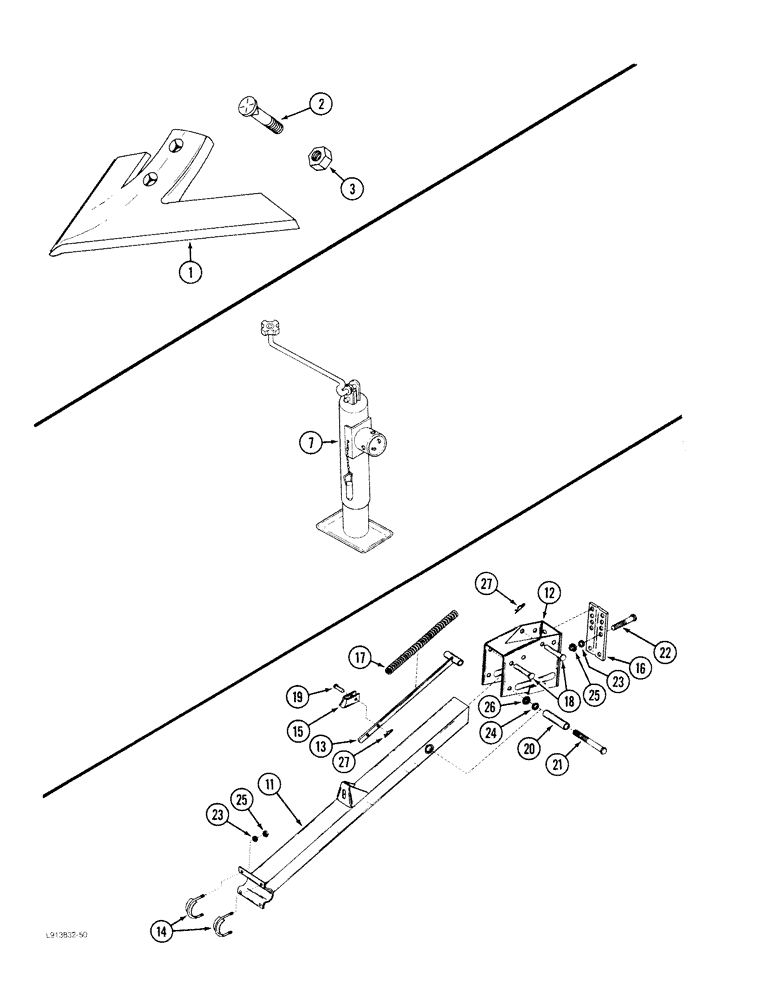

Запчасти Case IH 8100 (9B-40) - CHISEL SWEEPS (09) - CHASSIS/ATTACHMENTS

1

810194C2

SHOVEL

SWEEP - chisel, 12 inch width

1шт.

1

810195C2

SHOVEL

SWEEP - chisel, 14 inch width

1шт.

1

810196C2

SWEEP

- chisel, 16 inch width

1шт.

2

602307R1

CARRIAGE BOLT,#3, 1/2" x 2 1/4"

BOLT - flat head square neck, 1/2 NC x 2-1/4 inch

1шт.

2

28158R1

CARRIAGE BOLT,#3, 1/2" - 13 x 2 1/2", Gr 5

BOLT - flat head square neck, 1/2 NC x 2-1/2 inch

1шт.

2

118-334

PLOW BOLT,1/2"-13 x 2 3/4", G5

BOLT - flat head square neck, 1/2 NC x 2-3/4 inch

1шт.

2

28646R1

CARRIAGE BOLT,#3, 1/2" - 13 x 4", Gr 5

BOLT - flat head square neck, 1/2 x 4 inch

1шт.

3

329-108

NUT,1/2"-13, G8

1шт.

7

1544353C1

HITCH ASSY

JACK ASSEMBLY - hitch

1шт.

1543894C1

ARM ASSEMBLY - harrow carrier (Machinery Item)

1шт.

11

1543891C1

ARM

- carrier HARROW

1шт.

12

1543890C1

BRACKET

- mounting HARROW CARRIER ARM

1шт.

13

1543892C1

ROD

- spring HARROW CARRIER ARM

1шт.

14

1543893C1

CLAMP

- harrow CARRIER ARM

2шт.

15

1544025C1

STOP

- transport HARROW CARRIER ARM

1шт.

16

1544024C1

PLATE

- carrier, front HARROW ARM

1шт.

17

1544123C1

SPRING

- carrier compression HARROW ARM

1шт.

18

39-51064

HEADED PIN,5/8" x 4"

PIN - adjusting, 5/8 inch HARROW CARRIER ARM

2шт.

19

1544124C1

PIN

- clevis, 7/16 x 31/32 inch HARROW CARRIER ARM

1шт.

20

1544026C1

BUSHING

- pivot, 3-1/16 inch HARROW CARRIER ARM

1шт.

21

1544125C1

BOLT

- hex special, 5/8 x 4-1/2 inch HARROW CARRIER ARM

1шт.

22

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch HARROW CARRIER ARM

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Harrow carrier arm 1/2"

8шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Harrow carrier arm 5/8"

1шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Harrow Carrier Arm 1/2"-13, G5

8шт.

26

425-1010

NUT,5/8"-11, G5

Harrow carrier arm 5/8"-11, G5

1шт.

27

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch HARROW CARRIER ARM

3шт.
