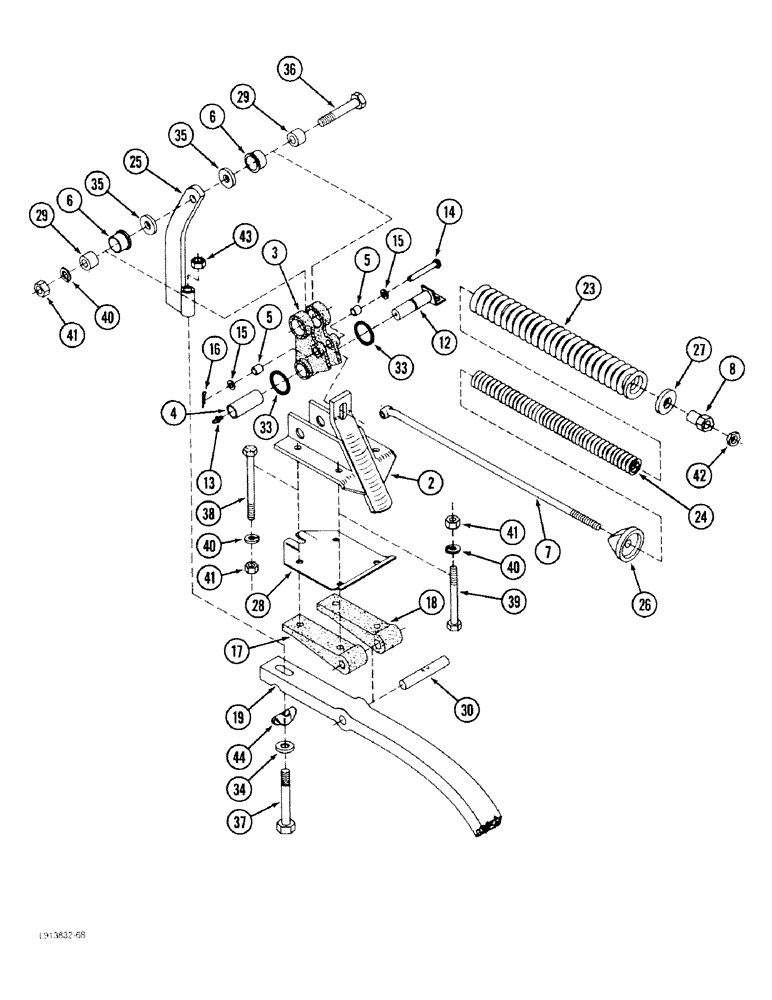

Запчасти Case IH 8100 (9B-38) - TRIP ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1544369C1

TRIP ASSEMBLY - cultivator

1шт.

2

1543719C1

PLATE

- trip, top

1шт.

3

1543718C1

TRIP

ROCKER - trip

1шт.

4

1544102C1

BUSHING

- trip rocker, lower

1шт.

5

1544108C1

BUSHING

- spring rod pivot

2шт.

6

1544107C1

BUSHING

- trip rocker, upper

2шт.

7

1544105C1

ROD

- spring

1шт.

8

1543988C1

NUT

- spring rod

1шт.

12

1543711C1

PIN

- trip rocker, lower

1шт.

13

16982R91

FITTING

- grease, 1/4 inch

1шт.

14

27-8276

CLEVIS PIN,1/2" x 2.766"

PIN - button head

1шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

16

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

1шт.

17

1543982C1

CASTING

HOLDER - shank, left

1шт.

18

1543983C1

CASTING

HOLDER - shank, right

1шт.

19

1543720C1

SHANK

- trip, with pin, 1-1/4 x 2 x 26 inch

1шт.

23

1544104C1

SPRING

- outer compression

1шт.

24

1544123C1

SPRING

- inner compression

1шт.

25

1543793C1

STRAP

- connecting

1шт.

26

1544106C1

PLUG

RETAINER - spring

1шт.

27

95-81123

WASHER,0.81" ID x 3" OD x 0.24" Thk

- flat, 13/16 x 3 x 1/4 inch

1шт.

28

1543984C1

PLATE

- trip base

1шт.

29

1543998C1

BUSHING

- trip, upper

2шт.

30

1543985C1

PIN

- shank pivot

1шт.

33

238-5327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

2шт.

34

1543999C1

WASHER

- shank retaining

1шт.

35

1544008C1

WASHER

SPACER - connecting strap

2шт.

36

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

1шт.

37

1544085C1

BOLT

- special, 5/8 x 5-1/2 inch

1шт.

38

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.

39

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

2шт.

40

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

41

425-1010

NUT,5/8"-11, G5

5шт.

42

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

1шт.

43

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

44

1544000C1

WASHER

- pivot

1шт.
