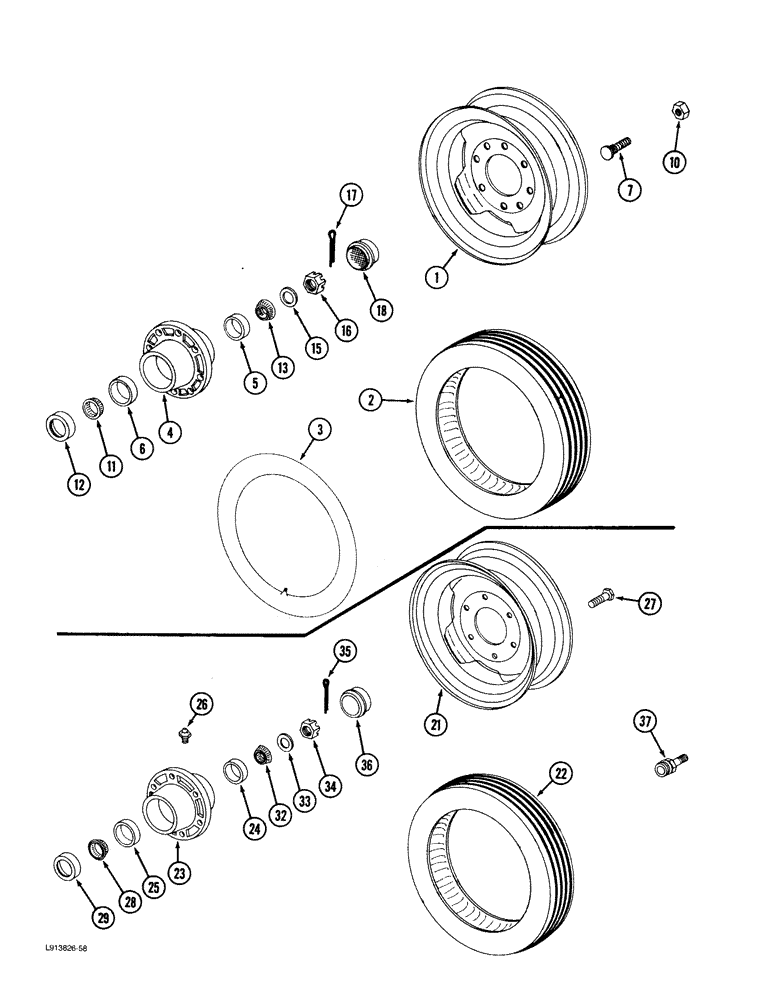

Запчасти Case IH 8100 (9B-36) - MAIN FRAME WHEEL (09) - CHASSIS/ATTACHMENTS

1

534362R1

WHEEL

- 15 x 10, 8 bolt hole

1шт.

2

NSS

NOT SOLD SEPARAT

TIRE - wheel, 11 x 15 LT (Procure locally)

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - tire (Procure locally)

1шт.

4

1544174C1

HUB

ASSEMBLY - non drive wheel

1шт.

5

663558R1

BEARING CUP

CUP - bearing, outer, 2-57/64 inch OD

1шт.

6

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP - bearing, inner, 3-13/16 inch

1шт.

7

1337428C1

BOLT

STUD - wheel, 5/8 NF x 2-1/2 inch

8шт.

10

554480R1

WHEEL NUT

- wheel stud on hub (replaces 1337446C1)

8шт.

11

327195R91

BEARING ASSY,2.25" ID x 3.8125" OD x 0.8268"

CONE - bearing, inner

1шт.

12

1544348C1

SEAL

- shaft

1шт.

13

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, outer, 1-5/8 inch ID

1шт.

15

96-81012

WASHER,1.25" ID x 2.25" OD x 0.18" Thk

- flat, 1-1/4 x 2-1/2 x 1/4 inch

1шт.

16

25-1320

SLOTTED NUT,1 1/4"-12, G5

1шт.

17

32-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

1шт.

18

1544347C1

CAP

- dust

1шт.

21

A57879

RIM

WHEEL - 15 x 8 inch HUB ASSEMBLY

1шт.

22

NSS

NOT SOLD SEPARAT

TIRE - wheel, 9.5L x 15 inch (Procure locally) HUB ASSEMBLY

1шт.

22

NSS

NOT SOLD SEPARAT

TIRE - wheel, 9 x 15 LT (Procure locally) HUB ASSEMBLY

1шт.

22

NSS

NOT SOLD SEPARAT

TIRE - wheel, 11 x 15 LT (Procure locally) HUB ASSEMBLY

1шт.

23

1544099C1

HUB ASSY.

HUB - wheel, heavy duty ASSEMBLY

1шт.

Quantity shown is for one hub assembly.

1шт.

24

G57451

BEARING, CUP

CUP - bearing, outer WHEEL AND HUB ASSEMBLY

1шт.

25

619387R1

BEARING CUP

CUP - bearing, inner WHEEL AND HUB ASSEMBLY

1шт.

26

16982R91

FITTING

- grease, 1/4 inch WHEEL AND HUB ASSEMBLY

1шт.

27

56047C1

BOLT,9/16" - 18 x 1 11/16", Class 3

STUD - wheel bolt, 9/16 x 1-11/16 inch AND HUB ASSEMBLY

6шт.

Quantity shown is for one hub assembly.

1шт.

28

G15215

ROLLER BEARING

CONE - bearing, inner WHEEL AND HUB ASSEMBLY

1шт.

Quantity shown is for one hub assembly.

1шт.

29

N13191

OIL SEAL

- shaft WHEEL AND HUB ASSEMBLY

1шт.

Quantity shown is for one hub assembly.

1шт.

32

G57452

ROLLER BEARING

CONE - bearing, outer, 1-3/8 inch ID WHEEL AND HUB ASSEMBLY

1шт.

Quantity shown is for one hub assembly.

1шт.

33

496-81008

WASHER,1.06" ID x 1.88" OD x 0.13" Thk

- flat, 1-1/16 x 1-7/8 x 1/8 inch, hardened WHEEL AND HUB ASSEMBLY

1шт.

Quantity shown is for one hub assembly.

1шт.

34

425-1216

SLOTTED NUT,Hex, 1"-8, G5

Wheel and Hub Assy Hex, 1"-8, G5

1шт.

Quantity shown is for one hub assembly.

1шт.

35

32-1224

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), , Wheel and hub assembly 3/16" x 1 1/2"

1шт.

Quantity shown is for one hub assembly.

1шт.

36

820167C1

CAP

- dust WHEEL AND HUB ASSEMBLY

1шт.

Quantity shown is for one hub assembly.

1шт.

37

536705R91

VALVE

- tire inflation, 5/8 inch diameter WHEEL AND HUB ASSEMBLY

1шт.

Quantity shown is for one hub assembly.

1шт.

37

387897R91

VALVE STEM

VALVE - tire (Used with 1544401C1 tire) WHEEL AND HUB ASSEMBLY

1шт.

Quantity shown is for one hub assembly.

1шт.
