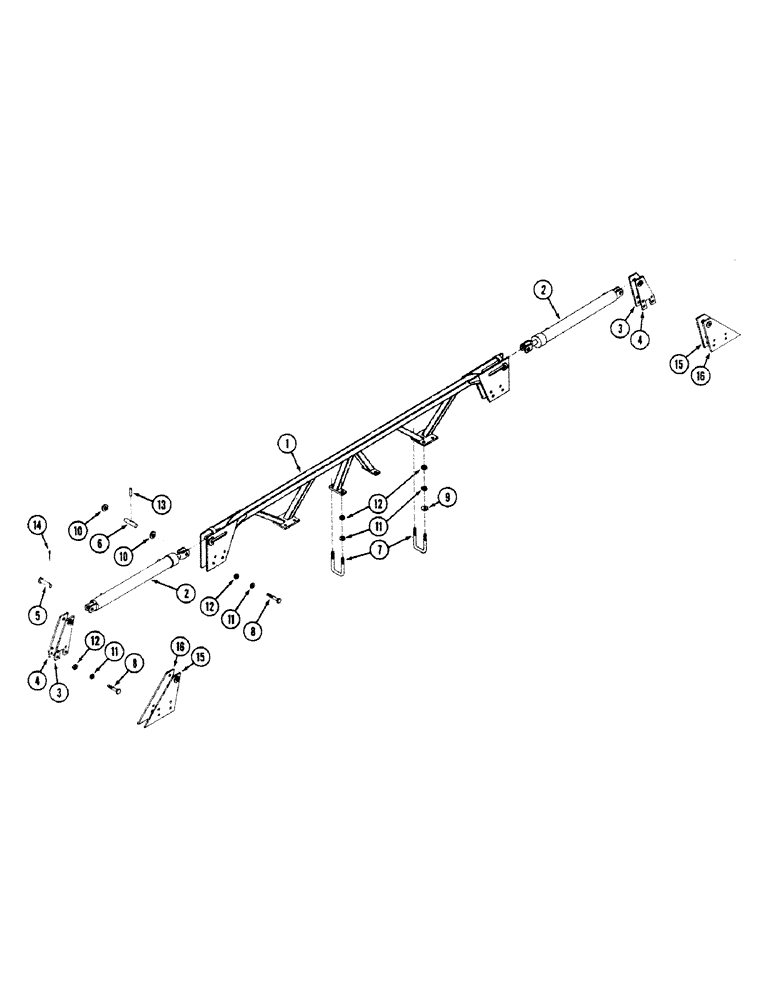

Запчасти Case IH 8100 (9B-30) - WING LIFT, 25 THRU 35 AND 31 THRU 41 FOOT (09) - CHASSIS/ATTACHMENTS

1

1543858C1

SUPPORT

TRUSS - wing lift

1шт.

2

1543771C1

CYLINDER

- hydraulic (See Page 8-23)

2шт.

3

1543776C1

PLATE

- left wing lift (25 - 35 Foot)

2шт.

4

1543777C1

PLATE

- right wing lift (25 - 35 Foot)

2шт.

5

439-51672

HEADED PIN,25.4mm OD x 114.3mm L

PIN - 1 x 3-3/4 inch

2шт.

6

1543993C1

PIN

- 1 x 3-1/2 inch

2шт.

7

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, plated

6шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

32шт.

9

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

10

1544344C1

WASHER

- flat, 1 inch

4шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

44шт.

12

425-1010

NUT,5/8"-11, G5

44шт.

13

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

2шт.

14

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

2шт.

15

1543980C1

PLATE

- left wing lift (31 - 41 Foot)

2шт.

16

1543979C1

PLATE

- right wing lift (31 - 41 Foot)

2шт.
