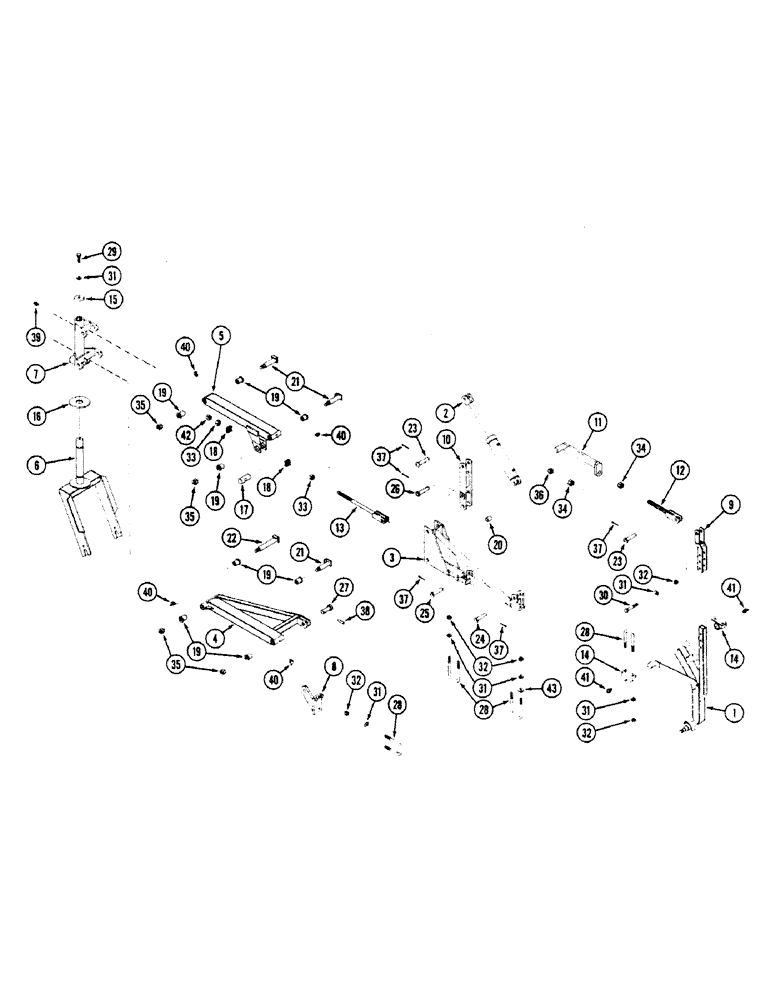

Запчасти Case IH 8100 (9B-26) - WING AXLE, 25 THRU 35 AND 31 THRU 41 FOOT, OUTER WING AXLE, 43 THRU 47 AND 49 THRU 59 FOOT (09) - CHASSIS/ATTACHMENTS

1

1543764C1

AXLE

- wing, right (Shown)

1шт.

1543765C1

AXLE

- wing, left

1шт.

2

1543706C1

CYLINDER

- hydraulic (See Page 8-21)

1шт.

3

1543827C1

BRACKET

- mounting, right (Shown)

1шт.

1543828C1

BRACKET

- mounting, left

1шт.

4

1543808C1

LINK

- lower

1шт.

5

1543804C1

LINK

- upper

1шт.

6

1543829C1

FORK

- castor

1шт.

7

1543801C1

BRACKET

PIVOT - castor

1шт.

8

1543833C1

BRACKET

- clevis right (Shown)

1шт.

1543834C1

BRACKET

- clevis, left

1шт.

9

1543813C1

CLEVIS

- offset

1шт.

10

1543809C1

ARM

LINK - cylinder

1шт.

11

1543812C1

BAR

LINK - adjustment

1шт.

12

1543811C1

ROD

- rear adjustment

1шт.

13

1543810C1

ROD

LINK - front adjustment

1шт.

14

1543715C1

BRACKET

- axle bearing

2шт.

15

1544007C1

CAP

- 3 inch

1шт.

16

1544005C1

PLATE

- wear

1шт.

17

1544009C1

KNUCKLE

- upper link

1шт.

18

1544112C1

BLOCK

- bearing

2шт.

19

1544111C1

BUSHING

- nylon

8шт.

20

1544010C1

SPACER

- cylinder link

1шт.

21

1543824C1

PIN

- pivot

3шт.

22

1543823C1

PIN

- pivot

1шт.

23

1544343C1

PIN

- 1 x 3-3/8 inch

2шт.

24

439-51672

HEADED PIN,25.4mm OD x 114.3mm L

PIN - 1 x 3-3/4 inch

1шт.

25

1544338C1

PIN

- link retaining

1шт.

26

1544341C1

PIN

- 1 x 4-3/4 inch

1шт.

27

1543709C1

PIN

- pivot

1шт.

28

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, plated

6шт.

29

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

30

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

3шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

32

425-1010

NUT,5/8"-11, G5

15шт.

33

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

34

425-1020

NUT,1 1/4"-7, G5

- hex, 1-1/4 inch NC

2шт.

35

231-41116

NUT,1"-8, GB

NUT - lock, 1 inch

4шт.

36

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex, jam, 1-1/4 inch NC

1шт.

37

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

5шт.

38

38-32032

PIN,7.92mm OD x 50.8mm L

5шт.

39

16982R91

FITTING

- grease, 1/4 inch

2шт.

40

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

4шт.

41

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 1/4 inch x 45 degree

2шт.

42

425-1416

JAM NUT,Jam, 1"-8, G5

- hex, jam, 1 inch NC

1шт.

43

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.
