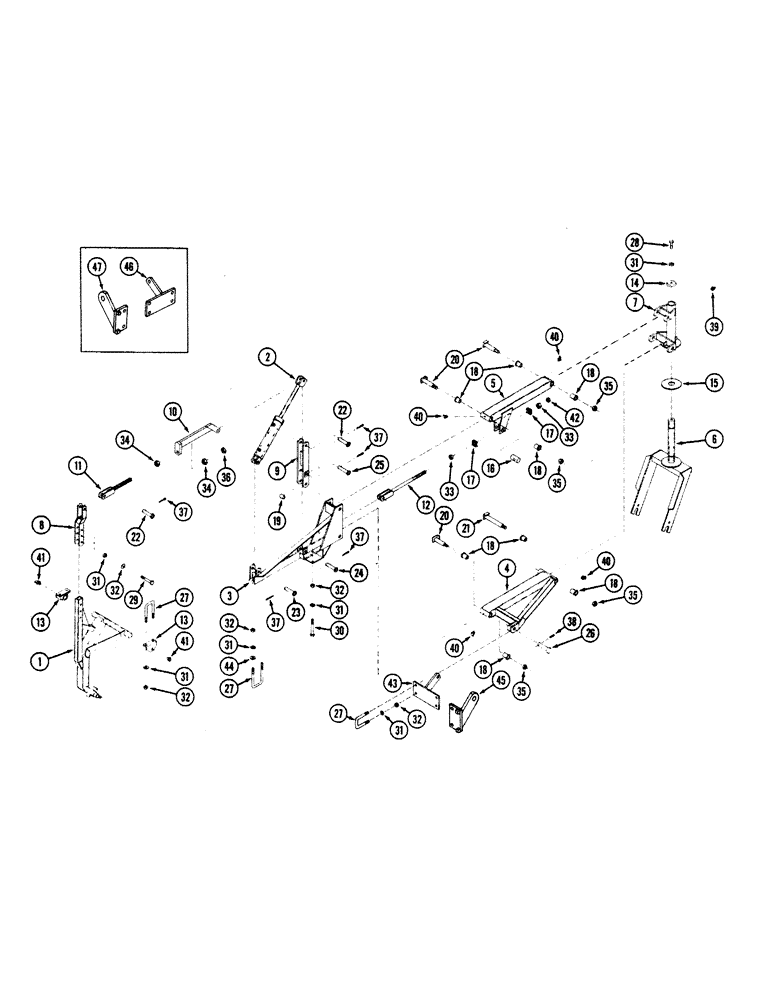

Запчасти Case IH 8100 (9B-24) - INNER WING AXLE, 43 THRU 47 AND 49 THRU 59 FOOT (09) - CHASSIS/ATTACHMENTS

1

1543764C1

AXLE

- wing, right (Shown)

1шт.

1

1543765C1

AXLE

- wing, left

1шт.

2

1543706C1

CYLINDER

- hydraulic (See Page 8-21)

1шт.

3

1543835C1

BRACKET

- mounting, right inner (Shown)

1шт.

1543836C1

BRACKET

- mounting, left inner

1шт.

4

1543808C1

LINK

- lower

1шт.

5

1543804C1

LINK

- upper

1шт.

6

1543829C1

FORK

- castor

1шт.

7

1543801C1

BRACKET

PIVOT - castor

1шт.

8

1543813C1

CLEVIS

- offset

1шт.

9

1543809C1

ARM

LINK - cylinder

1шт.

10

1543812C1

BAR

LINK - adjustment

1шт.

11

1543811C1

ROD

- rear adjustment

1шт.

12

1543843C1

ROD

- inner gauge

1шт.

13

1543715C1

BRACKET

- axle bearing

2шт.

14

1544007C1

CAP

- 3 inch

1шт.

15

1544005C1

PLATE

- wear

1шт.

16

1544009C1

KNUCKLE

- upper link

1шт.

17

1544112C1

BLOCK

- bearing

2шт.

18

1544111C1

BUSHING

- nylon

8шт.

19

1544010C1

SPACER

- cylinder link

1шт.

20

1543824C1

PIN

- pivot, 5-3/4 inch

3шт.

21

1543823C1

PIN

- pivot, 10-1/8 inch

1шт.

22

1544343C1

PIN

- 1 x 3-3/8 inch

2шт.

23

439-51672

HEADED PIN,25.4mm OD x 114.3mm L

PIN - 1 x 3-3/4 inch

1шт.

24

1544338C1

PIN

- link retaining

1шт.

25

1544341C1

PIN

- 1 x 4-3/4 inch

1шт.

26

1543709C1

PIN

- pivot

1шт.

27

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, plated (43 - 47 Foot)

4шт.

27

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, plated (49 - 59 Foot)

5шт.

28

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

29

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

3шт.

30

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (43 - 47 Foot) 5/8"

14шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (49 - 59 Foot) 5/8"

16шт.

32

425-1010

NUT,5/8"-11, G5

(43 - 47 Foot) 5/8"-11, G5

13шт.

32

425-1010

NUT,5/8"-11, G5

(49 - 59 Foot) 5/8"-11, G5

15шт.

33

329-1016

NUT,1"-8, G8

2шт.

34

425-1020

NUT,1 1/4"-7, G5

- hex, 1-1/4 inch NC

2шт.

35

231-41116

NUT,1"-8, GB

NUT - lock, 1 inch

4шт.

36

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex, jam, 1-1/4 inch NC

1шт.

37

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

5шт.

38

38-32032

PIN,7.92mm OD x 50.8mm L

1шт.

39

16982R91

FITTING

- grease, 1/4 inch

2шт.

40

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

4шт.

41

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 1/4 x 45 degree

2шт.

42

425-1416

JAM NUT,Jam, 1"-8, G5

- hex, jam, 1 inch NC

1шт.

43

1543840C1

BRACKET

- mounting, right (49 - 59 foot Only)

1шт.

44

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

45

1543855C1

BRACKET

- mounting, outer right (43 - 47 foot Only)

1шт.

46

1543854C1

BRACKET

- mounting, left (49 - 59 foot Only)

1шт.

47

1543849C1

BRACKET

- mounting, outer left (43 - 47 foot Only)

1шт.
