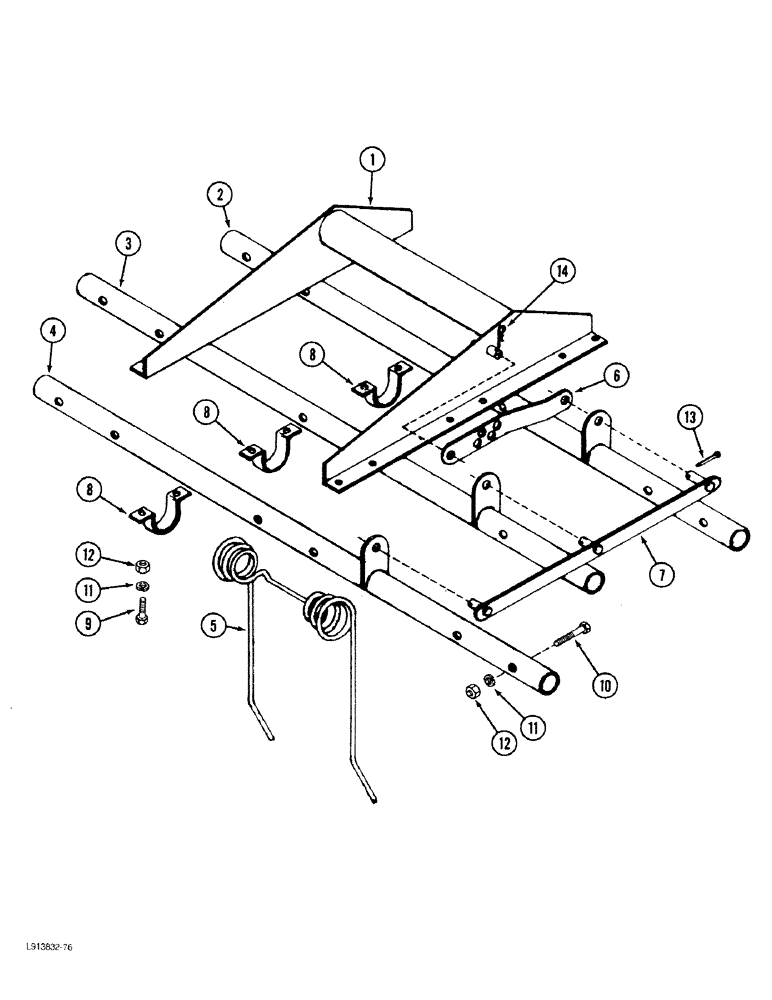

Запчасти Case IH 8100 (9B-20) - THREE BAR HARROW, 4-1/2 AND 6 FOOT (09) - CHASSIS/ATTACHMENTS

1

1543871C1

HEAD

FRAME - harrow head (4-1/2 Foot)

1шт.

1

1543872C1

HEAD

FRAME - harrow head (6 Foot)

1шт.

2

1543873C1

PIPE

- carrier, front (4-1/2 Foot)

1шт.

2

1543874C1

PIPE

- carrier, front (6 Foot)

1шт.

3

1543876C1

PIPE

- carrier, center (4-1/2 Foot)

1шт.

3

1543878C1

PIPE

- carrier, center (6 Foot)

1шт.

4

1543877C1

PIPE

- carrier, rear (4-1/2 Foot)

1шт.

4

1543879C1

PIPE

- carrier, rear (6 Foot)

1шт.

5

1544121C1

TINE

- harrow, kinked (4-1/2 Foot)

9шт.

5

1544121C1

TINE

- harrow, kinked (6 Foot)

12шт.

5

1544122C1

TINE

- harrow, straight (4-1/2 Foot)

9шт.

5

1544122C1

TINE

- harrow, straight (6 Foot)

12шт.

6

1544023C1

LEVER

- adjustment

1шт.

7

1543875C1

BAR

- connecting

1шт.

8

1544022C1

CLAMP

- pipe retaining

6шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

12шт.

10

1544120C1

BOLT

- special, 3/8 x 2 inch (4-1/2 Foot)

18шт.

10

1544120C1

BOLT

- special, 3/8 x 2 inch (6 Foot)

24шт.

11

492-11038

LOCK WASHER,3/8"

(4-1/2 Foot) 3/8"

30шт.

11

492-11038

LOCK WASHER,3/8"

(6 Foot) 3/8"

36шт.

12

425-106

NUT,3/8"-16, Cl 5

(4-1/2 Foot) 3/8"-16, G5

30шт.

12

425-106

NUT,3/8"-16, Cl 5

(6 Foot) 3/8"-16, G5

36шт.

13

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

3шт.

14

407211R1

CLIP

PIN - cotter hair

1шт.
