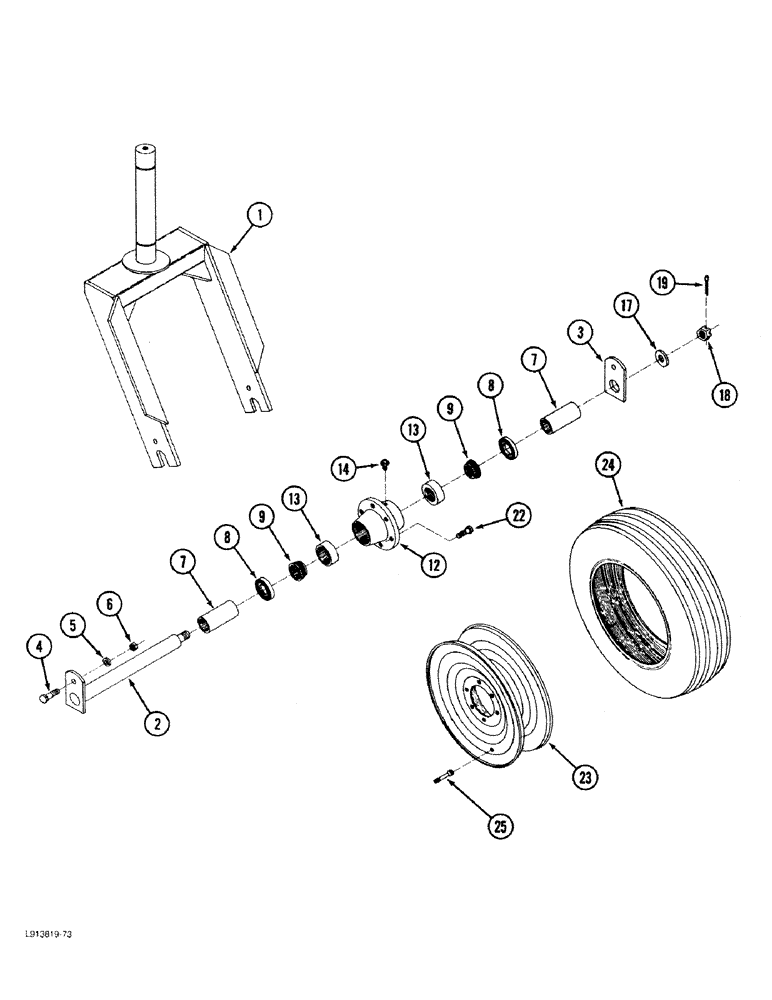

Запчасти Case IH 8100 (9B-18) - GAUGE WHEEL, WING (09) - CHASSIS/ATTACHMENTS

1

1543829C1

FORK

- castor, 3 inch

1шт.

2

1543930C1

SPINDLE

- castor fork

1шт.

3

1544017C1

PLATE

- spindle retaining

1шт.

4

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

1544042C1

SPACER

- straddle hub

2шт.

8

1544346C1

SEAL

- hub

2шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing, 1-3/8 inch ID

2шт.

12

1544113C1

HUB

- straddle

1шт.

13

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2шт.

14

16982R91

FITTING

- grease, 45 degree

1шт.

17

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

1шт.

18

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

19

32-1228

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

22

56047C1

BOLT,9/16" - 18 x 1 11/16", Class 3

STUD - wheel bolt, 9/16 x 1-11/16 inch

6шт.

23

A57879

RIM

WHEEL - 15 x 8 inch

1шт.

24

NSS

NOT SOLD SEPARAT

TIRE - wheel, 9.5L x 15 inch (Procure locally)

1шт.

25

387897R91

VALVE STEM

VALVE - tire

1шт.

1

1543803C1

FORK

- castor, 3-1/2 inch

1шт.

2

1543958C1

SPINDLE

- castor fork

1шт.

3

1544056C1

PLATE

- spindle retaining

1шт.

4

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

1544057C1

SPACER

- straddle hub

2шт.

8

N13191

OIL SEAL

- shaft

2шт.

9

25488H

ROLLER BEARING,38.1063 mm ID x 25.565 mm

CONE - bearing

2шт.

12

1544185C1

HUB

- straddle

1шт.

13

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

CUP - bearing

2шт.

14

16982R91

FITTING

- grease, 45 degree

1шт.

17

495-81291

WASHER,1 5/16" x 2 3/4" x .165"

- flat, 1-5/16 ID x 2-3/4 inch OD

1шт.

18

25-1320

SLOTTED NUT,1 1/4"-12, G5

1шт.

19

32-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

1шт.

22

56047C1

BOLT,9/16" - 18 x 1 11/16", Class 3

STUD - wheel bolt, 9/16 x 1-11/16 inch

6шт.

23

1277504C1

RIM

WHEEL - steel, 15 x 10 inch

1шт.

24

NSS

NOT SOLD SEPARAT

TIRE - wheel, 12.5L x 15 inch (Procure locally)

1шт.

Ref #24 - Use 12.5L X 15.5L 12 ply 11/22/95

1шт.

25

536705R91

VALVE

- tire inflation, 5/8 inch diameter

1шт.
