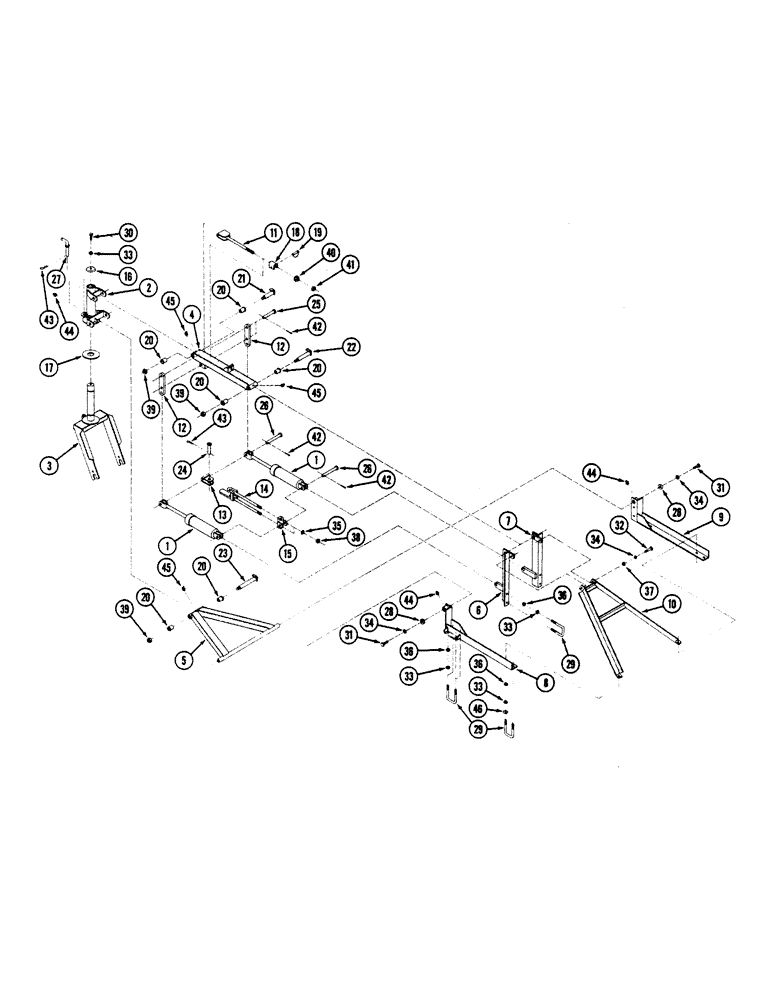

Запчасти Case IH 8100 (9B-16) - MAIN FRAME GAUGE WHEEL, CULTIVATOR (09) - CHASSIS/ATTACHMENTS

1

1543831C1

CYLINDER

- hydraulic (See Page 8-21)

2шт.

2

1543802C1

BRACKET

- center castor

1шт.

3

1543803C1

FORK

- center castor

1шт.

4

1543807C1

LINK

- upper

1шт.

5

1543800C1

LINK

- lower

1шт.

6

1543799C1

ANGLE

BRACKET - mounting, left center

1шт.

7

1543798C1

ANGLE

BRACKET - mounting, right center

1шт.

8

1543806C1

BRACKET

- mounting, left

1шт.

9

1543805C1

BRACKET

- mounting, right

1шт.

10

1543820C1

SPECIAL RING

TRUSS - center

1шт.

11

1543822C1

ROD

- adjustment

1шт.

12

1544003C1

LUG

- adjustment

2шт.

13

1543816C1

CLEVIS

- rod bracket

1шт.

14

1543815C1

ROD

BRACKET - rod

1шт.

15

1543817C1

PLATE

LUG - backing

1шт.

16

1544006C1

CAP

- 3-1/2 inch

1шт.

17

1544058C1

WASHER

WASHER - wear

1шт.

18

1543989C1

SPACER

1шт.

19

1544352C1

PIN

- 5/16 inch

1шт.

20

1544111C1

BUSHING

- nylon

6шт.

21

1543824C1

PIN

- pivot

1шт.

22

1543825C1

PIN

- pivot

1шт.

23

1543823C1

PIN

- pivot

1шт.

24

39-51690

HEADED PIN,1" x 5 5/8"

PIN - 1 x 5-3/8 inch

1шт.

25

1544339C1

PIN

- hinge, 1 inch diameter

2шт.

26

1544342C1

PIN

- 1 x 7-3/4 inch

2шт.

27

1543859C1

PIN

- lock, castor

1шт.

28

1544014C1

WASHER

- cap

2шт.

29

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

- 5/8 inch NC, plated

8шт.

30

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

31

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

32

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

33

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

17шт.

34

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

35

492-11100

LOCK WASHER,1"

1"

2шт.

36

425-1010

NUT,5/8"-11, G5

16шт.

37

425-1012

NUT,3/4"-10, G5

2шт.

38

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

39

231-41116

NUT,1"-8, GB

NUT - lock, 1 inch

3шт.

40

1543708C1

NUT

- adjustment

1шт.

41

425-1416

JAM NUT,Jam, 1"-8, G5

- hex, jam, 1 inch NC

1шт.

42

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

4шт.

43

407210R1

CLIP

PIN - cotter, 3/16 inch

2шт.

44

16982R91

FITTING

- grease, 1/4 inch

1шт.

45

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

3шт.

46

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

4шт.
