(9B-12) - HITCH, 43 THRU 47 AND 49 THRU 59 FOOT

Запчасти Case IH 8100 (9B-12) - HITCH, 43 THRU 47 AND 49 THRU 59 FOOT (09) - CHASSIS/ATTACHMENTS

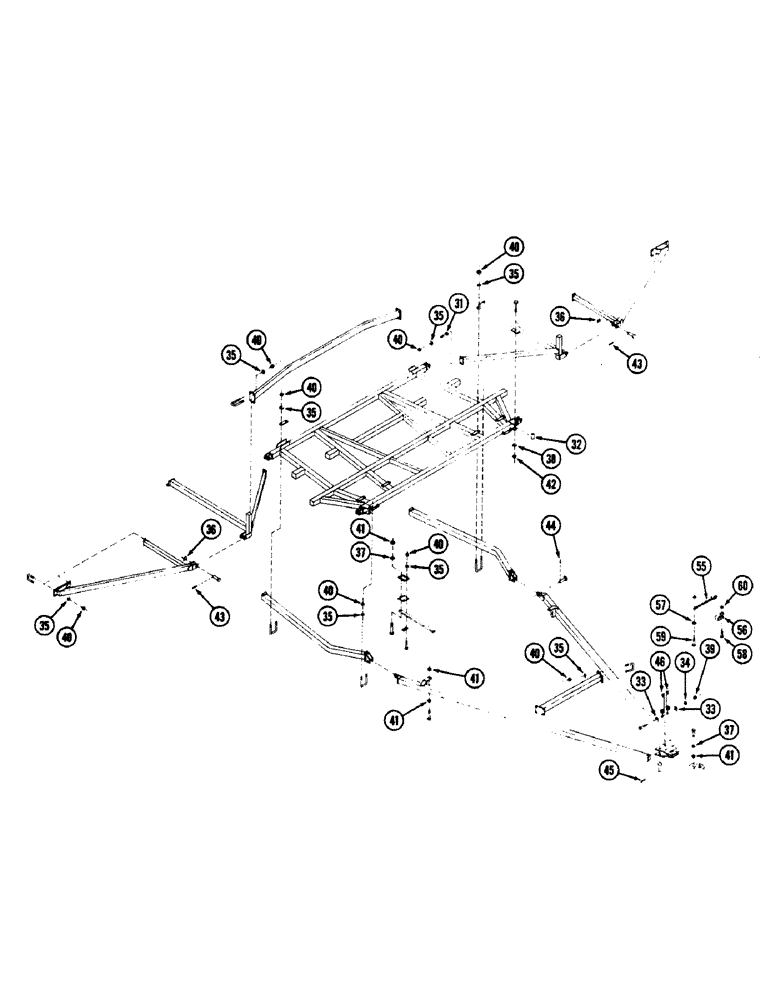

Схема запчастей Case IH 8100 - (9B-12) - HITCH, 43 THRU 47 AND 49 THRU 59 FOOT (09) - CHASSIS/ATTACHMENTS
41
34
43
38
57
35
60
35
56
35
31
36
40
35
44
35
33
59
40
40
58
41
40
40
40
39
33
40
48
37
35
37
41
35
55
43
46
35
41
32
36
42
45
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

31

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT - round head square neck, 5/8 NC x 1-3/4 inch

4шт.

32

1544015C1

BUSHING

- spacer, 4 inch

2шт.

33

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

2шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

35

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

48шт.

36

96-81012

WASHER,1.25" ID x 2.25" OD x 0.18" Thk

- flat, 1-1/4 x 2-1/2 x 1/4 inch

2шт.

37

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

38

492-11088

LOCK WASHER,7/8"

7/8"

2шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

40

425-1010

NUT,5/8"-11, G5

48шт.

41

425-1012

NUT,3/4"-10, G5

8шт.

42

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

43

38-32432

PIN,3/8" x 2", Coiled

2шт.

44

38-32032

PIN,7.92mm OD x 50.8mm L

2шт.

45

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

46

651793R2

SUPPORT

HOLDER - hose

2шт.

55

63506C3

CHAIN (AG)

CHAIN - safety

1шт.

56

1279163C1

CLEVIS COUPLING

CLEVIS - chain

1шт.

57

822395C1

BAR

WASHER - retainer

1шт.

58

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

1шт.

59

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

60

231-4118

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch

1шт.
