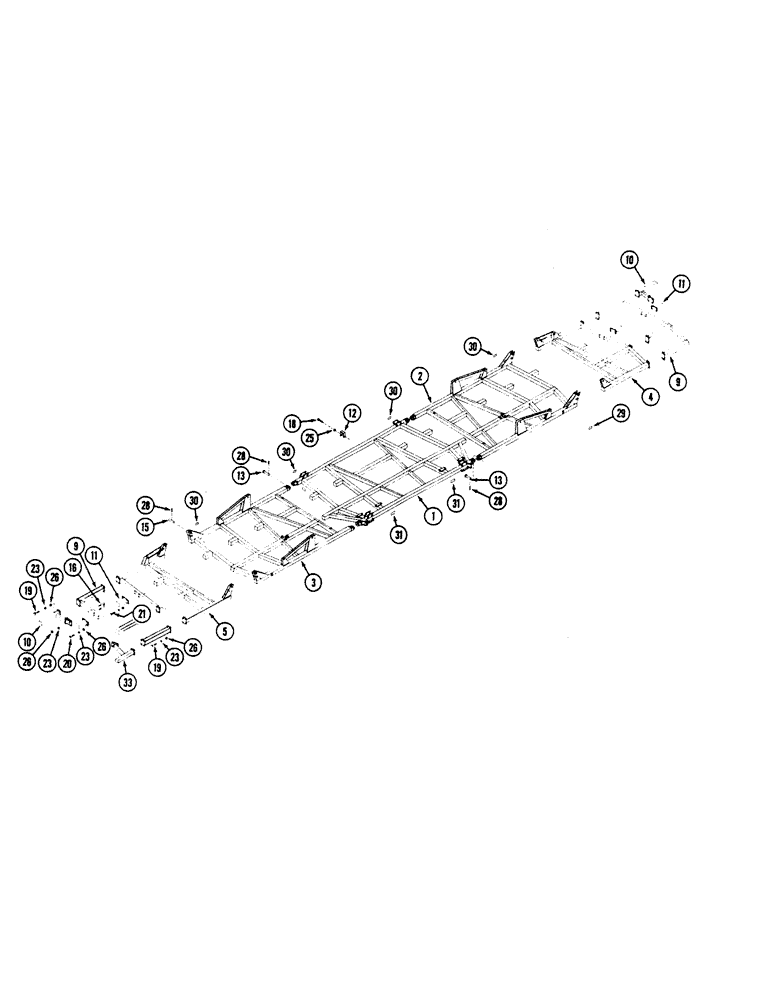

Запчасти Case IH 8100 (9B-06) - MAIN FRAME, CULTIVATOR, 49 THRU 59 FOOT (09) - CHASSIS/ATTACHMENTS

1

1543778C1

FRAME

- main

1шт.

2

1543783C1

FRAME

- left inner wing

1шт.

3

1543784C1

FRAME

- right inner wing

1шт.

4

1543781C1

FRAME

- left outer wing

1шт.

5

1543782C1

FRAME

- right outer wing

1шт.

9

1543770C1

EXTENSION

FRAME - extension, 36 inch

2шт.

10

1543792C1

EXTENSION

STUB - rear extension, 24 inch

2шт.

11

1543769C1

EXTENSION

STUB - extension, 12 inch

2шт.

12

1543978C1

BRACKET

- SMV

1шт.

13

1543853C1

PIN

- hinge, 1-1/2 x 4-1/8 inch

4шт.

15

1543997C1

PIN

- 1-1/4 x 4 inch

4шт.

16

1543995C1

U-BOLT,5/8" - 11 x 4 21/32" W x 4 3/8" L

- 5/8 inch

4шт.

18

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- hex, 1/4 NC x 4-1/2 inch

1шт.

19

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

32шт.

20

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

21

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

62шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch

1шт.

26

425-1010

NUT,5/8"-11, G5

28шт.

28

38-32440

PIN,3/8" x 2 1/2", Coiled

4шт.

29

1284365C1

REFLECTOR,Reflector Amber

- amber

4шт.

30

1284374C1

REFLECTOR,Reflector Red

- red

4шт.

33

1543774C1

FRAME

STUB - front extension, 24 inch (If equipped)

2шт.
