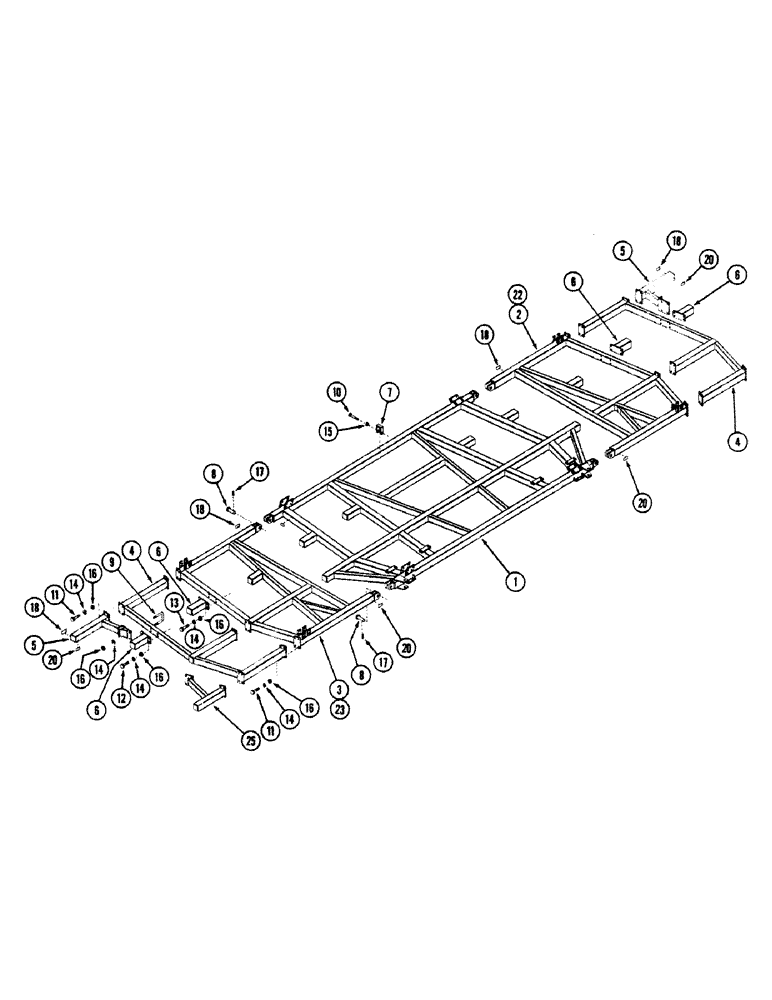

Запчасти Case IH 8100 (9B-02) - MAIN FRAME, CULTIVATOR, 25 THRU 35 AND 31 THRU 41 FOOT (09) - CHASSIS/ATTACHMENTS

1

1543778C1

FRAME

- main

1шт.

2

1543773C1

FRAME

- left wing (Used with 25 - 35 foot frame)

1шт.

3

1543775C1

FRAME

- right wing (Used with 25 - 35 foot frame)

1шт.

4

1543770C1

EXTENSION

FRAME - extension, 36 inch

2шт.

5

1543792C1

EXTENSION

STUB - rear extension, 24 inch

1шт.

6

1543769C1

EXTENSION

STUB - extension, 12 inch

4шт.

7

1543978C1

BRACKET

- SMV

1шт.

8

1543853C1

PIN

- hinge, 1-1/2 x 4-1/8 inch

4шт.

9

1543995C1

U-BOLT,5/8" - 11 x 4 21/32" W x 4 3/8" L

- 5/8 inch

4шт.

10

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- hex, 1/4 NC x 4-1/2 inch

1шт.

11

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

32шт.

12

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

13

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

8шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

56шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch

1шт.

16

425-1010

NUT,5/8"-11, G5

56шт.

17

38-32440

PIN,3/8" x 2 1/2", Coiled

4шт.

18

1284374C1

REFLECTOR,Reflector Red

- red

4шт.

20

1284365C1

REFLECTOR,Reflector Amber

- amber

4шт.

22

1543762C1

FRAME

- left wing (Used with 31 - 41 foot frame)

1шт.

23

1543763C1

FRAME

- right wing (Used with 31 - 41 foot frame)

1шт.

25

1543774C1

FRAME

STUB - front extension, 24 inch (If equipped)

2шт.
