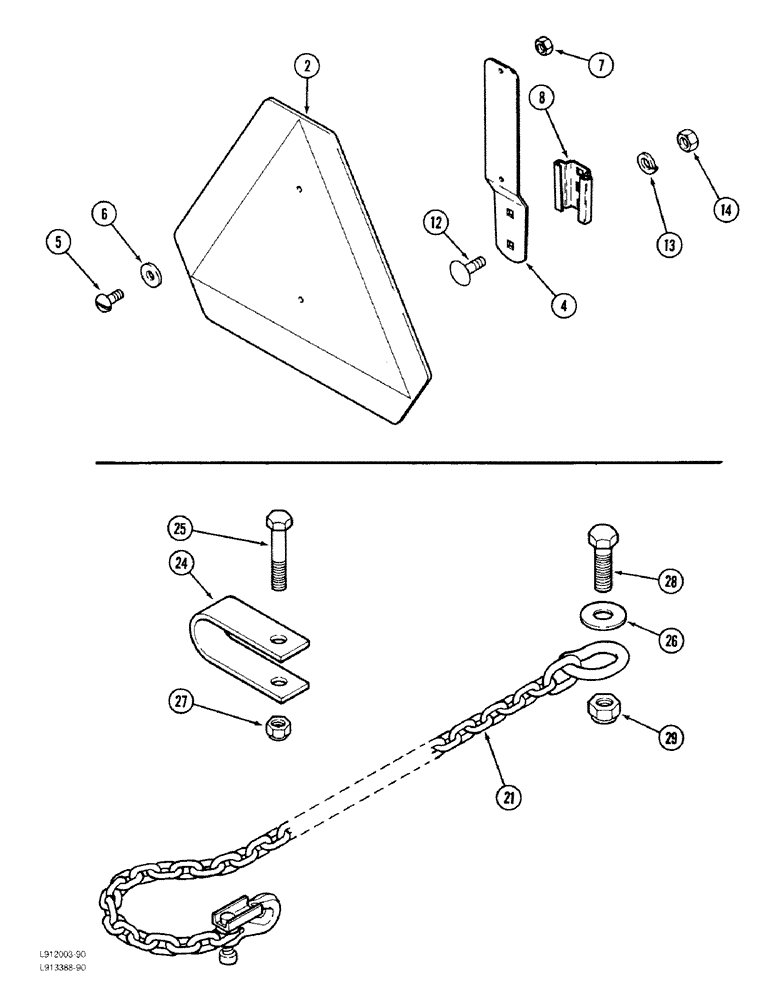

Запчасти Case IH 8100 (9A-32) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

407220R1

PRODUCT GRAPHIC

KIT - slow moving vehicle

1шт.

2

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle

1шт.

321-4311

DECAL

- SMV emblem (See Section 9B)

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - emblem support

1шт.

5

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

6

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

7

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

2шт.

8

398976R1

BRACKET

- SMV emblem mounting

1шт.

12

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

21

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety, 5/16 link x 59-1/4 inch

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, safety chain

1шт.

24

148558C1

CLEVIS

- safety chain

1шт.

25

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Safety chain Hex, 5/8"-11 x 3 1/2", G5

1шт.

26

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch SAFETY CHAIN

1шт.

27

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC SAFETY CHAIN

1шт.

28

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch SAFETY CHAIN

1шт.

29

22244R1

LOCK NUT

- hex lock, 3/4 inch NC SAFETY CHAIN

1шт.
