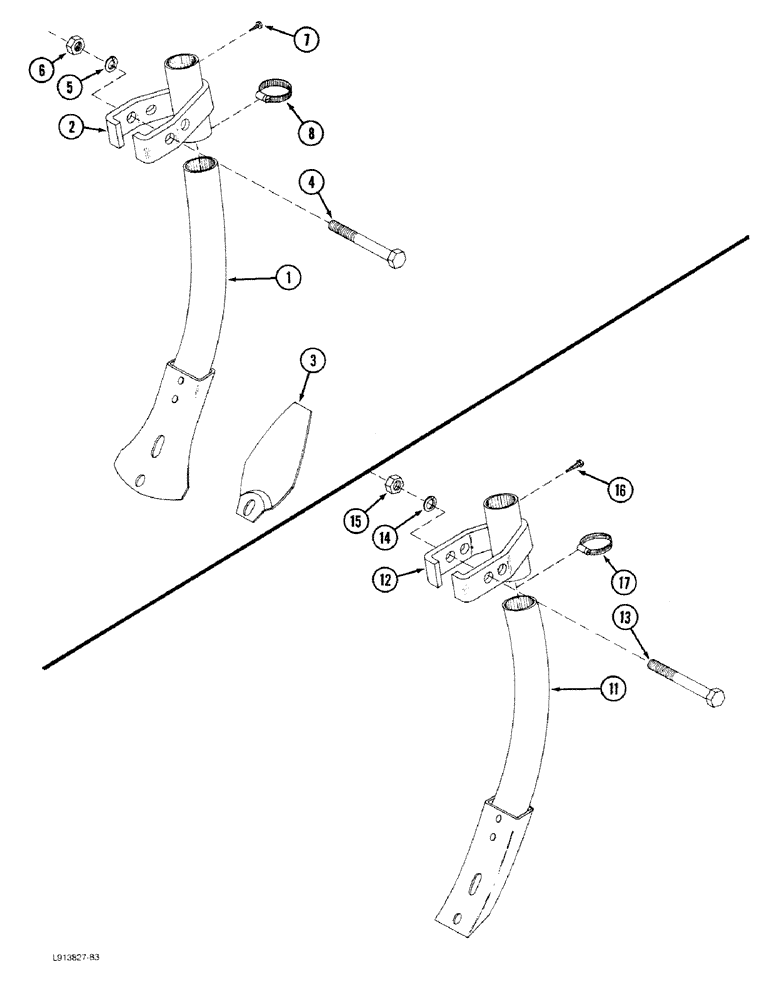

Запчасти Case IH 8100 (9A-30) - SEEDING BOOT KIT (09) - CHASSIS/ATTACHMENTS

1543899C1

KIT

- seeding boot (Machinery Item)

1шт.

1

1543898C1

BOOT

- seeding

1шт.

2

1543896C1

BAND

- boot union

1шт.

3

1544027C1

PLATE

- back, seeding boot

1шт.

4

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Grade 8

1шт.

7

275-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex, slotted

1шт.

8

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, #20, 0.81/1.75 Type F Worm

1шт.

1543897C1

KIT - boot banding (Machinery Item)

1шт.

11

1543895C1

BOOT

- banding KIT

1шт.

12

1543896C1

BAND

- boot union KIT

1шт.

13

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Boot Banding Kit Hex, 5/16"-18 x 2 3/4", G5

1шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Boot Banding Kit 5/16"

1шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Grade 8, BOOT BANDING KIT

1шт.

16

275-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex, slotted BOOT BANDING KIT

1шт.

17

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Boot Banding Kit #20, 0.81/1.75 Type F Worm

1шт.
