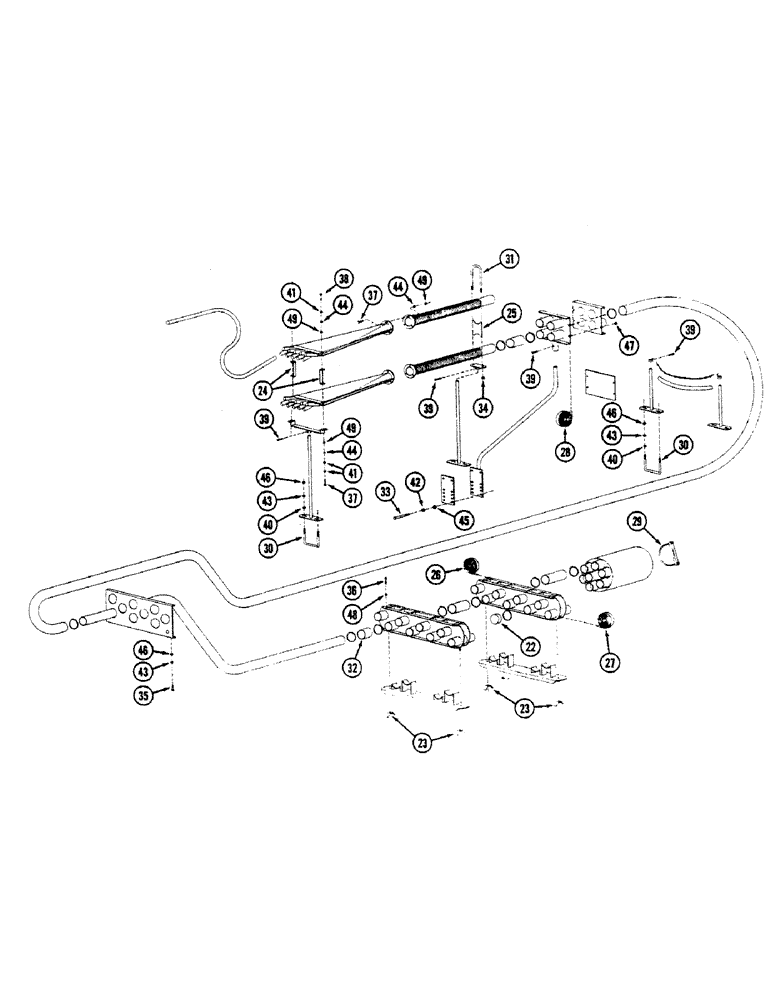

Запчасти Case IH 8100 (9A-28) - DOUBLE SHOOT, RUNS 21 THRU 30, 31 THRU 40, 41 THRU 50 (09) - CHASSIS/ATTACHMENTS

22

1544126C1

CAP

- plastic (130 bushel machines) (21-30 Runs) (31-40 Runs, use 1)

5шт.

22

1544126C1

CAP

- plastic (180 bushel machines) (21-30 Runs) (31-40 Runs, use 5) (41-50 Runs, use 1)

9шт.

23

1544028C1

LOCK NUT

NUT - lock

4шт.

24

1544035C1

BRACKET

- front (21-30 Runs) (31-40 Runs, use 8) (41-50 Runs, use 10)

6шт.

25

1543909C1

SPACER

- divider (21-30 Runs) (31-40 Runs, use 4) (41-50 Runs, use 5)

3шт.

26

1544132C1

SEAL

- 1/4 x 1 inch, Serial Range: (Cut-length)

1шт.

27

1544187C1

SEAL

- strip, 3/8 x 1 inch, Serial Range: (Cut-length)

1шт.

28

1544173C1

SEAL

- strip, 1/16 x 6-1/2 inch, Serial Range: (Cut-length)

1шт.

29

1544133C1

CLAMP

- 6 inch diameter

1шт.

30

1544131C1

U-BOLT,3/8" - 16 x 4 3/8" W x 5" L

- 4 inch (21-30 Runs) (31-40 Runs, use 10) (41-50 Runs, use 12)

8шт.

30

1544130C1

U-BOLT,3/8" - 16 x 2 3/8" W x 5" L

- 2 inch (21-30 Runs) (31-40 Runs, use 8) (41-50 Runs, use 10)

6шт.

31

1544129C1

U-BOLT,1/4" - 20, Round, 2-13/16" W, 3" L

- 2-1/2 inch (21-30 Runs) (31-40 Runs, use 4) (41-50 Runs, use 5)

3шт.

32

86993497

HOSE,2.50" ID

1978964C1 Sold by the Foot 2.50" ID

6шт.

33

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch (41-50 Runs, use 12)

8шт.

34

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(31-40 Runs, use 8) (41-50 Runs, use 10) Flg, USR, 1/4"-20

6шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

16шт.

37

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch (21-30 Runs) (31-40 Runs, use 32) (41-50 Runs, use 40)

24шт.

38

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch (21-30 Runs) (31-40 Runs, use 8) (41-50 Runs, use 10)

6шт.

39

485-12512

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

SCREW - set, square head cup point, 1/4 NC x 3/4 inch (21-30 Runs) (31-40 Runs, use 12) (41-50 Runs, use 15)

10шт.

40

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

(21-30 Runs) (31-40 Runs, use 20) (41-50 Runs, use 24) 3/8" x 1" x .063"

16шт.

41

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch (21-30 Runs) (31-40 Runs, use 24) (41-50 Runs, use 30)

18шт.

42

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (41-50 Runs, use 12) 1/2"

8шт.

43

492-11038

LOCK WASHER,3/8"

(21-30 Runs) (31-40 Runs, use 22) (41-50 Runs, use 36) 3/8"

18шт.

44

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (21-30 Runs) (31-40 Runs, use 40) (41-50 Runs, use 50) 1/4"

30шт.

45

329-108

NUT,1/2"-13, G8

(41-50 Runs, use 12) 1/2"-13, G8

8шт.

46

329-106

NUT,3/8"-16, G8

(21-30 Runs) (31-40 Runs, use 22) (41-50 Runs, use 26) 3/8"-16, G8

18шт.

47

231-5146

FLANGE NUT,3/8"-16

(21-30 Runs) (31-40 Runs, use 10) (41-50 Runs, use 12) Flg, USR, 3/8"-16

8шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

16шт.

49

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch (21-30 Runs) (31-40 Runs, use 40) (41-50 Runs, use 50)

30шт.
