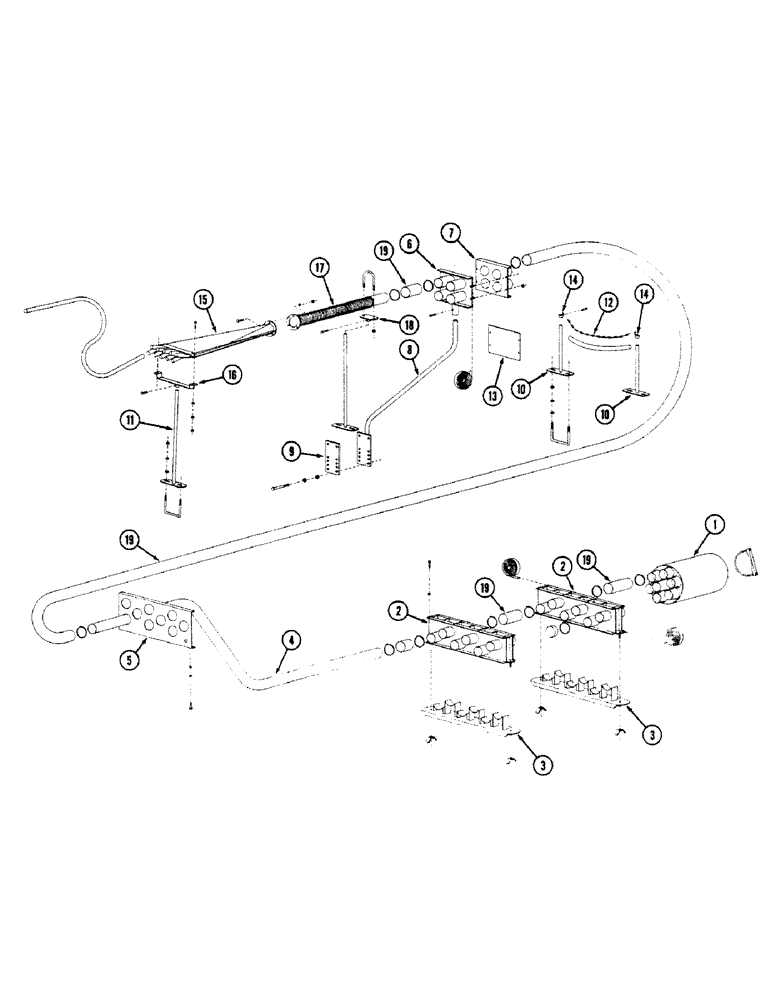

Запчасти Case IH 8100 (9A-20) - SINGLE SHOOT, RUNS 21 THRU 30, 31 THRU 40, 41 THRU 50, 51 THRU 60, 61 THRU 70, 71 THRU 80 (09) - CHASSIS/ATTACHMENTS

1

1543911C1

GATHERER

PLENUM - 7 outlet (Shown) (130 bushel machines) (Not used with 61-70 Runs and 71-80 Runs)

1шт.

1

1543912C1

GATHERER

PLENUM - 9 outlet (Not Shown) (180 bushel machines) (61-70 Runs and 71-80 Runs)

1шт.

2

1543920C1

SPECIAL RING

COLLECTOR - 6 outlet (Shown) (130 bushel machines) (Not used with 61-70 Runs and 71-80 Runs)

2шт.

2

1547604C1

SPECIAL RING

COLLECTOR - 8 outlet (Not Shown) (180 bushel machines)

2шт.

3

1543947C1

COVER

DOOR - collector cleanout, 6 outlet (130 bushel machines) (Not used with 61-70 Runs and 71-80 Runs)

2шт.

3

1547605C1

COVER

DOOR - collector cleanout, 8 outlet (180 bushel machines)

2шт.

4

1544081C1

TUBE

- 2-1/2 x 85 inch (21-30 Runs) (31-40 Runs, use 4) (41-50 Runs, use 5) (51-60 Runs, use 6) (61-70 Runs, use 7) (71-80 Runs, use 8)

3шт.

5

1544062C1

PLATE

- mounting (Shown) (130 bushel machines) (Not used with Runs 61-70 and 71-80)

1шт.

5

1544063C1

PLATE

- mounting (Not Shown) (180 bushel machines)

1шт.

6

1543953C1

COUPLING

COUPLER - hose (Runs 21-30, 31-40) (Quantity of 2 for 41-50 Runs, 51-60, 61-70 and 71-80)

1шт.

7

1543954C1

COUPLING

COUPLER - hose (Quantity of 2 for 41-50 Runs, 51-60, 61-70 and 71-80)

1шт.

8

1543957C1

BASE

- hose coupler (Quantity of 2 for 41-50 Runs, 51-60, 61-70 and 71-80)

1шт.

9

1544055C1

PLATE

- mounting

2шт.

10

1543901C1

SUPPORT

- short

2шт.

11

1543963C1

SUPPORT

- long (Runs 21-30) (31-40 Runs, use 8) (41-50 Runs, use 10) (51-60 Runs, use 12) (61-70 Runs, use 14) (71-80 Runs, use 16)

6шт.

12

NSS

NOT SOLD SEPARAT

CHAIN - 80 links (Procure locally)

1шт.

13

1544064C1

BLANK-OFF PLUG

COVER - blank off (21-30 Runs, 31-40 Runs) (Quantity of 4 for 41-50 Runs, 51-60, 61-70 and 71-80)

2шт.

14

1543965C1

HOOK

- chain

2шт.

15

1543955C1

DIVIDER

DIFFUSER - 10 outlet

1шт.

15

1543905C1

DIVIDER

DIFFUSER - 9 outlet

1шт.

15

1543906C1

DIVIDER

DIFFUSER - 8 outlet

1шт.

15

1543903C1

DIVIDER

DIFFUSER - 7 outlet

1шт.

16

1543956C1

BRACKET

- mounting, 10 outlet

1шт.

16

1543908C1

SUPPORT

BRACKET - mounting, 9 outlet

1шт.

16

1543902C1

SUPPORT

BRACKET - mounting, 8 outlet

1шт.

16

1543907C1

SUPPORT

BRACKET - mounting, 7 outlet

1шт.

17

1543904C1

PIPE

- divider, diffuser (Runs 21-30) (31-40 Runs, use 4) (41-50 Runs, use 5) (51-60 Runs, use 6) (61-70 Runs, use 7) (71-80 Runs, use 8)

3шт.

18

1543900C1

SUPPORT

- rear (21-30 Runs) (31-40 Runs, use 4) (41-50 Runs, use 5) (51-60 Runs, use 6) (61-70 Runs, use 7) (71-80 Runs, use 8)

3шт.

19

1978963C1

HOSE

- 2-1/2 inch diameter (Cut to length) (21-30 Runs, 75 foot) (31-40 Runs, 100 foot) (41-50 Runs, 125 foot) (51-60 Runs, 150 foot) (61-70 Runs, 175 foot) (71-80 Runs, 200 foot)

1шт.
