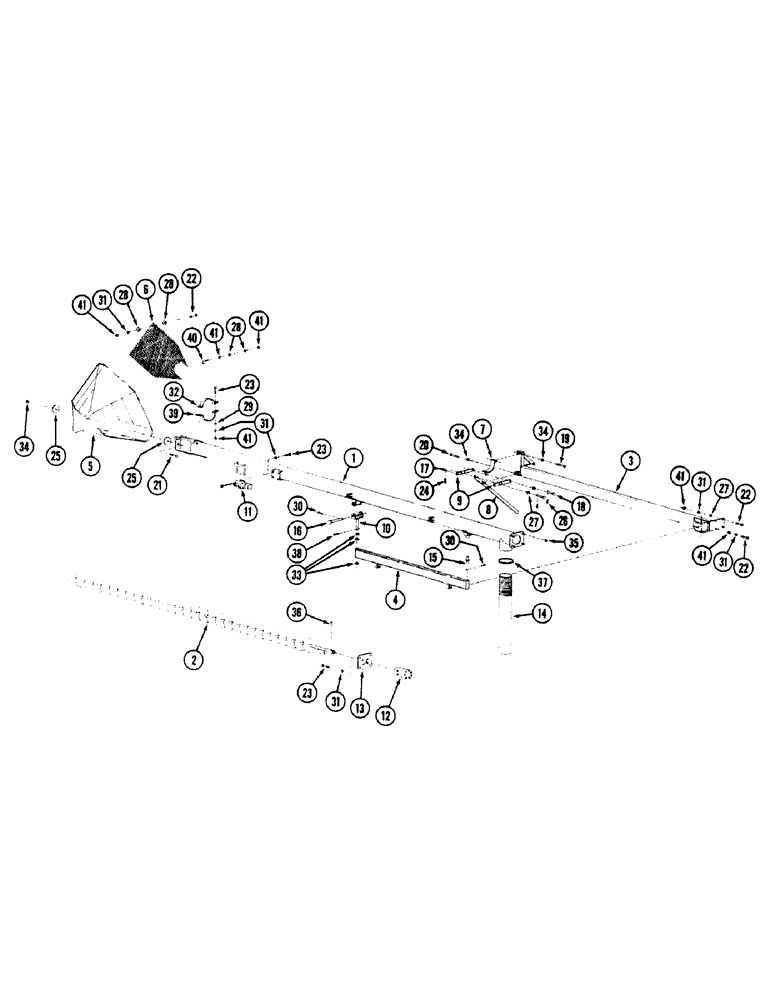

Запчасти Case IH 8100 (9A-18) - AUGER (09) - CHASSIS/ATTACHMENTS

1

1543936C1

HOUSING

- auger

1шт.

2

1543937C1

STEEL FLIGHT

AUGER - air seeder

1шт.

3

1543969C1

MOUNTING PARTS

MOUNTING - auger

1шт.

4

1543931C1

ARM

- auger

1шт.

5

1544037C1

HOPPER

- auger, 7 inch

1шт.

6

1544069C1

SCREEN

- hopper

1шт.

7

1543968C1

CRADLE

- auger

1шт.

8

1543967C1

HANDLE

- auger cradle

1шт.

9

1544071C1

LINK

- auger cradle

2шт.

10

1543932C1

SADDLE

- auger pivot

1шт.

11

1544128C1

CONTROL

VALVE - control (Serviced as a complete assembly)

1шт.

12

1544135C1

MOTOR, HYDRAULIC

MOTOR - orbit (Serviced as a complete assembly)

1шт.

1544142C1

SEAL KIT

SEAL KIT - orbit motor (Not Shown)

1шт.

13

1544189C1

DECAL

PLATE - mounting

1шт.

14

1544190C1

SPOUT, DISCHARGE

SPOUT - auger

1шт.

Note - Std. Eq. Mud Scrapers are for 180 Bushel, 1544439C1. Optional Eq. 130 Bushel 1544438C1 11/22/95

1шт.

15

1543970C1

PIN

- 1 x 5 inch

1шт.

16

39-51690

HEADED PIN,1" x 5 5/8"

PIN - 1 x 4-3/4 inch

1шт.

17

1543971C1

PIN

- lock, 1/2 x 1 inch

1шт.

18

427-8150

CLEVIS PIN,1/2" x 1 1/2"

1/2X1.500 1.281 HD/HOLE CLEVIS ZND

2шт.

19

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

20

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

21

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-3/4 inch

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

12шт.

23

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

24

407211R1

CLIP

PIN - clip

1шт.

25

1544036C1

WASHER

- flat

2шт.

26

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

27

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

6шт.

28

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch

8шт.

29

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

30

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

2шт.

31

492-11038

LOCK WASHER,3/8"

20шт.

32

1544076C1

CLAMP

STRAP - clamp

1шт.

33

495-81082

WASHER,1 3/32" x 1 1/2" x .120"

- flat

3шт.

34

231-4118

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch

3шт.

35

231-5146

FLANGE NUT,3/8"-16

4шт.

36

38-32024

PIN,5/16" x 1 1/2", Coiled

1шт.

37

1544402C1

CLAMP

- hose, 8 inch diameter

1шт.

38

38-32032

PIN,7.92mm OD x 50.8mm L

1шт.

39

1544077C1

CLAMP

STRAP - clamp

1шт.

40

1544030C1

SPECIAL BOLT,J, 3/8" x 1 3/4"

BOLT - J, 3/8 x 2 inch

2шт.

41

329-106

NUT,3/8"-16, G8

16шт.
