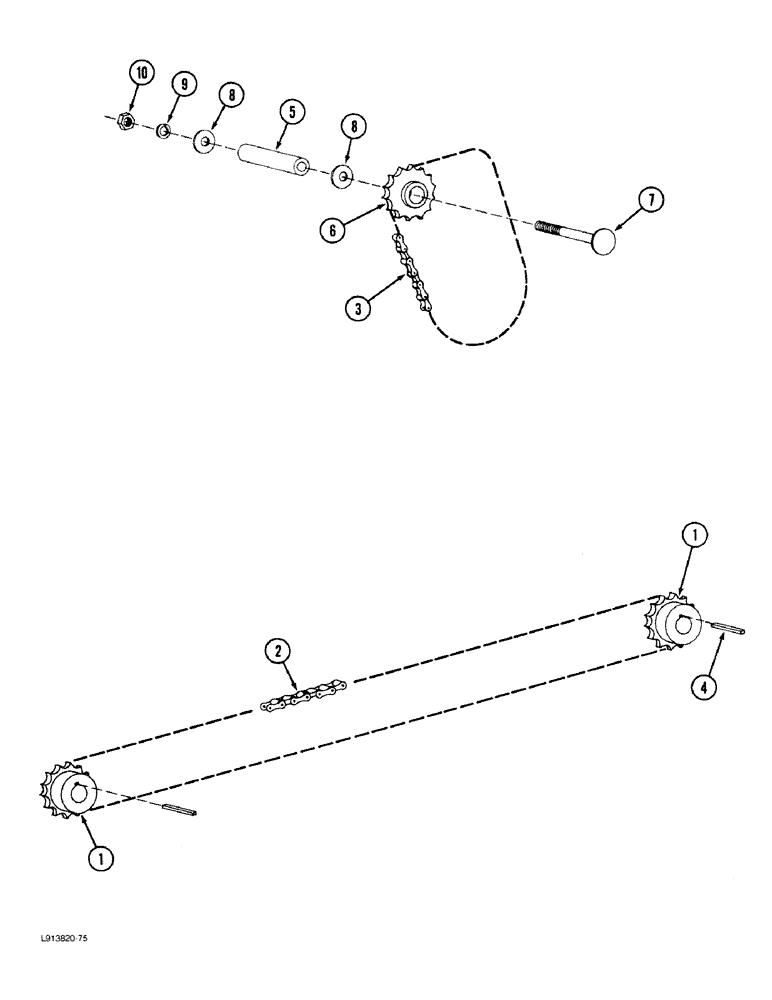

Запчасти Case IH 8100 (9A-16) - METER SHAFT COUPLING KIT (09) - CHASSIS/ATTACHMENTS

1543921C1

KIT - meter shaft coupling (Machinery Item)

1шт.

1

1544179C1

SPROCKET ASSY.

SPROCKET - meter shaft coupling, 40 B 18

2шт.

2

1790D

CHAIN (AG)

CHAIN - No. 40 x 178 links (10 foot roll)

1шт.

2

1790D

CHAIN (AG)

CHAIN - No. 40 x 58 links (10 foot roll)

1шт.

1302D

LINK

- roller, No. 40 chain

1шт.

1303D

LINK

- offset, No. 40 chain

1шт.

1301D

CHAIN LINK

LINK - connecting, No. 40 chain

1шт.

4

Q26

KEY,1/4" Sq x 1 1/4", Par

- square parallel, 1/4 X l-1/4 inch

2шт.

5

1544061C1

BUSHING

- coupling sprocket

1шт.

6

1544116C1

FRONT IDLER

IDLER - nylon

1шт.

7

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 3-1/2 inch

1шт.

8

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

329-106

NUT,3/8"-16, G8

1шт.
