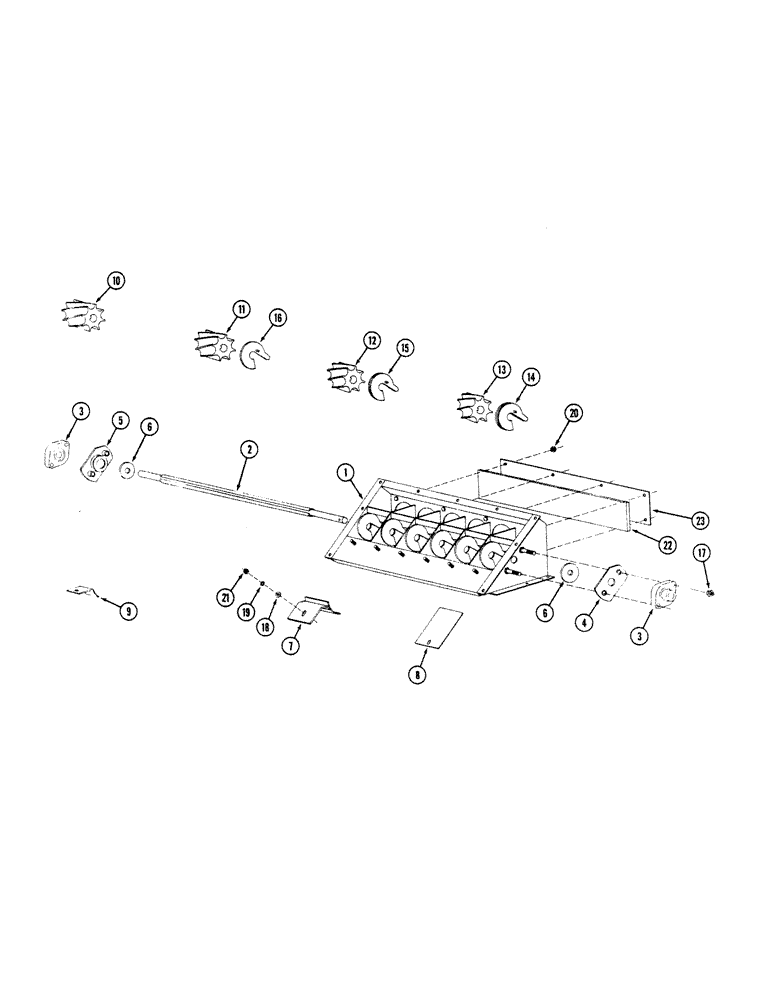

Запчасти Case IH 8100 (9A-14) - METERING CUP (09) - CHASSIS/ATTACHMENTS

1

1543961C1

CUP

- metering (130 bushel machines)

1шт.

1

1547602C1

CUP

- metering (180 bushel machines)

1шт.

2

1544038C1

SHAFT

- metering (130 bushel machines)

1шт.

2

1547603C1

SHAFT

- metering (180 bushel machines)

1шт.

3

1544350C1

FLANGED BEARING

BEARING ASSEMBLY - shaft

2шт.

4

1543943C1

BRACKET

MOUNT - bearing, left

1шт.

5

1543944C1

BRACKET

MOUNT - bearing, right

1шт.

6

1544050C1

SEAL

- neoprene

2шт.

7

1543916C1

SLIDER

- metering cup

1шт.

8

1544054C1

COVER

- metering cup

1шт.

9

1544039C1

GAUGE

- meter wheel feeler

1шт.

10

1544195C1

WHEEL

- 10 run metering cup

1шт.

11

1544196C1

WHEEL

- 9 run metering cup

1шт.

12

1544197C1

WHEEL

- 8 run metering cup

1шт.

13

1544198C1

WHEEL

- 7 run metering cup

1шт.

14

1543919C1

SPACER

- wheel, 7 run metering cup

1шт.

15

1543918C1

SPACER

- wheel, 8 run metering cup

1шт.

16

1543917C1

SPACER

- wheel, 9 run metering cup

1шт.

17

231-1416

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC

4шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

1шт.

21

1544356C1

NUT

- hex, stainless steel, 5/16 inch

1шт.

22

1544211C1

SEALING STRIP

- strip, 3/8 x 3-1/2 inch, Serial Range: (Cut-length)

1шт.

23

1544078C1

PLATE

- cover (130 bushel machines)

1шт.

23

1547614C1

COVER

PLATE - cover (180 bushel machines)

1шт.
