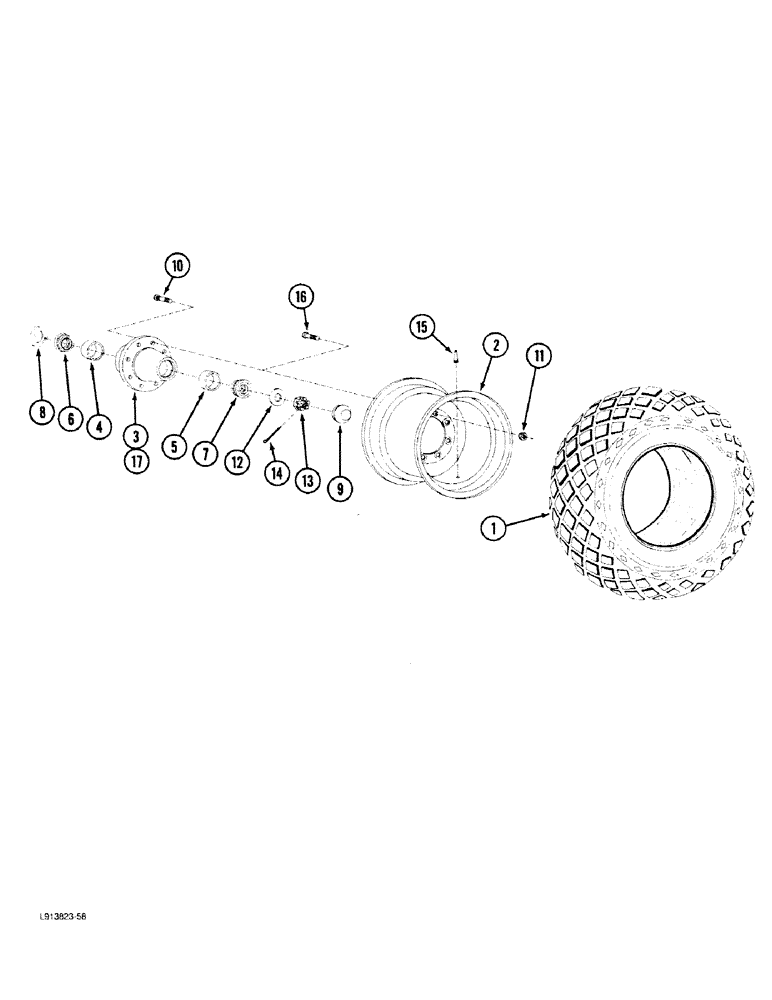

Запчасти Case IH 8100 (9A-06) - WHEEL AND HUB, HOPPER, DRIVE AND NON-DRIVE (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

TIRE - 16.5 x 16.1, 6 ply, (130 bushel machines)

1шт.

1

NSS

NOT SOLD SEPARAT

TIRE - 21.5 x 16.1, 6 ply, (180 bushel machines)

1шт.

2

1270628C1

RIM

WHEEL - rim, 16 x 14 (For 16.5 x 16.1 tire) (Used with 130 bushel machines)

1шт.

2

386078R92

RIM

WHEEL - rim, 8 hole (For 21.5 x 16.1 tire) (Used with 180 bushel machines)

1шт.

3

1544175C1

HUB

ASSEMBLY - drive wheel (Includes Ref 4, 5 and 10)

1шт.

4

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP - bearing inner, pinion shaft, 3-13/16 inch

1шт.

5

663558R1

BEARING CUP

CUP - bearing inner, 2-57/64 inch OD

1шт.

6

327195R91

BEARING ASSY,2.25" ID x 3.8125" OD x 0.8268"

CONE - bearing inner

1шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing outer

1шт.

8

1544348C1

SEAL

- shaft

1шт.

9

1544347C1

CAP

- dust

1шт.

10

1337428C1

BOLT

- 5/8 x 2-1/2 inch

8шт.

11

1337446C1

NUT

- tapered, 5/8 inch

8шт.

12

495-81291

WASHER,1 5/16" x 2 3/4" x .165"

- flat, 1-5/16 ID x 2-3/4 inch OD

1шт.

13

25-1320

SLOTTED NUT,1 1/4"-12, G5

1шт.

14

32-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

1шт.

15

387897R91

VALVE STEM

STEM ASSEMBLY - valve

1шт.

17

1544174C1

HUB

ASSEMBLY - non drive wheel (Includes Ref 4, 5 and 10)

1шт.

1

NSS

NOT SOLD SEPARAT

TIRE - 16.5 x 16.1, 6 ply, (130 bushel machines)

1шт.

1

NSS

NOT SOLD SEPARAT

TIRE - 21.5 x 16.1, 6 ply, (180 bushel machines)

1шт.

2

1270628C1

RIM

WHEEL - rim, 16 x 14 (For 16.5 x 16.1 tire) (Used with 130 bushel machines)

1шт.

2

386078R92

RIM

WHEEL - rim, 8 hole (For 21.5 x 16.1 tire) (Used with 180 bushel machines)

1шт.

11

1337446C1

NUT

- tapered, 5/8 inch

8шт.

15

387897R91

VALVE STEM

STEM ASSEMBLY - valve

1шт.

16

428-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 8

- hex, 5/8 x 2 inch

8шт.
