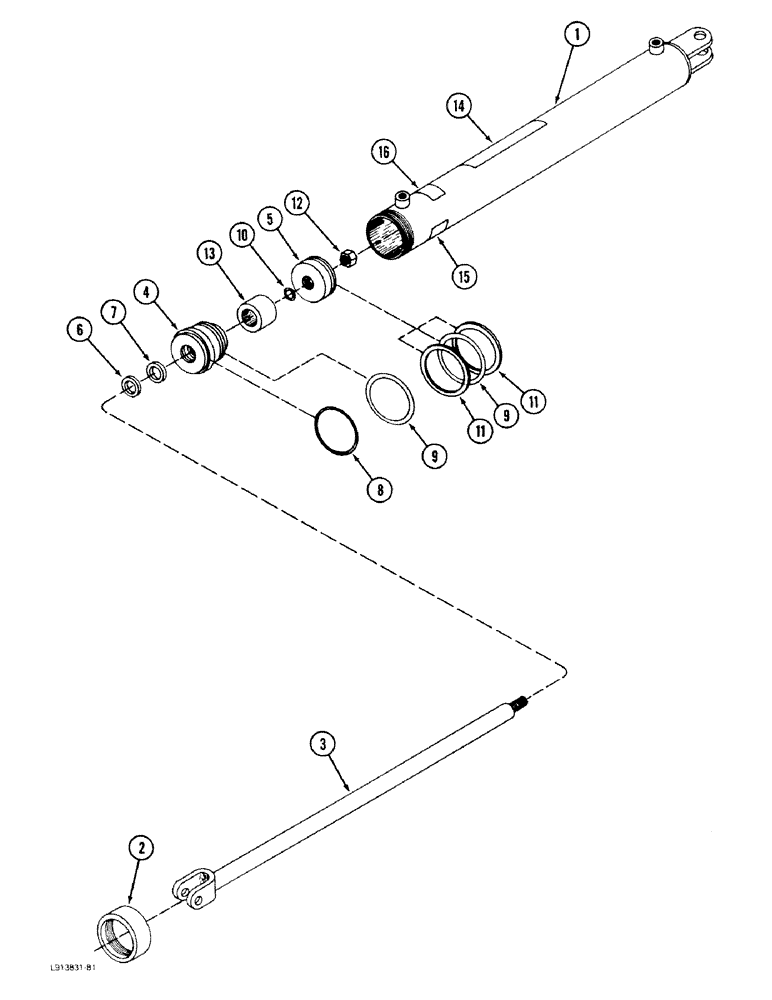

Запчасти Case IH 8100 (8-24) - WING LIFT CYLINDER, 4 X 18 INCH (08) - HYDRAULICS

1543790C1

CYLINDER

- wing lift, 4 x 18 inch

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder barrel

1шт.

2

NSS

NOT SOLD SEPARAT

COLLAR - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

1543703C1

SEAL KIT

- seal repair

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - shaft

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - gland collar

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - cylinder, large

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - cylinder, small

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

12

NSS

NOT SOLD SEPARAT

NUT - lock retaining

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - cylinder gland

1шт.

14

NSS

NOT SOLD SEPARAT

DECAL - caution

1шт.

15

NSS

NOT SOLD SEPARAT

DECAL - maintenance information

1шт.

16

NSS

NOT SOLD SEPARAT

DECAL - part number information

1шт.
