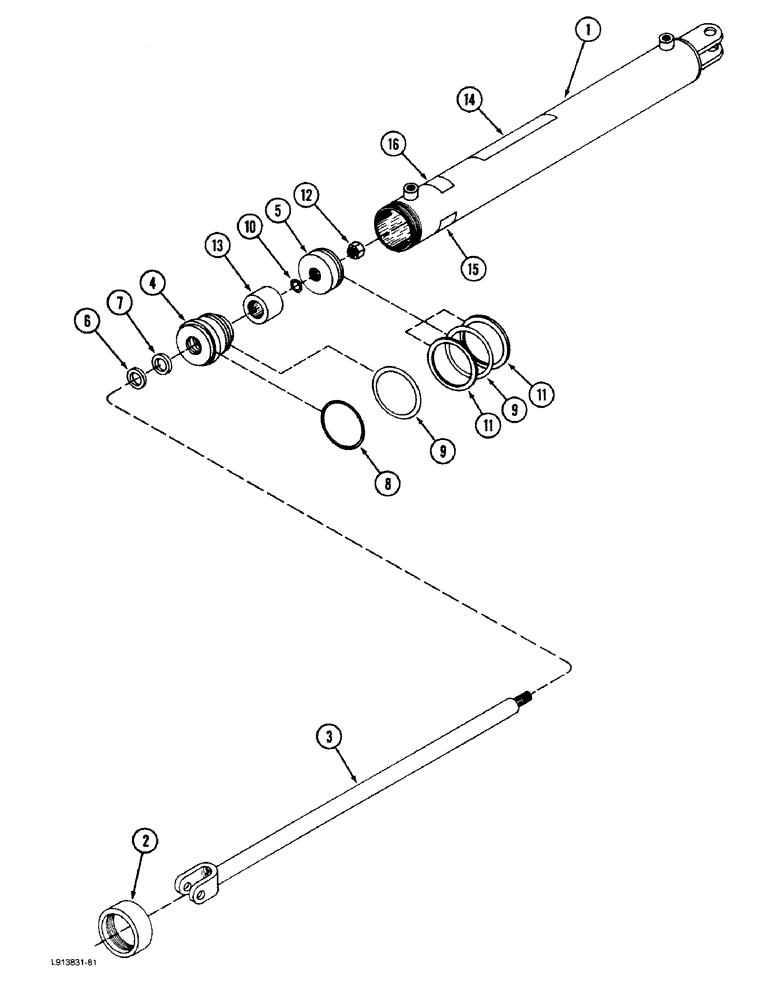

Запчасти Case IH 8100 (8-22) - WING LIFT CYLINDER, 3-1/2 X 28 INCH (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1543761C1
CYLINDER
- wing lift, 3-1/2 x 28 inch
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder barrel
1шт.
2
NSS
NOT SOLD SEPARAT
COLLAR - cylinder
1шт.
3
NSS
NOT SOLD SEPARAT
SHAFT - cylinder
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
5
NSS
NOT SOLD SEPARAT
PISTON - cylinder
1шт.
1543705C1
SEAL KIT
- seal repair
1шт.
6
NSS
NOT SOLD SEPARAT
WIPER - shaft
1шт.
7
NSS
NOT SOLD SEPARAT
SEAL - shaft
1шт.
8
NSS
NOT SOLD SEPARAT
O-RING - gland collar
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - cylinder, large
2шт.
10
NSS
NOT SOLD SEPARAT
O-RING - cylinder, small
1шт.
11
NSS
NOT SOLD SEPARAT
WASHER - backup
2шт.
12
NSS
NOT SOLD SEPARAT
NUT - lock retaining
1шт.
13
NSS
NOT SOLD SEPARAT
SPACER - cylinder gland
1шт.
14
NSS
NOT SOLD SEPARAT
DECAL - caution
1шт.
15
NSS
NOT SOLD SEPARAT
DECAL - maintenance information
1шт.
16
NSS
NOT SOLD SEPARAT
DECAL - part number information
1шт.
1543771C1
CYLINDER
- wing lift, 4-1/2 x 28 inch
1шт.
1
NSS
NOT SOLD SEPARAT
TUBE - cylinder barrel
1шт.
2
NSS
NOT SOLD SEPARAT
COLLAR - cylinder
1шт.
3
NSS
NOT SOLD SEPARAT
SHAFT - cylinder
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - cylinder
1шт.
5
NSS
NOT SOLD SEPARAT
PISTON - cylinder
1шт.
1543704C1
SEAL KIT
- seal repair
1шт.
6
NSS
NOT SOLD SEPARAT
WIPER - shaft
1шт.
7
NSS
NOT SOLD SEPARAT
SEAL - shaft
1шт.
8
NSS
NOT SOLD SEPARAT
O-RING - gland collar
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - cylinder, large
2шт.
10
NSS
NOT SOLD SEPARAT
O-RING - cylinder, small
1шт.
11
NSS
NOT SOLD SEPARAT
WASHER - backup
2шт.
12
NSS
NOT SOLD SEPARAT
NUT - lock retaining
1шт.
13
NSS
NOT SOLD SEPARAT
SPACER - cylinder gland
1шт.
14
NSS
NOT SOLD SEPARAT
DECAL - caution
1шт.
15
NSS
NOT SOLD SEPARAT
DECAL - maintenance information
1шт.
16
NSS
NOT SOLD SEPARAT
DECAL - part number information
1шт.
Выбрано товаров: 36
