Запчасти Case IH 8100 (8-20) - DEPTH CONTROL CYLINDER, 3-1/2 X 12 INCH (08) - HYDRAULICS

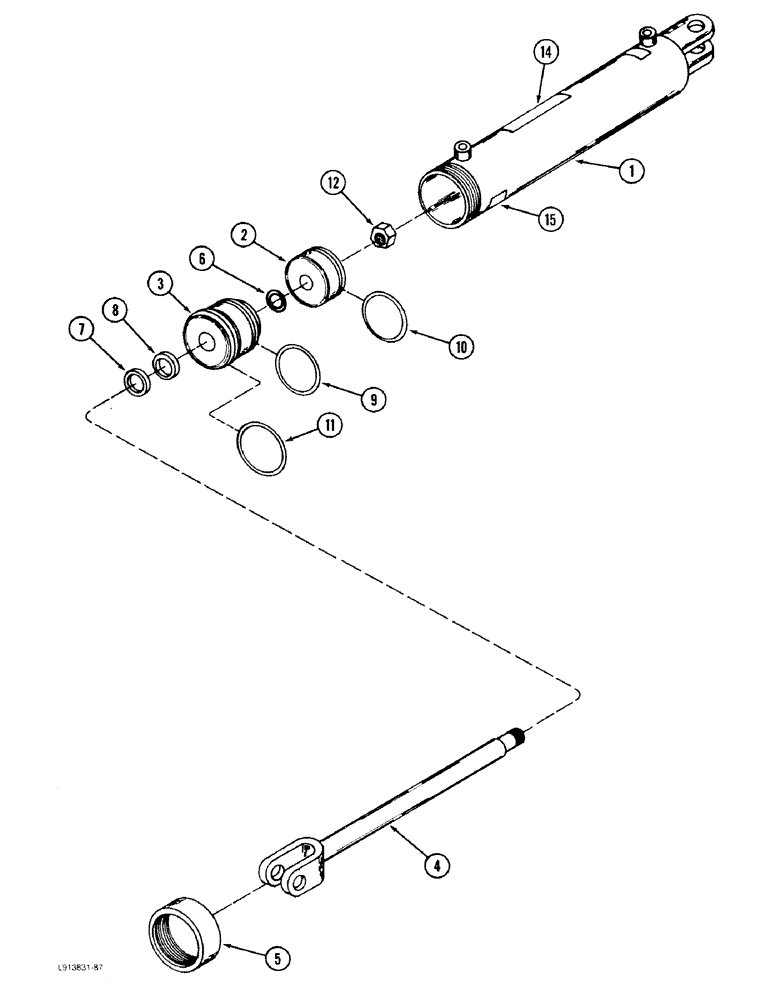

Схема запчастей Case IH 8100 - (8-20) - DEPTH CONTROL CYLINDER, 3-1/2 X 12 INCH (08) - HYDRAULICS
11
3
1
2
12
5
10
7
6
14
9
15
4
8

Артикул

Название

Примечание

Количество

1543706C1

CYLINDER

- depth control (Butt bypass)

1шт.

1543707C1

CYLINDER

- depth control (Gland bypass)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder barrel

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

COLLAR - cylinder

1шт.

1543701C1

SEAL KIT

- seal repair

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - shaft static

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - shaft

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - gland static

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - gland collar

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - shaft retaining

1шт.

14

NSS

NOT SOLD SEPARAT

DECAL - caution

1шт.

15

NSS

NOT SOLD SEPARAT

DECAL - maintenance information

1шт.

1543831C1

CYLINDER

- depth control

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder barrel

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

COLLAR - cylinder

1шт.

1543700C1

SEAL KIT

- seal repair

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - shaft static

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - shaft

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - gland static

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - gland collar

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - shaft retaining

1шт.

14

NSS

NOT SOLD SEPARAT

DECAL - caution

1шт.

15

NSS

NOT SOLD SEPARAT

DECAL - maintenance information

1шт.

Выбрано товаров: 33
