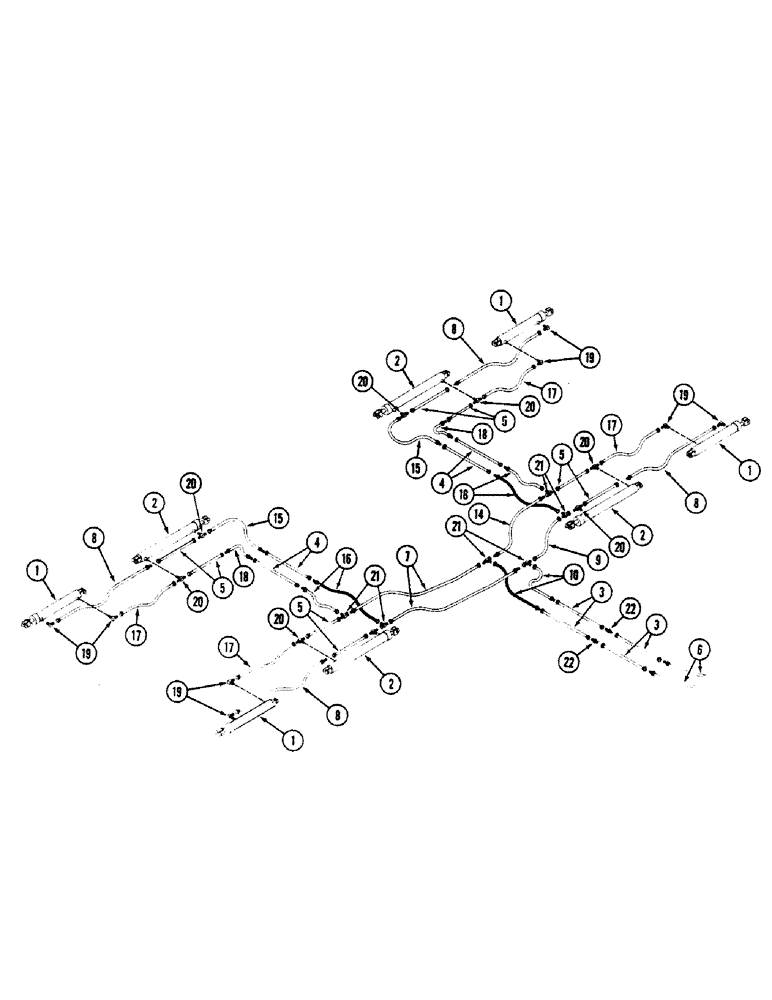

Запчасти Case IH 8100 (8-18) - WING LIFT HYDRAULICS, 43 THRU 47 AND 49 THRU 59 FOOT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - hydraulic, 4 x 18 inch (See Page 8-25)

4шт.

2

REF

INSTRUCTION

CYLINDER - hydraulic, 3-1/2 x 28 inch (43 - 47 Foot) (See Page 8-23)

4шт.

2

REF

INSTRUCTION

CYLINDER - hydraulic, 4-1/2 x 28 inch (49 - 59 Foot) (See Page 8-23)

4шт.

3

1544090C1

HYD TUBE

TUBE - hydraulic, 80 inch long

4шт.

4

1544088C1

HYD TUBE

TUBE - hydraulic, 81-1/2 inch long

4шт.

5

1544087C1

HYD TUBE,3" OD, 28" Length

TUBE - hydraulic, 28 inch long

8шт.

6

1544371C1

HYDRAULIC HOSE,0.50" ID x 96.00", SAE 100R2 Type A

2шт.

7

1544372C1

HYDRAULIC HOSE

HOSE - hydraulic, 194 inch long

2шт.

8

1544382C1

HYDRAULIC HOSE,0.25" ID x 40.00", SAE 100R1 Type A or AT

4шт.

8

H246322

HYDRAULIC HOSE,6.35 mm ID x 1524.00 mm, SAE 100R1

6.35 mm ID x 1524.00 mm, SAE 100R1

4шт.

9

A51523

HYDRAULIC HOSE

HOSE - hydraulic, 36 inch long

1шт.

10

1544374C1

HYDRAULIC HOSE,0.50" ID x 48.00"

2шт.

14

1544370C1

HOSE

- hydraulic, 36 inch long

1шт.

15

1544378C1

HOSE

- hydraulic, 24 inch long

2шт.

16

H165290

HYDRAULIC HOSE,0.25" ID x 17.00", SAE 100R1

0.25" ID x 17.00", SAE 100R1

4шт.

17

D81836

HOSE

- hydraulic, 16 inch long (43 - 47 Foot)

4шт.

17

1544373C1

HYDRAULIC HOSE

HOSE - hydraulic, 60 inch long (49 - 59 Foot)

4шт.

18

1544377C1

HOSE

- hydraulic, 15 inch long

2шт.

19

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

8шт.

20

218-553

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Br

- 1/4 PT branch x 9/16-18 inch flare x flare

8шт.

21

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 9/16-18 inch fl branch x flare x adj straight thread

6шт.

22

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

2шт.
