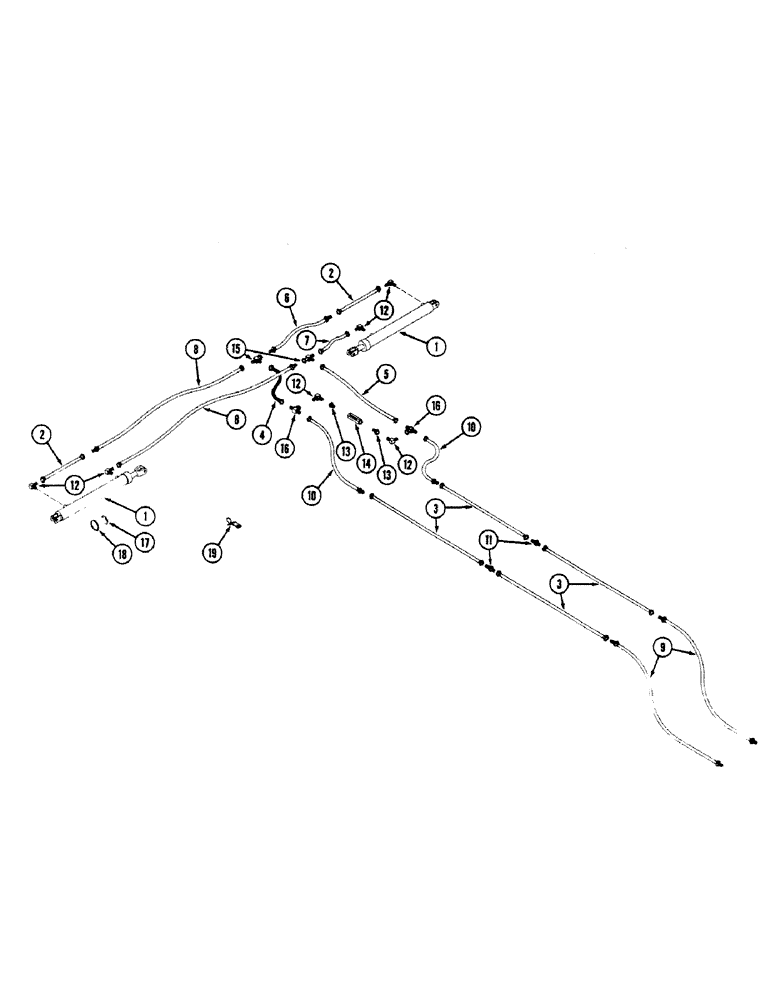

Запчасти Case IH 8100 (8-16) - WING LIFT HYDRAULICS, 25 THRU 35 AND 31 THRU 41 FOOT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - hydraulic, 4-1/2 x 28 inch (See Page 8-23)

2шт.

2

1544087C1

HYD TUBE,3" OD, 28" Length

TUBE - hydraulic, 28 inch long

2шт.

3

1544090C1

HYD TUBE

TUBE - hydraulic, 80 inch long (31 - 41 Foot)

4шт.

3

1544119C1

HYD TUBE

TUBE - hydraulic, 112 inch long (25 - 35 Foot)

2шт.

4

D81836

HOSE

- hydraulic, 16 inch long

1шт.

5

31-1528

HOSE

- hydraulic, 24 inch long

1шт.

6

1544370C1

HOSE

- hydraulic, 36 inch long

1шт.

7

A51523

HYDRAULIC HOSE

HOSE - hydraulic, 36 inch long

1шт.

8

1544372C1

HYDRAULIC HOSE

HOSE - hydraulic, 194 inch long

2шт.

9

1544371C1

HYDRAULIC HOSE,0.50" ID x 96.00", SAE 100R2 Type A

2шт.

10

1544375C1

HYDRAULIC HOSE

HOSE - hydraulic, 130 inch long

2шт.

11

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare (31-41 Foot only)

2шт.

12

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

6шт.

13

1544095C1

BUSHING

- hydraulic, 3/8 PT x 1/4 PT

2шт.

14

1543716C1

VALVE

- check, 3/8 PT

1шт.

15

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- 9/16-18 inch fl branch x flare x adj straight thread

2шт.

16

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- 9/16-18 inch swivel str thread branch x flare x flare

2шт.

17

1544103C1

BRACKET

- hydraulic tube

2шт.

18

214-14100

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP - retaining

2шт.

19

1543772C1

GUIDE

- hose

2шт.
