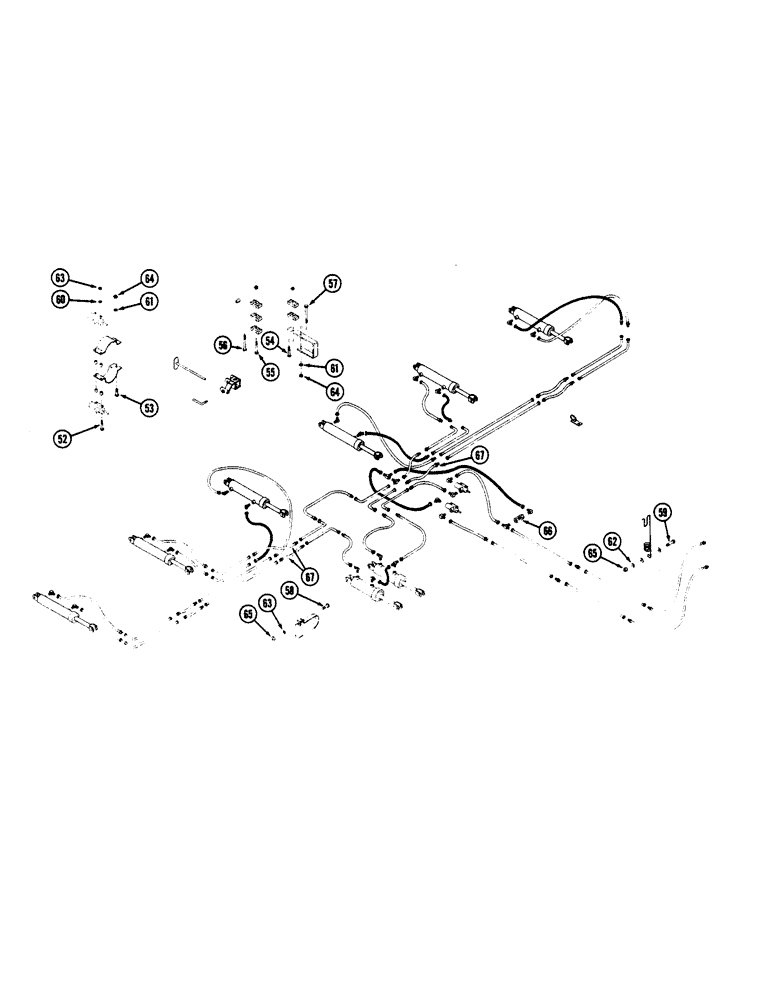

Запчасти Case IH 8100 (8-14) - DEPTH CONTROL HYDRAULICS, 43 THRU 47 AND 49 THRU 59 FOOT (CONTD) (08) - HYDRAULICS

52

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

53

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

54

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

18шт.

55

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

56

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

3шт.

57

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

15шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

59

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

60

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

61

492-11038

LOCK WASHER,3/8"

16шт.

62

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

63

329-105

NUT,5/16"-18, G8

2шт.

64

329-106

NUT,3/8"-16, G8

16шт.

65

329-108

NUT,1/2"-13, G8

2шт.

66

1543889C1

VALVE

- check

1шт.

67

1544379C1

HOSE

- hydraulic, 48 inch long

3шт.
