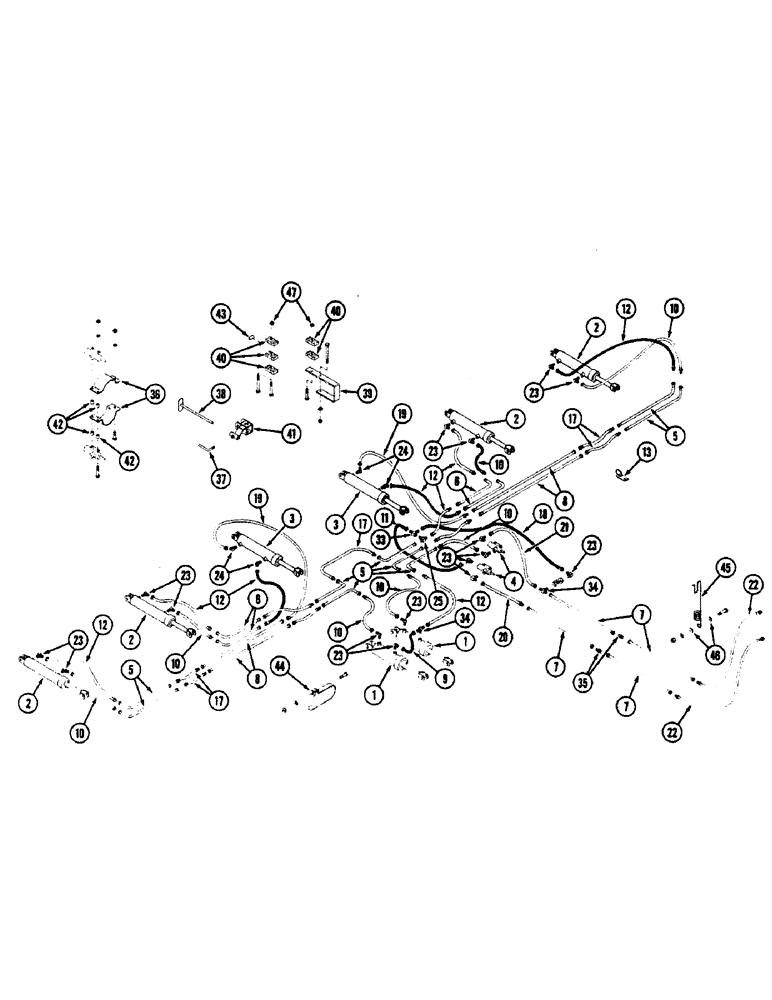

Запчасти Case IH 8100 (8-12) - DEPTH CONTROL HYDRAULICS, 43 THRU 47 AND 49 THRU 59 FOOT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - hydraulic, 4 x 8 inch (See Page 8-21)

2шт.

2

REF

INSTRUCTION

CYLINDER - hydraulic, 3-1/2 x 12 inch (See Page 8-21)

4шт.

3

REF

INSTRUCTION

CYLINDER - hydraulic, 3-1/2 x 12 inch (See Page 8-21)

2шт.

4

REF

INSTRUCTION

VALVE - depth stop (See Page 8-27)

2шт.

5

1544092C1

HYD TUBE,5" OD, 37.5 mm Length

TUBE - hydraulic, 37-1/2 inch long

9шт.

6

1544094C1

HYD TUBE

TUBE - hydraulic, 72 inch long (49-59 Foot)

4шт.

6

1544092C1

HYD TUBE,5" OD, 37.5 mm Length

TUBE - hydraulic, 37-1/2 inch long (43-47 Foot)

4шт.

7

1544090C1

HYD TUBE

TUBE - hydraulic, 80 inch long (49-59 Foot only)

4шт.

8

1544091C1

HYD TUBE

TUBE - hydraulic, 88 inch long (49-59 Foot)

4шт.

8

1544089C1

HYD TUBE,5" OD, 53" Length

TUBE - hydraulic, 53-1/2 inch long (43-47 Foot)

4шт.

9

D64000

HOSE

- hydraulic, 20 inch long

1шт.

10

D23030

HOSE

- hydraulic, 1/2 x 36 inch

7шт.

11

37405

HOSE

- hydraulic, 36 inch long

1шт.

12

L50629

HOSE ASSY.

HOSE - hydraulic, 48 inch long

8шт.

13

1543772C1

GUIDE

- hose

2шт.

17

1544380C1

HOSE ASSY.

HOSE - hydraulic, 60 inch long

5шт.

18

1544381C1

HOSE ASSY.

HOSE - hydraulic, 60 inch long

1шт.

19

L105958

HOSE

- hydraulic, 60 inch long

2шт.

20

1544383C1

HYDRAULIC HOSE,0.50" ID x 96.00", SAE 100R2 Type A or AT

1шт.

21

1544385C1

HOSE ASSY.

HOSE - hydraulic, 96 inch long

1шт.

22

1544371C1

HYDRAULIC HOSE,0.50" ID x 96.00", SAE 100R2 Type A

2шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

16шт.

24

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 7/8 flare x 5/8 inch PT

4шт.

25

218-595

TEE,7/8"-14, 37 Degree

- 7/8-14 inch flare

1шт.

33

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x adj straight thread

1шт.

34

218-1128

TEE,7/8"-14, 37 Degree x 3/4"-14, NPTF Run

- 7/8-14 flare branch x flare x 3/4 inch PT

2шт.

35

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

2шт.

36

1543981C1

CLAMP

- hose retaining

2шт.

37

1543994C1

HANDLE

- knuckle joint

1шт.

38

1543830C1

PLUNGER

- knuckle joint

1шт.

39

1543990C1

BRACKET

- tube retaining

15шт.

40

1544101C1

CLAMP

- nylon retaining

63шт.

41

1543832C1

KNUCKLE

- joint

1шт.

42

1544018C1

BUSHING

SPACER - hose retaining clamp

4шт.

43

1544032C1

BUSHING

SPACER - retaining

2шт.

44

1544004C1

CLAMP

STRAP - clamping

1шт.

45

651793R1

SUPPORT

HOLDER - hose

2шт.

46

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

2шт.

47

231-1416

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC

27шт.
