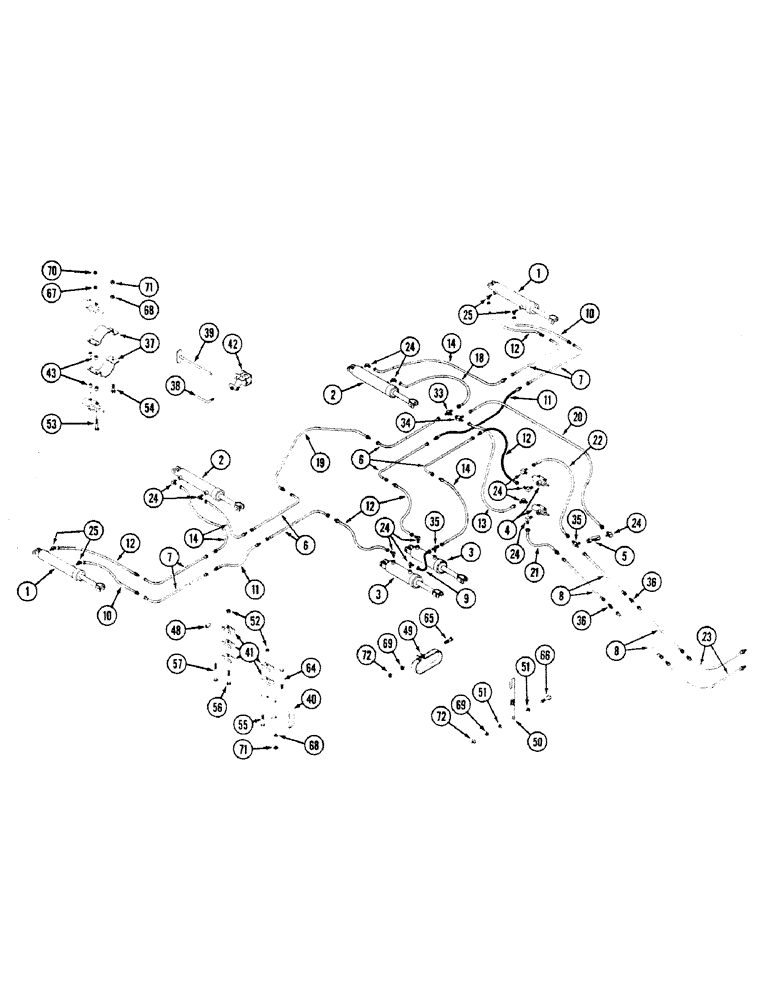

Запчасти Case IH 8100 (8-10) - DEPTH CONTROL HYDRAULICS, 31 THRU 41 FOOT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - hydraulic, 3-1/2 x 12 inch (See Page 8-21)

2шт.

2

REF

INSTRUCTION

CYLINDER - hydraulic, 3-1/2 x 12 inch (See Page 8-21)

2шт.

3

REF

INSTRUCTION

CYLINDER - hydraulic, 4 x 8 inch (See Page 8-21)

2шт.

4

REF

INSTRUCTION

VALVE - depth stop (See Page 8-27)

2шт.

5

1543889C1

VALVE

- check

1шт.

6

1544092C1

HYD TUBE,5" OD, 37.5 mm Length

TUBE - hydraulic, 37-1/2 inch long

5шт.

7

1544093C1

HYD TUBE

TUBE - hydraulic, 66 inch long

4шт.

8

1544090C1

HYD TUBE

TUBE - hydraulic, 80 inch long

4шт.

9

D64000

HOSE

- hydraulic, 20 inch long

1шт.

10

D24565

HOSE

- hydraulic, 24 inch long

2шт.

11

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - hydraulic, 36 inch long

2шт.

12

D23030

HOSE

- hydraulic, 1/2 x 36 inch

5шт.

13

37405

HOSE

- hydraulic, 36 inch long

1шт.

14

L50629

HOSE ASSY.

HOSE - hydraulic, 48 inch long

4шт.

18

1544384C1

HOSE ASSY.

HOSE - hydraulic, 48 inch long

1шт.

19

1544380C1

HOSE ASSY.

HOSE - hydraulic, 60 inch long

1шт.

20

1544381C1

HOSE ASSY.

HOSE - hydraulic, 60 inch long

1шт.

21

1544383C1

HYDRAULIC HOSE,0.50" ID x 96.00", SAE 100R2 Type A or AT

1шт.

22

1544385C1

HOSE ASSY.

HOSE - hydraulic, 96 inch long

1шт.

23

1544371C1

HYDRAULIC HOSE,0.50" ID x 96.00", SAE 100R2 Type A

2шт.

24

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

12шт.

25

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 7/8 flare x 5/8 inch PT

4шт.

33

218-595

TEE,7/8"-14, 37 Degree

- 7/8-14 inch flare

1шт.

34

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x adj straight thread

1шт.

35

218-1128

TEE,7/8"-14, 37 Degree x 3/4"-14, NPTF Run

- 7/8-14 flare branch x flare x 3/4 inch PT

2шт.

36

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - straight, 7/8-14 inch flare

2шт.

37

1543981C1

CLAMP

- hose retaining

2шт.

38

1543994C1

HANDLE

- knuckle joint

1шт.

39

1543830C1

PLUNGER

- knuckle joint

1шт.

40

1543990C1

BRACKET

- tube retaining

12шт.

41

1544101C1

CLAMP

- nylon retaining

32шт.

42

1543832C1

KNUCKLE

- joint

1шт.

43

1544018C1

BUSHING

SPACER - hose retaining clamp

4шт.

48

1544032C1

BUSHING

SPACER - retaining

2шт.

49

1544004C1

CLAMP

STRAP - clamping

1шт.

50

651793R1

SUPPORT

HOLDER - hose

2шт.

51

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

2шт.

52

231-1416

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC

12шт.

53

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

54

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

55

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

4шт.

56

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

57

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

6шт.

64

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

12шт.

65

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

66

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

67

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

68

492-11038

LOCK WASHER,3/8"

13шт.

69

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

70

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Grade 8

2шт.

71

425-106

NUT,3/8"-16, Cl 5

13шт.

72

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
