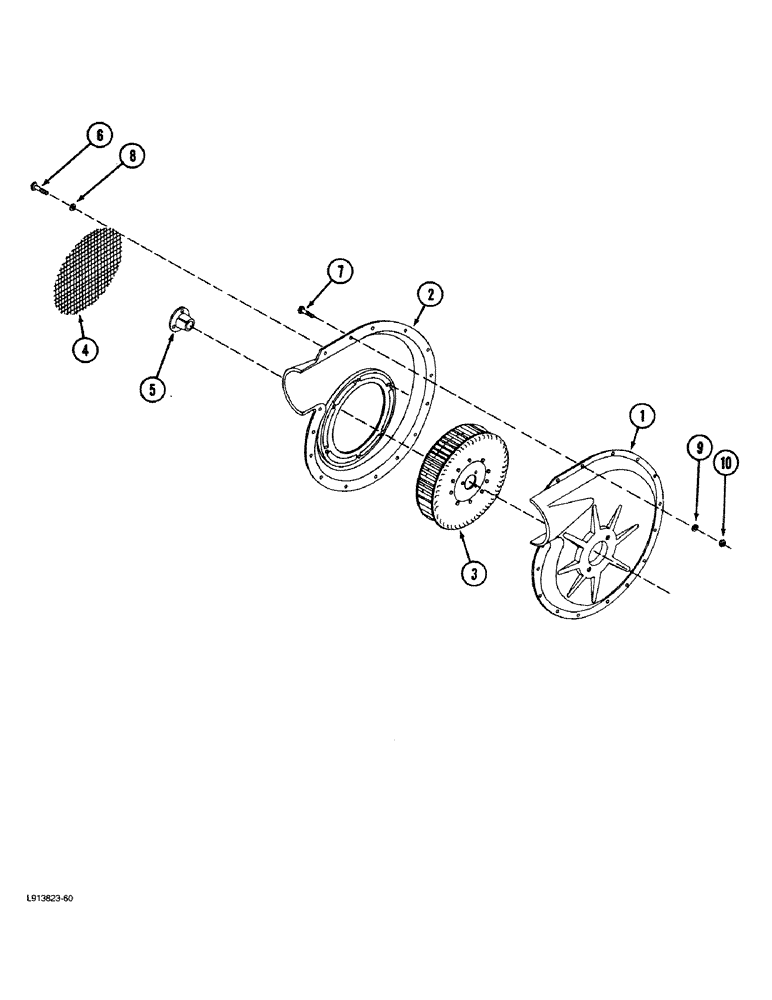

Запчасти Case IH 8100 (8-06) - HYDRAULIC DRIVE FAN (08) - HYDRAULICS

1544136C1

FAN

ASSEMBLY - hydraulic motor

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - drive fan

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - drive fan

1шт.

3

NSS

NOT SOLD SEPARAT

ROTOR - drive fan

1шт.

4

NSS

NOT SOLD SEPARAT

SCREEN - drive fan

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - tapered

1шт.

6

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

7

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/4 NC x 1 inch

15шт.

8

NSS

NOT SOLD SEPARAT

WASHER - flat, 1/4 inch

6шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

15шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch

15шт.
