Запчасти Case IH ADX3430 (E.30.A[05]) - INTERNAL LADDERS AND BIN SENSORS E - Body and Structure

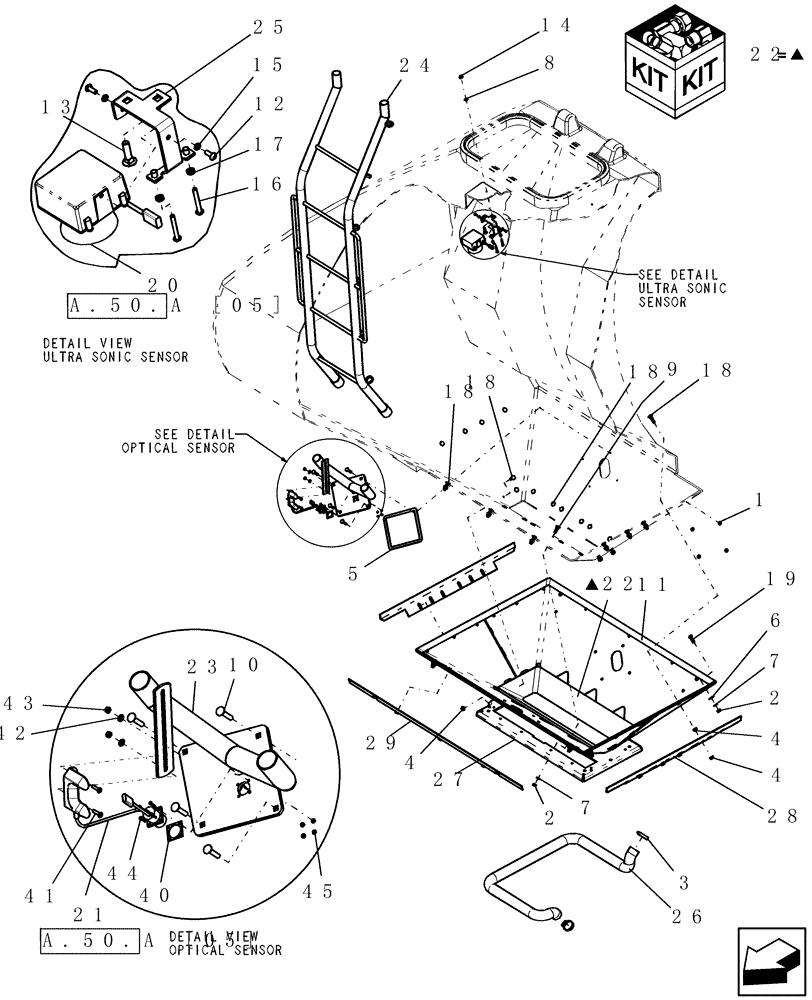

Схема запчастей Case IH ADX3430 - (E.30.A[05]) - INTERNAL LADDERS AND BIN SENSORS E - Body and Structure
5
24
18
6
7
1
21
13
15
2
22
4
16
17
22
4
3
19
2
28
45
26
9
4
40
18
8
23
18
10
7
25
18
12
27
41
42
14
29
43
44
20
11

Артикул

Название

Примечание

Количество

1

281010

LOCK NUT,7/8"-14, GC

4шт.

2

9628503

NUT,3/8"-16, G5

35шт.

3

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

4

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -CBJ0004345

26шт.

5

425468A1

SEAL

sponge 1/2" wide x 1/4" thick x 66" long

1шт.

Cut 66" from 25' roll marked 86992328

1шт.

5

86992328

SEAL

sponge 1/2" w x 1/4" thick adhesive

1шт.

Must be ordered in multiples of 25

1шт.

6

8633

WASHER

7/16" id x 1" od x 5/64" thick, ss

8шт.

7

280681

LOCK WASHER,3/8", Stainless

20шт.

8

22404

WASHER

sealing 5/16" ss neop

1шт.

9

51200135

CARRIAGE BOLT,3/8" - 16 x 1.25", Full Thd, Stainless

6шт.

10

87012914

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Stainless

4шт.

11

425487A1

KIT

sponge 1 1/4" x 3/4" cell, adhesive

1шт.

Must be ordered in multiples of 12.5

1шт.

12

9528

HEX SOC SCREW,Sl Rnd Hd, #10 - 32 x 0.50", SST

machine #10-32 x 1/2" rh skt-slt ss

2шт.

13

9533

CARRIAGE BOLT

5/16" x 1 1/4" ss

1шт.

14

9068

LOCK NUT

lock 5/16", Start Year: 02-SEP-04

1шт.

14

9586

FLANGE NUT

flange 5/16" serrated, Years: -01-SEP-04

1шт.

15

9587

LOCK WASHER

#10 ss

2шт.

16

9588

SCREW,Sl Sq, #10 - 32 x 1.50"

mch #10-32 x 1 1/2" rh sq-slt ss

2шт.

17

9589

NUT

#10-32 ss

2шт.

18

9793

CARRIAGE BOLT

3/8" x 1 1/2" ss

21шт.

19

173-248

SCREW,Sl Rd Hd, 3/8 - 16 x 1 1/4"

8шт.

20

425096A1

SENSOR

bin level, sonar

1шт.

Refer to Sensors page for details

1шт.

20

84529354R

REMAN-SENSOR

ADX3360 (6/01-5/03), ADX3380 (6/03-7/08), ADX3430 (1/04-7/08), All AIR DELIVERY SYSTEM, bin level, sonar, Reman for New PN 425096A1

1шт.

20

84529354C

CORE-SENSOR

Return Number

1шт.

21

87508154

KIT

Optical Bin Level

1шт.

Refer to Sensors page for details

1шт.

Includes mounting hardware

1шт.

22

22705K

SEAL KIT

sub hopper

1шт.

23

GL-146

BRACKET

air inlet/internal ladder

1шт.

24

GL-159

LADDER

internal tank

1шт.

24

87420668

LADDER

internal 430 bushel cart

1шт.

25

GL-349

BRACKET

mount, bin level sensor - ultrasonic

1шт.

26

GL-404

HOSE

Tank Pressurization - 86.4" (87")

1шт.

26

GL-421

HOSE

Tank Pressurization

1шт.

For Tow Behind use GL-421 at Tank #3, for Tow Between use GL-421 at Tank #2 and #3

1шт.

27

GL-990FR

HOPPER

sub tank mount

1шт.

28

GM-431FR

RAIL ASSY.

drip, subhopper, side, Serial Range: -CBJ0004345

2шт.

29

GM-432FR

RAIL ASSY.

drip, subhopper, rear, Serial Range: -CBJ0004345

1шт.

40

51200017

GASKET,25.4mm ID x 1.6mm Thk

rubber, 25 mm id X 2.5 mm thick

1шт.

41

9447

SCREW,Pan Hd, #10 - 24 x 0.75", Sl Sq Drive

mch #10-24 x 3/4" ph sq-slt ss

2шт.

42

9527

WASHER

#10 ss

2шт.

43

9448

NUT

#10-24 stainless steel

2шт.

44

9445

SCREW,Pan Hd, #4 - 40 x 5/8", Stainless

mch #4-40 x 5/8" ph pi ss

4шт.

45

412912A1

LOCK NUT

#4-40, stainless steel

4шт.

100

NSS

NOT SOLD SEPARAT

SENSOR, sonar bin level aiming

1шт.

Not Shown

1шт.

Выбрано товаров: 50
