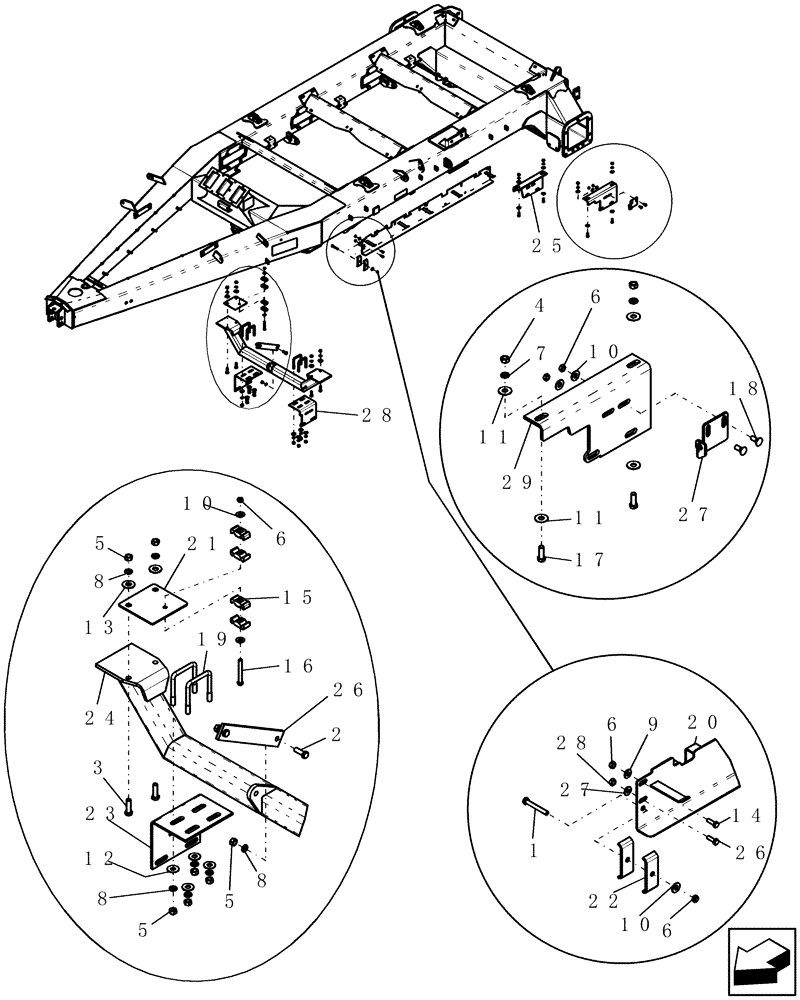

Запчасти Case IH ADX3430 (E.10.C[06]) - REAR FRAME HOSE TRAYS AND INTERMEDIATE MANIFOLD SUPPORT (APN CBJ0005380 [3380] & CBJ0019030 [3430]) E - Body and Structure

1

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3шт.

2

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

3

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

4

280717

NUT,7/16"-14, G5

4шт.

5

280431

NUT,1/2"-13, G5

14шт.

6

88902

NUT,3/8"-16

12шт.

7

81547

LOCK WASHER,7/16"

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

14шт.

9

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

6шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

7шт.

11

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

8шт.

12

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

13

18606

WASHER,0.62" ID x 1.47" OD x 0.11" Thk

4шт.

14

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

6шт.

15

84307616

CLAMP

plastic, hydraulic tube

4шт.

Variable Drive Only

1шт.

16

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

1шт.

17

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

4шт.

18

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

51200064

U-BOLT

us 1/2" x 3 1/8" w x 4" d 1 1/4" thread

4шт.

20

87445994

SIDE PANEL

1шт.

21

87446692

BRACKET

hose mount

1шт.

22

CC-106

HOSE CLAMP

for 4 hoses

6шт.

23

GL-135

BRACKET

mount, manifold support

1шт.

24

GL-160

SUPPORT

intermediate manifold

1шт.

25

GL-166

BRACKET

mount, intermediate manifold - right

1шт.

26

GL-739

BRACKET

Intermediate Manifold

1шт.

27

GM-321

BRACKET

mount ball valve

1шт.

28

GM-329

BRACKET

mount, intermediate manifold - left

1шт.

29

GM-331

BRACKET

mount, intermediate manifold - left

1шт.
