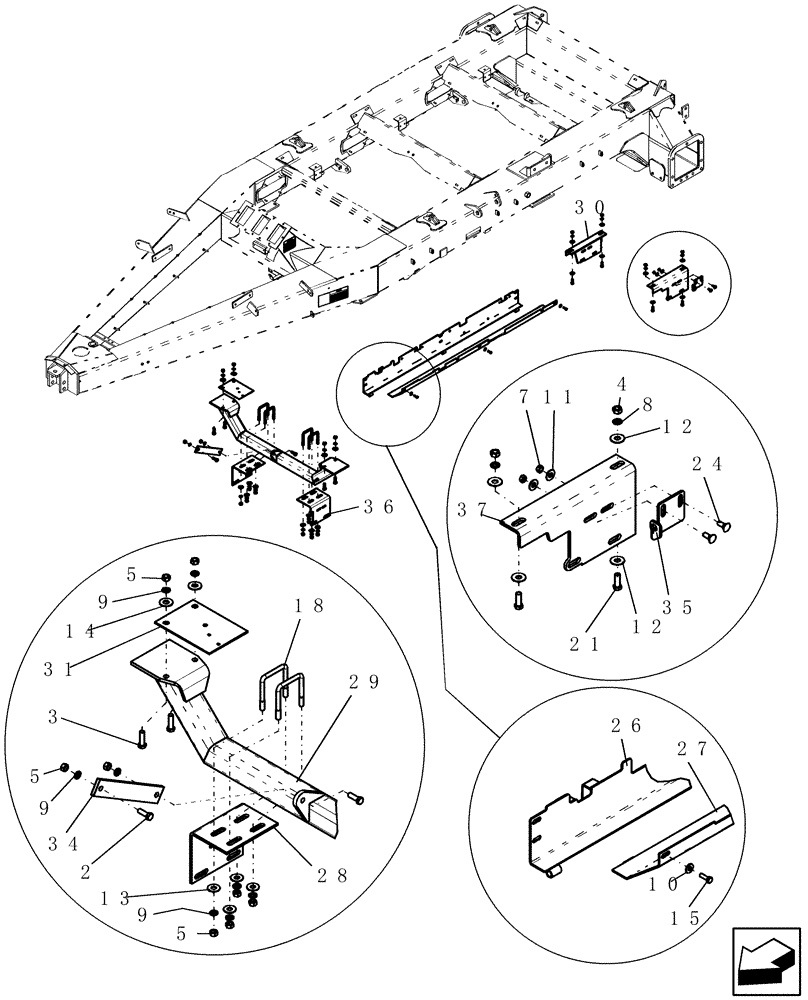

Запчасти Case IH ADX3430 (E.10.C[05]) - REAR FRAME HOSE TRAYS & INTERMEDIATE MANIFOLD SUPP (BTW CBJ0005319 & CBJ0005379) & BSN CBJ0019029) E - Body and Structure

2

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

4шт.

3

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

4

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

5

280717

NUT,7/16"-14, G5

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

14шт.

7

281010

LOCK NUT,7/8"-14, GC

6шт.

8

88902

NUT,3/8"-16

2шт.

9

81547

LOCK WASHER,7/16"

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

14шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

9шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

13

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

8шт.

14

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

15

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

9шт.

18

51200064

U-BOLT

us 1/2" x 3 1/8" w x 4" d 1 1/4" thread

4шт.

22

6855

CLEVIS PIN

1/2" x 2 3/4" fl

3шт.

23

38-11010

LOCK PIN,5/32" x 5/8", Slotted

3шт.

25

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

26

GL-112

TRAY

hose, back cover

1шт.

27

GL-113

COVER

flip up, hose tray

1шт.

28

GL-135

BRACKET

mount, manifold support

1шт.

29

GL-160

SUPPORT

intermediate manifold

1шт.

30

GL-166

BRACKET

mount, intermediate manifold - right

1шт.

31

GL-602

MOUNTING PLATE

1шт.

34

GL-739

BRACKET

Intermediate Manifold

1шт.

35

GM-321

BRACKET

mount ball valve

1шт.

36

GM-329

BRACKET

mount, intermediate manifold - left

1шт.

37

GM-331

BRACKET

mount, intermediate manifold - left

1шт.

100

87433824

FRAME

380/430

1шт.

Not Shown

1шт.
