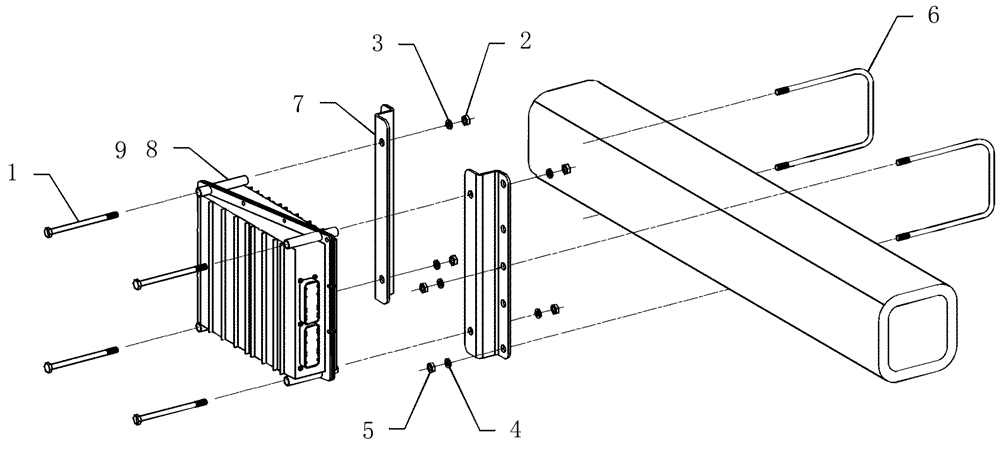

Запчасти Case IH ADX3430 (A.50.A[27]) - FLOW REMOTE MODULE AND MOUNTING A - Distribution Systems

1

280492

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

4шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

3

80682

LOCK WASHER,1/4"

4шт.

4

80681

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

419990A1

U-BOLT

us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread

2шт.

7

87415392

BRACKET

FlexControl remote mount

2шт.

8

15762

ECU

flow optical, Years: -31-JUL-05

1шт.

8

87659831R

REMAN-MODULE

flow optical

1шт.

8

87659831C

CORE-MODULE

CORE-MODUL Return Number, MODULE

1шт.

8

87445434

ECU

167 optical fc, Years: 01-AUG-05-01-OCT-05

1шт.

8

87659831R

REMAN-MODULE

167 optical fc

1шт.

8

87659831C

CORE-MODULE

Return Number

1шт.

8

87659831

MODULE

167 optical fc, Start Year: 01-JUL-08

1шт.

8

87659831R

REMAN-MODULE

ADX3360, ADX3380, ADX3430

1шт.

8

87659831C

CORE-MODULE

Return Number

1шт.

8

87504887

ECU

167 optical fc, Years: 01-NOV-05-01-JUL-08

1шт.

If this ECU will be used in an AgriCheck system, no programming is required.

1шт.

This ECU does not contain ISOBUS software and **MAY** have to be programmed before use.

1шт.

If this ECU will be used in an ISOBUS system, programming is required before use, make arrangements for programming if drop shipping.

1шт.

8

87659831R

REMAN-MODULE

167 optical fc

1шт.

8

87659831C

CORE-MODULE

Return Number

1шт.

9

87504886

MODULE

flow gateway remote optical sensor, Years: 01-NOV-05-01-JUL-08

1шт.

If this ECU will be used in an AgriCheck system, no programming is required.

1шт.

This ECU does not contain ISOBUS software and **MAY** have to be programmed before use.

1шт.

If this ECU will be used in an ISOBUS system, programming is required before use, make arrangements for programming if drop shipping.

1шт.

9

87659830R

REMAN-MODULE

1шт.

9

87659830C

CORE-MODULE

Return Number

1шт.

9

86983903

MODULE

flow gateway remote optical sensor, Years: -01-OCT-05

1шт.

9

87659830R

REMAN-MODULE

Flow Gateway Optical

1шт.

9

87659830C

CORE-MODULE

Return Number

1шт.

9

87659830

MODULE

flow gateway remote optical sensor, Start Year: 01-JUL-08

1шт.

9

87659830R

REMAN-MODULE

MODULE, Reman for New PN 87659830

1шт.

9

87659830C

CORE-MODULE

Return Number

1шт.
