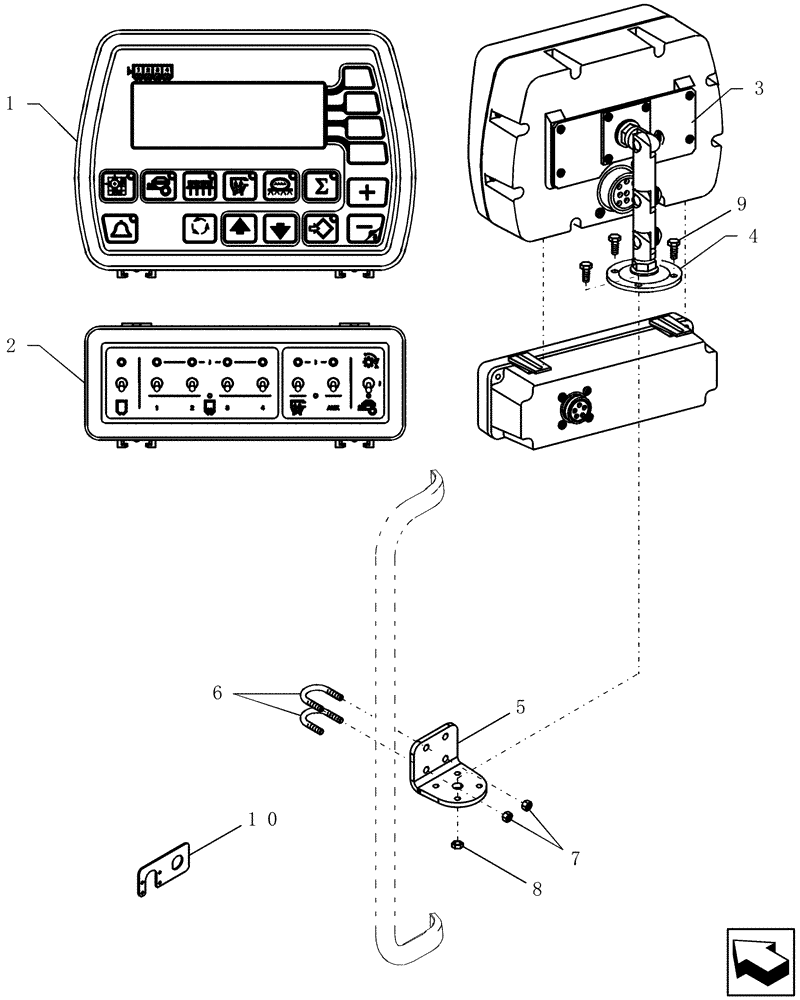

Запчасти Case IH ADX3430 (A.50.A[15]) - DISPLAY MONITOR AND SWITCH UNIT A - Distribution Systems

1

87504891

ECU

4 line monitor

1шт.

1

87604748R

REMAN ELECT CONTROL

4 line monitor

1шт.

1

87604748C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87506427

ECU

seeder prime

1шт.

2

51200015

SWITCH

toggle spdt on off on pwb

1шт.

2

87681163

SWITCH

spdt on off mom

1шт.

3

425047A1

BRACKET

console to pedstal mount

1шт.

4

425046A1

BRACKET

6" adjustable console mount

1шт.

5

402696A1

MOUNTING PARTS

monitor

1шт.

6

435430A1

U-BOLT

ur 1/4" x 1" w x 1 3/4" d 1" thread

2шт.

7

280129

NUT,1/4"-20

4шт.

8

86632551

NUT,#10-24, GB

4шт.

9

463-11016

SCREW,Hex Hd, #10-24 x 1"

4шт.

10

GL-521

MOUNTING PARTS

implement receptacle

1шт.

Generic Tractor

1шт.

100

15470

HARNESS

tractor FlexControl - afs

1шт.

Not Shown

1шт.
