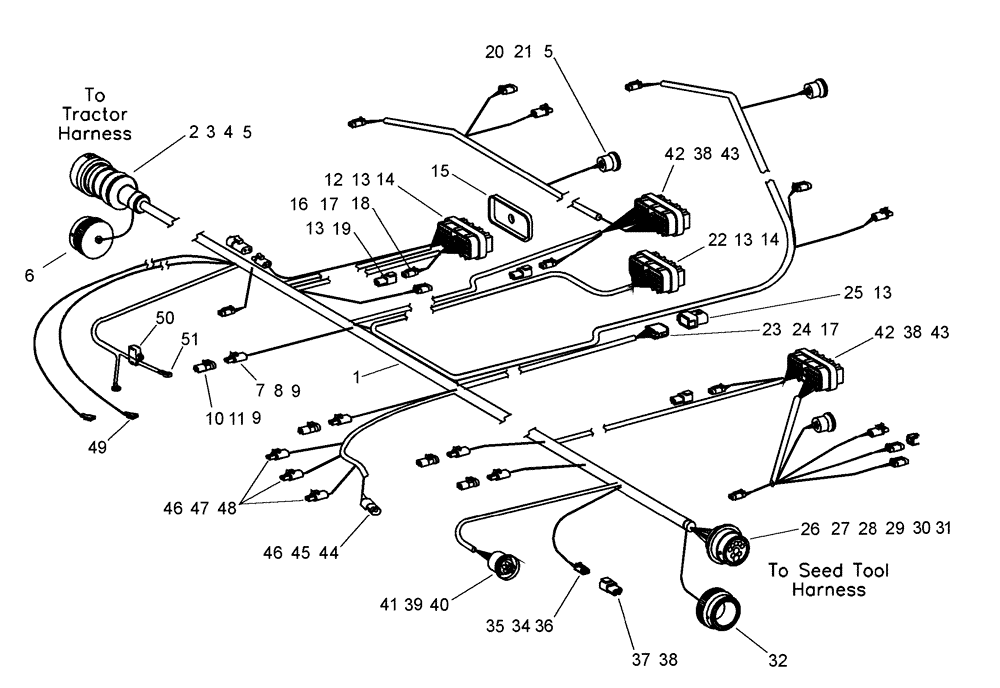

Запчасти Case IH ADX3430 (A.50.A[04]) - TOW BETWEEN VARIABLE DRIVE CART HARNESS A - Distribution Systems

1

425256A1

HARNESS

3 tank vr cart, tow between

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

3

S107261

PLUG

connector seal 8-10awg

2шт.

4

900302

TERMINAL

12-14awg

2шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

8шт.

6

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

8

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

2шт.

9

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

10

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

11

225127C1

PLUG

cavity, green rubber

2шт.

12

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

13

225055C1

PLUG

connector 20awg

30шт.

14

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

45шт.

15

425269A1

DUST CAP

30 conductor

1шт.

16

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

17

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

14шт.

18

87705586

WEDGE

lock 3c plug

1шт.

19

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

20

225224C1

ELEC CONNECTOR,Female, 5 Pin

plastic 5c plug

1шт.

21

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

1шт.

22

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

23

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

1шт.

24

223674A1

WEDGE

lock 12c plug

1шт.

25

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

26

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

27

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

4шт.

28

51200870

ELEC. TERMINAL PIN,8 - 10 SAE

contact pin 8-10 Deutsch

2шт.

Contains 13949, 12233, and 12300

1шт.

29

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

12-14awg

2шт.

30

51200012

LOCK WASHER

split 1 3/4" id x 3/32" tk

2шт.

31

459329C1

NUT

1 11/16"-18 aluminum 3/16" thick

2шт.

32

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

34

222135A1

CONNECTOR, ELEC

CONNECTOR plastic 2c plug

1шт.

35

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

3шт.

36

222846A1

STOP LOCK

2c plug connector

1шт.

37

222136A1

ELEC CONNECTOR,Male, 2 Pin

plastic 2c receptacle

1шт.

38

225055C1

PLUG

connector 20awg

7шт.

39

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

40

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

2шт.

41

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

4шт.

42

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

2шт.

43

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

56шт.

44

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

45

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

2шт.

46

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

47

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

48

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

2шт.

49

425044A1

TERMINAL CONNECTOR,22 - 18 SAE

terminal disc 22-18awg 1/4" f

1шт.

50

92277

FUSE,30 Amp

ato 30a 32v fast act

1шт.

51

412732A1

ELEC. TERMINAL PIN,3 - 6 mm2

terminal ring 10-12awg 5/16" yellow

1шт.
