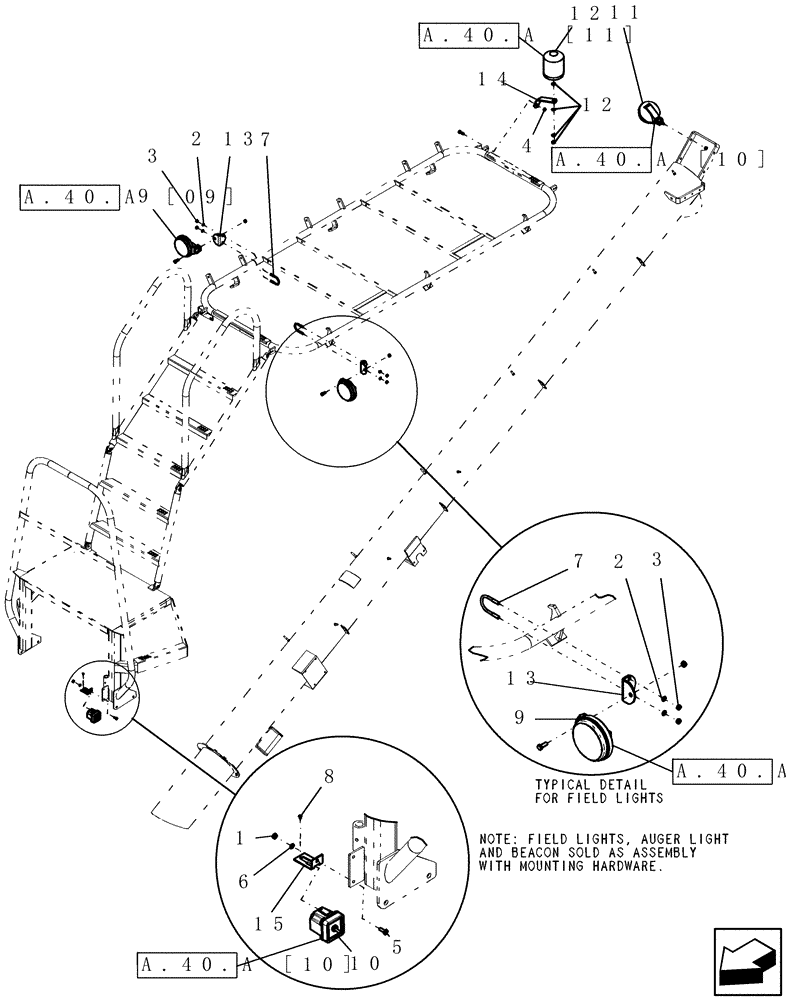

Запчасти Case IH ADX3430 (A.40.A[08]) - WORK, AUGER AND BEACON LIGHTING MOUNTS A - Distribution Systems

1

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

2

80681

LOCK WASHER,5/16"

4шт.

3

9635082

NUT,5/16" - 18, Gr 5

4шт.

4

88902

NUT,3/8"-16

4шт.

5

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

6

80682

LOCK WASHER,1/4"

1шт.

7

6652

U-BOLT

ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread

2шт.

8

21304

SELF-TAP SCREW

#6-32 x 5/16"

1шт.

9

425060A1

LIGHT

work 100w pilot

2шт.

Refer to Work Lighting page for details

1шт.

10

425061A1

SWITCH

on/off

1шт.

Refer to Auger Lighting page for details

1шт.

11

87564182

LIGHT

auger 55w pilot

1шт.

Refer to Auger Lighting page for details

1шт.

12

412915A1

BEACON

assembly rotating yellow 12v

1шт.

Refer to Beacon Lighting page for details

1шт.

13

GL-338

BRACKET

field light

2шт.

14

GL-348

BRACKET

mount beacon light

1шт.

15

GL-479

BRACKET

mount, single switch

1шт.
