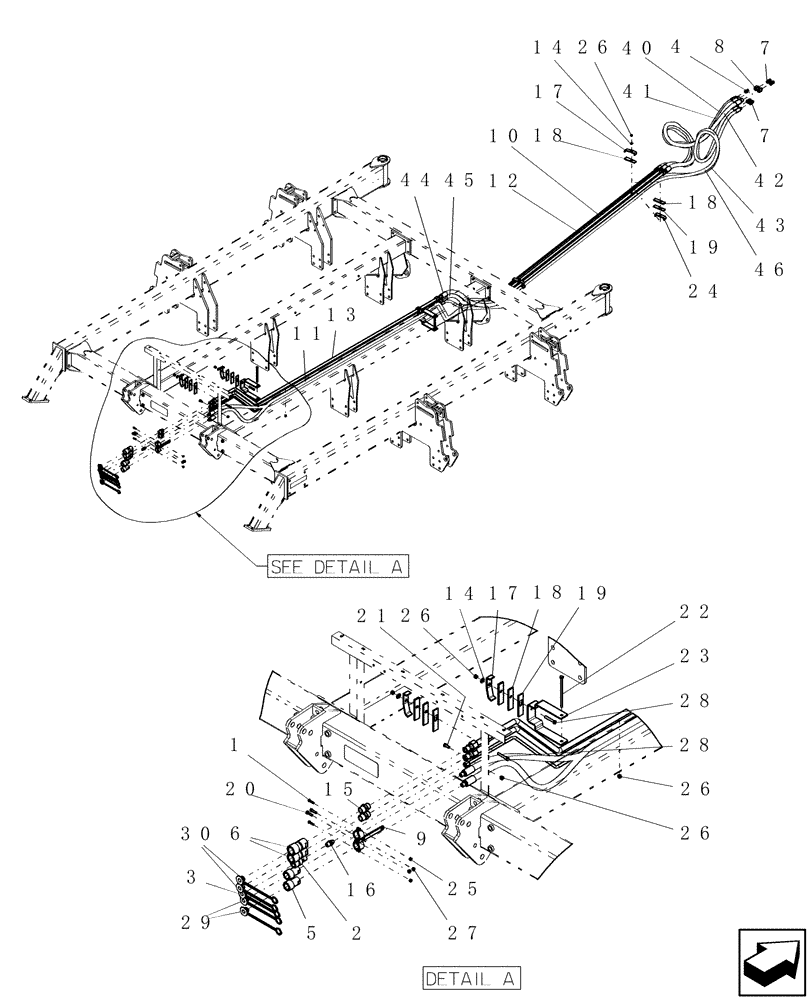

Запчасти Case IH ADX3430 (A.10.A[24]) - TBH HYD LINES ACROSS SDX40 (BSN CBJ0004441) A - Distribution Systems

1

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

2шт.

2

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

3

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

4

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

1шт.

5

6935

COUPLING, QUICK, FEM

3/4"

2шт.

6

9359

COUPLING, QUICK, FEM

1"

2шт.

7

9412

QUICK MALE COUPLING

1/2"

4шт.

8

21668

REDUCER FITTING,1/2" - 14 Male NPT x 3/4" - 14 Female NPT

hydraulic 1/2" mpt x 3/4" fpt

2шт.

9

GE-202

CLAMP

for two 3/4" couplers

1шт.

10

1026743

HYD TUBE,0.5" Diameter, 108" Length

assy 1/2" x 108"

1шт.

11

425678A2

HYD TUBE

1/2" x 132"

1шт.

12

350191A1

HYD TUBE,25.4 mm OD, 2743 mm Length

assy 1" x 108" -16 jicfsw

2шт.

13

425680A2

HYD TUBE

assy 1" x 132"

2шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

15

86512927

HYD CONNECTOR,1-5/16" - 12 JIC x 1" - 11-1/2 NPT

2шт.

16

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

1шт.

17

1026712

CLAMP

5"

5шт.

18

1026714

ISOLATOR

neoprene 1/4" tk pln

10шт.

19

1026713

CLAMP

backing

5шт.

20

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

21

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

22

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

2шт.

23

312995A1

MOUNTING PARTS

hyd clamp

2шт.

24

1024285

CLAMP

hose large

2шт.

25

280129

NUT,1/4"-20

2шт.

26

232-1446

NUT,3/8"-16, GC

8шт.

27

281010

LOCK NUT,7/8"-14, GC

2шт.

28

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

3шт.

29

6934

PLUG

dust, pioneer coupler - 3/4"

2шт.

30

9360

PLUG

dust, pioneer coupler - 1"

2шт.

40

GR-260A

HYDRAULIC HOSE

ext case drain

1шт.

41

GR-250A

HYDRAULIC HOSE

Ext fan pressure

1шт.

42

GR-251A

HYDRAULIC HOSE

Ext fan return

1шт.

43

GR-252A

HYDRAULIC HOSE

Ext auger pressure

1шт.

44

425852A1

HYDRAULIC HOSE

1" x 48" fl

2шт.

45

351469A1

HOSE

1/2" x 48"

1шт.

46

GR-254A

HYDRAULIC HOSE,0.75" ID x 384.00"

Auger return

1шт.
