Запчасти Case IH ADX3430 (A.10.A[23]) - TBH HYD LINES ACROSS SDX30 (ASN CBJ0004442) A - Distribution Systems

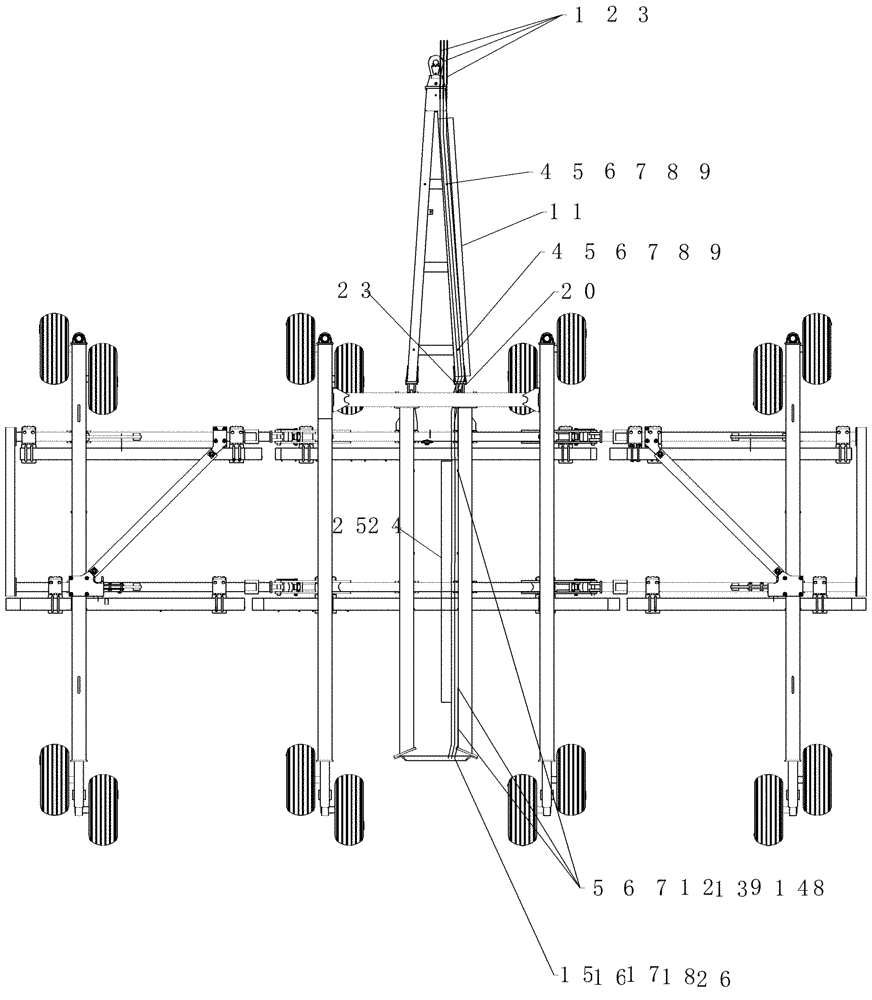

Схема запчастей Case IH ADX3430 - (A.10.A[23]) - TBH HYD LINES ACROSS SDX30 (ASN CBJ0004442) A - Distribution Systems
13
5
5
4
8
6
6
6
9
9
1
20
15
3
23
25
9
7
7
24
8
18
7
26
14
4
12
5
2
16
11
17
8

Артикул

Название

Примечание

Количество

1

51200104

HYDRAULIC HOSE,25.4mm ID x 2438.4mm L, SAE 100R1

1" x 96" fl

1шт.

Fan Pressure

1шт.

2

51200104

HYDRAULIC HOSE,25.4mm ID x 2438.4mm L, SAE 100R1

1" x 96" fl

1шт.

Fan Return

1шт.

3

87502333

HYDRAULIC HOSE,19mm ID x 9830mm L

250 PSI

1шт.

Case Drain

1шт.

4

1026677

STUD

3/8" x 3 1/4" nc gr d zp

1шт.

5

1026712

CLAMP

5"

1шт.

6

1026713

CLAMP

backing

1шт.

7

1026714

ISOLATOR

neoprene 1/4" tk pln

1шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

9

232-1446

NUT,3/8"-16, GC

1шт.

11

350191A1

HYD TUBE,25.4 mm OD, 2743 mm Length

assy 1" x 108" -16 jicfsw

1шт.

12

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

13

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

1шт.

14

312995A1

MOUNTING PARTS

hyd clamp

1шт.

15

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

16

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

17

9360

PLUG

dust, pioneer coupler - 1"

1шт.

18

9359

COUPLING, QUICK, FEM

1"

1шт.

20

86977779

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 14 NPT

1шт.

23

425852A1

HYDRAULIC HOSE

1" x 48" fl

1шт.

24

425680A2

HYD TUBE

assy 1" x 132"

1шт.

25

21668

REDUCER FITTING,1/2" - 14 Male NPT x 3/4" - 14 Female NPT

hydraulic 1/2" mpt x 3/4" fpt

1шт.

26

9412

QUICK MALE COUPLING

1/2"

1шт.

Выбрано товаров: 25
