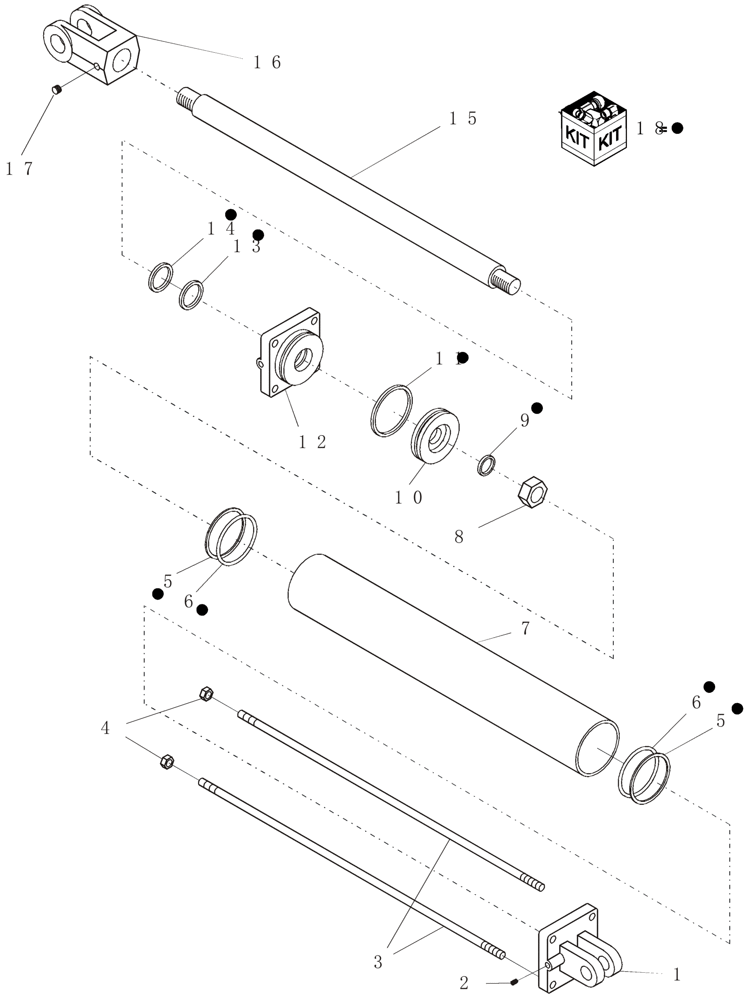

Запчасти Case IH ADX3430 (A.10.A[16]) - HYDRAULIC CYLINDER - 2" X 12" - 2500 PSI A - Distribution Systems

0

87500855

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 304.8mm Stroke

2" x 12" Monarch 2500 psi without pins

1шт.

1

8177

CLEVIS

cylinder end 2" dia

1шт.

2

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1шт.

3

8181

TIE-ROD

threaded cylinder 3/8" x 12"

4шт.

4

9628503

NUT,3/8"-16, G5

8шт.

5

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

Included in repair kit 8179

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 8179

1шт.

7

2684

HYD TUBE

cylinder, 2" x 12" Monarch

1шт.

8

425038A1

NUT

cylinder piston 3/4"-16, GA

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING ROD

1шт.

Included in repair kit 8179

1шт.

10

3977

PISTON

cylinder, 2 Monarch #492430

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING PISTON

1шт.

Included in repair kit 8179

1шт.

12

8178

CAP

cylinder rod end 2" dia x 1 1/8" shaft

1шт.

13

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Included in repair kit 8179

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 8179

1шт.

15

439279A1

PISTON ROD

2 1/2" x 12" Monarch

1шт.

16

87449358

CLEVIS

cylinder 1" pin Monarch 1 1/8"-12 rod

1шт.

17

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

17a

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

18

8179

SEAL KIT

2d & 1 1/8" rod Monarch #639572

1шт.

Includes ref 8, 9, 10, and 11

1шт.
