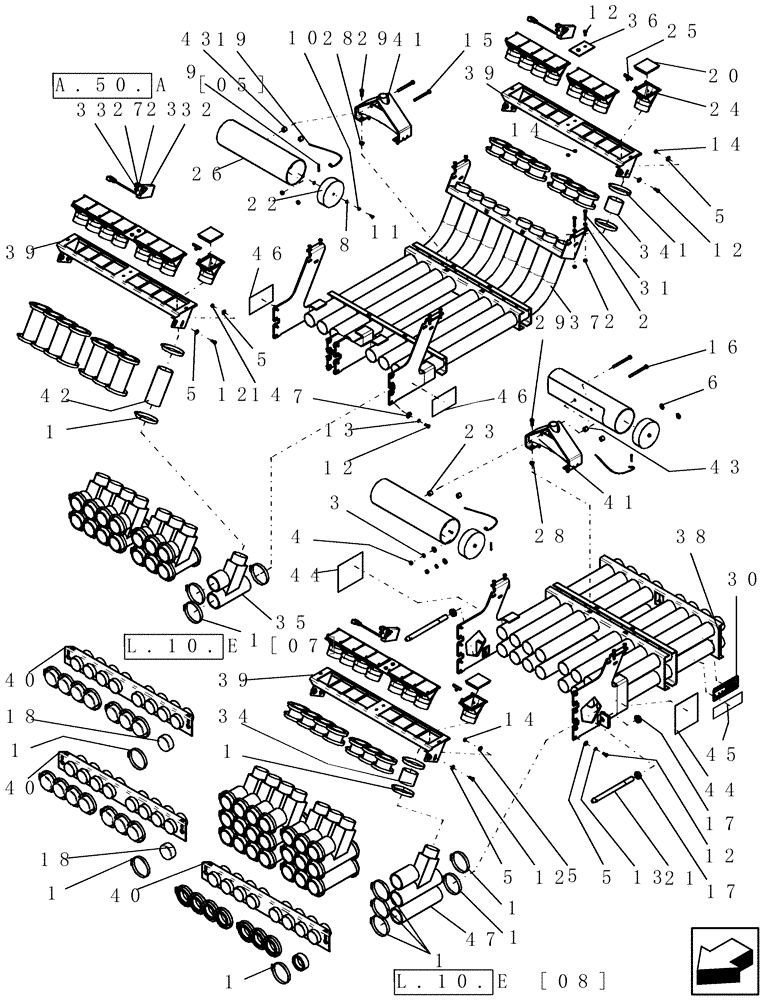

Запчасти Case IH ADX3430 (L.10.F[22]) - CENTER MANIFOLD (2ND SERIAL NO. RANGE) L - Field Processing

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

136шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

24шт.

3

80681

LOCK WASHER,5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

4шт.

5

95-21031

WASHER,1/4"

36шт.

6

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

16шт.

8

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

16шт.

9

80755

COTTER PIN,1/8" OD x 1" L

3шт.

10

87653

NUT,#8-32

6шт.

11

412750A1

SCREW,Sl, #8 - 32 x 3/4"

mch #8-32 x 3/4" ph sq-slt

3шт.

12

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

46шт.

13

80682

LOCK WASHER,1/4"

28шт.

14

280129

NUT,1/4"-20

18шт.

15

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

2шт.

16

88964

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

17

86632557

JAM NUT,Jam, 3/4"-10, G5

4шт.

18

4731

CAP

vinyl 2 1/2" id x 1" long

16шт.

19

GD-388

CHAIN

safety, inlet shield - 9"

9шт.

27" required

1шт.

20

7187

PLUG

manifold transition

24шт.

21

8275

PIN,3/4" - 10 x 9.75"

pin locator, center manifold

2шт.

22

8293

CAP

storage tube

3шт.

23

9148

LOCK NUT

#10-32, stainless steel

6шт.

24

9475

TUBE

manifold transition, velocity sensor

24шт.

25

425095A1

PLUG

manifold transition - velocity sensor

24шт.

26

425043A1

TUBE

storage & cap, 17 3/16"

3шт.

27

7777

SCREW,Pan Hd, #10 - 32 x 1"

mch #10-32 x 1" ph Phillips ss

6шт.

28

9586

FLANGE NUT

flange 5/16" serrated

8шт.

29

21319

BOLT

5/16"-18 x 1" ss hx-skt

8шт.

30

22409

DECAL

center manifold cleanout

1шт.

31

22577

BOLT

1/4"-20 x 1 1/4", G5, all thread

12шт.

32

13637V2

SENSOR

air flow

3шт.

33

CA-142

SPACER

air velocity sensor

3шт.

34

GD-602

HOSE,2.50" ID x 2.25"

16шт.

35

GH-522A

VALVE

single/double shoot, Years: -31-MAR-03

8шт.

Refer to Two Outlet Valve page for details

1шт.

35

448080A1

VALVE

single / double shoot, Start Year: 01-APR-03

8шт.

Refer to Two Outlet Valve page for details

1шт.

36

GL-116

SPACER

plate transition manifold rear

3шт.

37

GL-440

MANIFOLD

double shoot - center

1шт.

38

GL-441

MANIFOLD

triple shoot - center

1шт.

39

GL-442

PANEL

mount, transition manifold

3шт.

40

GL-443

MANIFOLD

outlet

3шт.

41

GL-444

CARRIER

center manifold

2шт.

42

GL-452

HOSE,2.50" ID x 6.44"

8шт.

43

GL-460

SPACER

tube mount

6шт.

44

GL-700.06

DECAL

triple shoot valve a

2шт.

Tow Behind

1шт.

45

GL-700.21

CAUTION DECAL

keep hands

1шт.

46

GL-700.22

DECAL

two outlet valve a

2шт.

Tow Behind

1шт.

47

GL-454A

VALVE

assembly, triple shoot

8шт.

Refer to Three Outlet Valve page for details

1шт.
