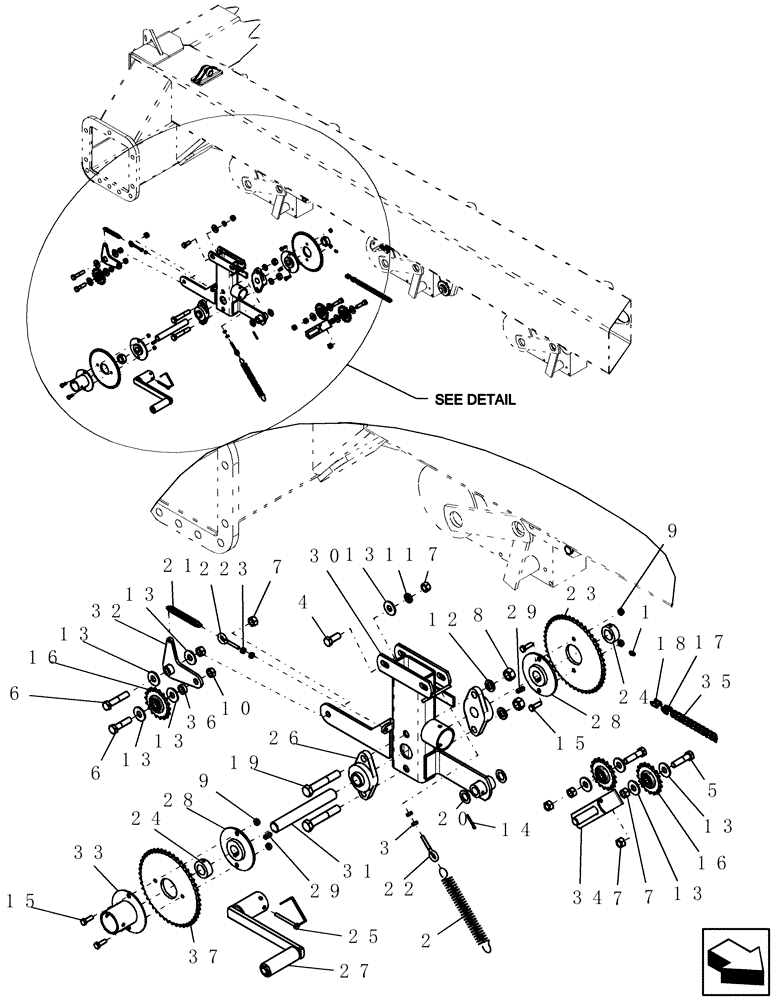

Запчасти Case IH ADX3430 (L.10.F[05]) - MECHANICAL DRIVE - ON FRAME - HANDCRANK/IDLERS L - Field Processing

1

87414

LUBE NIPPLE,1/4" - 28

1шт.

2

87505478

TENSION SPRING

7/32" wire 1 1/4" od x 6" long

1шт.

3

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

4

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

6шт.

5

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

6

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

7

280431

NUT,1/2"-13, G5

12шт.

8

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

9

281010

LOCK NUT,7/8"-14, GC

5шт.

10

86992215

LOCK NUT,1/2"-13, GC

3шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

12

12034871

WASHER

5/8"

2шт.

13

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

18шт.

14

80755

COTTER PIN,1/8" OD x 1" L

1шт.

15

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5шт.

16

2244

SPROCKET

idler

5шт.

17

2245

LINK,12.7mm Pitch

connector, offset 40-1

1шт.

18

25195

LINK,12.7mm Pitch

roller conn 40-1

1шт.

19

16445

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 5

2шт.

20

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

3/4" id 14ga

2шт.

21

87506209

TENSION SPRING

1/16" wire x 1/2" od x 4" long

1шт.

22

432633A1

EYEBOLT

1/4" x 2 1/2" G2 bent

2шт.

23

GH-347

SPROCKET

47 tooth

2шт.

24

2259

COLLAR

1" lock

2шт.

25

6854

PIN

quick - 1/4" x 2 1/2" usable

1шт.

26

7086

BEARING ASSY,25.4mm ID

with 2-hole flange

2шт.

Includes 219-57 and 6180

1шт.

26

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

26

6180

BALL BEARING,25.4mm ID x 52mm OD x 18mm W

1" bore

1шт.

27

GE-349A

HANDLE

assembly, crank

1шт.

Includes GE-349, 425-107, five 495-21044, 413-764 and GE-172

1шт.

27

GE-349

CRANK

arm

1шт.

27

280717

NUT,7/16"-14, G5

1шт.

27

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

27

280130

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

27

GE-172

HANDLE

crank

1шт.

28

GH-239

MOUNTING PLATE

sprocket

2шт.

29

GH-106

KEY

1/4" sq x 3/4" long

2шт.

30

GL-318

BRACKET

mount, mechanical drive sprocket

2шт.

31

GL-321

DRIVE SHAFT

ratio sprocket

1шт.

32

GL-322

ADJUSTER

chain tensioner

1шт.

33

GL-325

TUBE

mount, crank handle

1шт.

34

GL-328

TENSIONER

adjuster chain

1шт.

35

GL-362

CHAIN (AG)

meter drive inner

1шт.

36

GL-487

SPACER

idler sprocket

1шт.

37

NSS

NOT SOLD SEPARAT

Ratio Sprocket

1шт.

100

GL-700.14

DECAL

crank sprocket

1шт.

Not Shown

1шт.
