Запчасти Case IH ADX3430 (L.10.D[04]) - DUAL FAN - MECHANICAL AND VARIABLE RATE ADD-ONS L - Field Processing

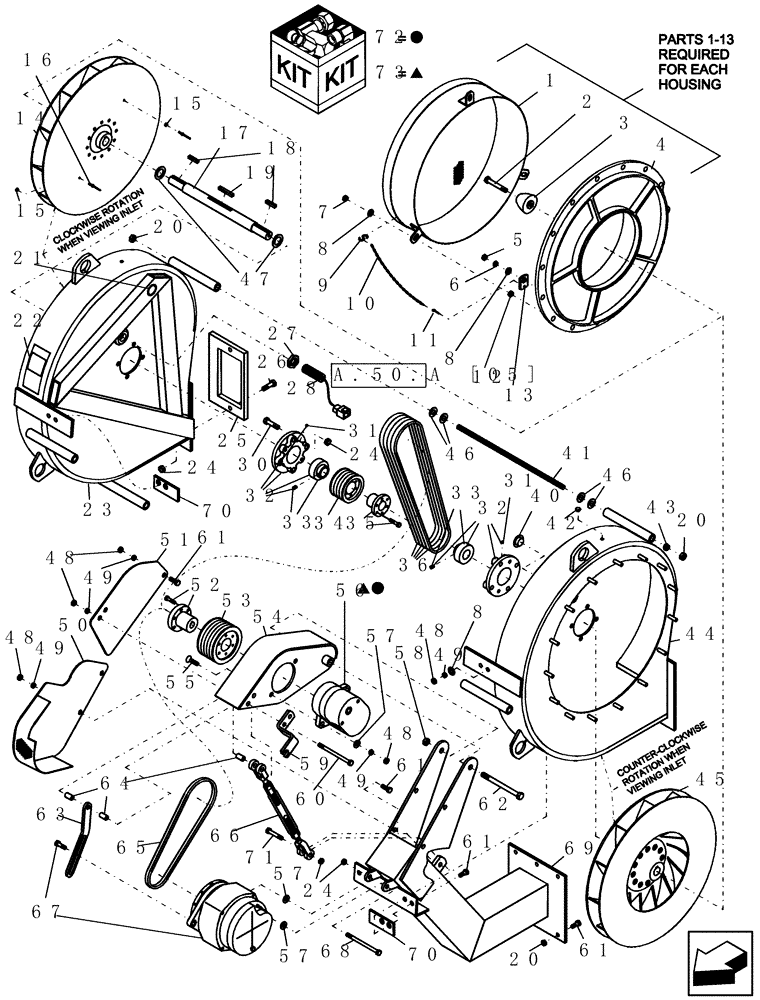

Схема запчастей Case IH ADX3430 - (L.10.D[04]) - DUAL FAN - MECHANICAL AND VARIABLE RATE ADD-ONS L - Field Processing
49
50
61
61
25
67
45
47
70
33
24
42
48
15
51
49
4
57
64
24
11
48
9
27
2
54
49
60
43
71
46
3
32
63
56
20
48
24
57
31
73
61
61
26
1
28
57
19
12
14
66
40
33
5
52
55
20
31
18
22
30
7
35
70
8
41
46
58
48
59
8
16
68
72
6
69
44
8
10
32
36
21
65
62
23
15
17
34
53
13
49
20

Артикул

Название

Примечание

Количество

0

GL-840A

FAN

assembly, dual

1шт.

1

GD-770

SCREEN

fan inlet

2шт.

2

5110

BOLT

fg 3/8"-16 x 2 1/2" GR5 sfl

2шт.

3

GE-396

HUB

spinner, fan

2шт.

4

4999\C

FAN

inlet casting

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

80681

LOCK WASHER,5/16"

2шт.

7

80801

WING NUT

5/16"-18

2шт.

8

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

3шт.

9

6053

HOOK

#6

2шт.

10

GD-388

CHAIN

safety, inlet shield - 9"

4шт.

9" required

1шт.

11

80755

COTTER PIN,1/8" OD x 1" L

4шт.

12

86521605

FLANGE NUT,5/16"-18, Cl 5

30шт.

13

GH-530

BRACKET

mount, fan shield chain

2шт.

14

GL-850A

IMPELLER

assembly, dual fan - clockwise rotation

1шт.

15

87653

NUT,#8-32

4шт.

16

425028A1

RIVET

pop 1/8" x 1/2"

4шт.

17

GL-845

SHAFT

fan impeller - dual fan

1шт.

18

GD-143

KEY

1/4" sq x 1" long

2шт.

19

GL-507

KEY

1/4" sq x 1 1/4" long

1шт.

20

88902

NUT,3/8"-16

14шт.

21

6630

DECAL

grease 100 hours

2шт.

22

GD-500.73

DANGER DECAL

fan

1шт.

23

GL-842

HOUSING

dual fan - cws rotation

1шт.

24

88902

NUT,3/8"-16

12шт.

25

CA-220

SEAL

dual fan flange

2шт.

26

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

27

425045A1

NUT

7/8"-20 x 1/4" thick

2шт.

28

13976

SENSOR

shaft

1шт.

Refer to Sensors page for details

1шт.

30

5315

SCREW,3/8" - 16 x 1-1/2"

hex socket 3/8"-16 x 1 1/2" blk bh

8шт.

31

87414

LUBE NIPPLE,1/4" - 28

2шт.

32

GD-177A

FLANGED BEARING

c/w 4 hole flange

2шт.

Includes 219-8 and 6180

1шт.

33

6180

BALL BEARING,25.4mm ID x 52mm OD x 18mm W

1" bore

2шт.

34

9939

SHEAVE

3 41/64" od - 3v 4 groove

1шт.

35

4361

BUSHING

sh 1" bore

1шт.

36

3290

V-BELT

3V x 425

4шт.

Order 4 belts for a matched set of 4

1шт.

40

412913A1

PLASTIC PLUG

7/8" hole

1шт.

41

GL-846

THREADED ROD

1/2"-13 x 14 1/2"

3шт.

42

9507

PLUG

rubber - 27/64" hole

4шт.

43

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

44

GL-843

HOUSING

dual fan - ccw rotation

1шт.

45

GL-844A

IMPELLER

assembly, dual fan - counter clockwise rotation

1шт.

46

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

6шт.

47

21427

BUSHING

7/8" id 1 3/8" 18GA

1шт.

Bushings may be in either location depending on fit of shaft

1шт.

47

21352

BUSHING

7/8" id 1 3/8" 14GA

1шт.

Bushings may be in either location depending on fit of shaft

1шт.

48

9628503

NUT,3/8"-16, G5

10шт.

49

80680

LOCK WASHER,3/8 0.381 CST ZND

10шт.

50

GL-853

SHIELD

alternator dual fan

1шт.

51

GL-849

SHIELD

motor mount - dual fan

1шт.

52

8565

BUSHING

3/4" bore

1шт.

53

9938

SHEAVE

5" od - 3v 5 groove

1шт.

54

GL-841

BRACKET

mount, housing, motor - dual fan

1шт.

55

9920

SCREW,3/8" - 16 x 1.5, Gr 5

3/8" x 1 1/2" GR5 countersunk

2шт.

56

9924

HYDRAULIC MOTOR

dual fan

1шт.

56

23827R

REMAN-HYDROSTAT PUMP

ADX3360 (6/01-5/03), ADX3380 (6/03-7/08), ADX3430 (1/04-7/08), Reman for New P/N 9924

1шт.

56

23827C

CORE-HYDROSTAT PUMP

Return Number

1шт.

56

23827

HYDRAULIC MOTOR

19 cc Danfoss phase ii, Years: -30-SEP-04, Serial Range: -CBJ0010004

1шт.

56

23827R

REMAN-HYDROSTAT PUMP

ADX3360 (6/01-5/03), ADX3380 (6/03-7/08), ADX3430 (1/04-7/08), All Serial Range: -CBJ0010004

1шт.

56

23827C

CORE-HYDROSTAT PUMP

Return Number

1шт.

56

9926

HYDRAULIC MOTOR

19cc ultra, Years: 01-OCT-04-01-MAY-09, Start Serial: CBJ001004

1шт.

56

87488819R

REMAN-HYD MOTOR

19cc, Years: 01-OCT-04-01-MAY-09, Start Serial: CBJ001004

1шт.

56

87488819C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

57

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

58

86992215

LOCK NUT,1/2"-13, GC

1шт.

59

GL-721

BRACKET

alternator upper mount

1шт.

60

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

61

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

62

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

63

GL-848

BRACKET

alternator adjustment

1шт.

64

GL-847

SPACER

dual fan

3шт.

65

2204

BELT

3v x 315

1шт.

66

9940

TURNBUCKLE

assembly

1шт.

Includes ref #30

1шт.

67

22248

ALTERNATOR

60 amp c/w bi-directional fan & chaff guard

1шт.

67

84485249R

REMAN-ALTERNATOR

ADX3360 (6/01-5/03), ADX3380 (6/03-7/08), ADX3430 (1/04-7/08), Reman for New PN 22248

1шт.

67

84485249C

CORE-ALTERNATOR

Return Number

1шт.

67

84479902

ALTERNATOR

100 amp c/w

1шт.

67

84479902R

REMAN-ALTERNATOR

100 amp c/w

1шт.

67

84479902C

CORE-ALTERNATOR

Return Number

1шт.

68

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

1шт.

69

GL-840

SUPPORT

arm, dual fan

1шт.

70

GL-855

SPACER

dual fan

2шт.

71

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

72

9489

SEAL KIT

Danfoss 10, 12, 19 cc motors

1шт.

For motor 9924

1шт.

72

425297A1

SEAL KIT

Danfoss 10,12,19 cc

1шт.

For motor 23827

1шт.

72

51200121

SEAL KIT

hydraulic motor 19cc ultra

1шт.

For motor 9924

1шт.

73

9490

SEAL

hydraulic motor Danfoss 10,12,19cc

1шт.

For motor 9924

1шт.

73

9490

SEAL

hydraulic motor Danfoss 10,12,19cc

1шт.

For motor 23827

1шт.

73

9972

SEAL

hydraulic motor Ultra 19cc

1шт.

For motor 9926

1шт.

100

22407

DECAL

fan belt tension adjustment

1шт.

Not Shown

1шт.

Выбрано товаров: 103
