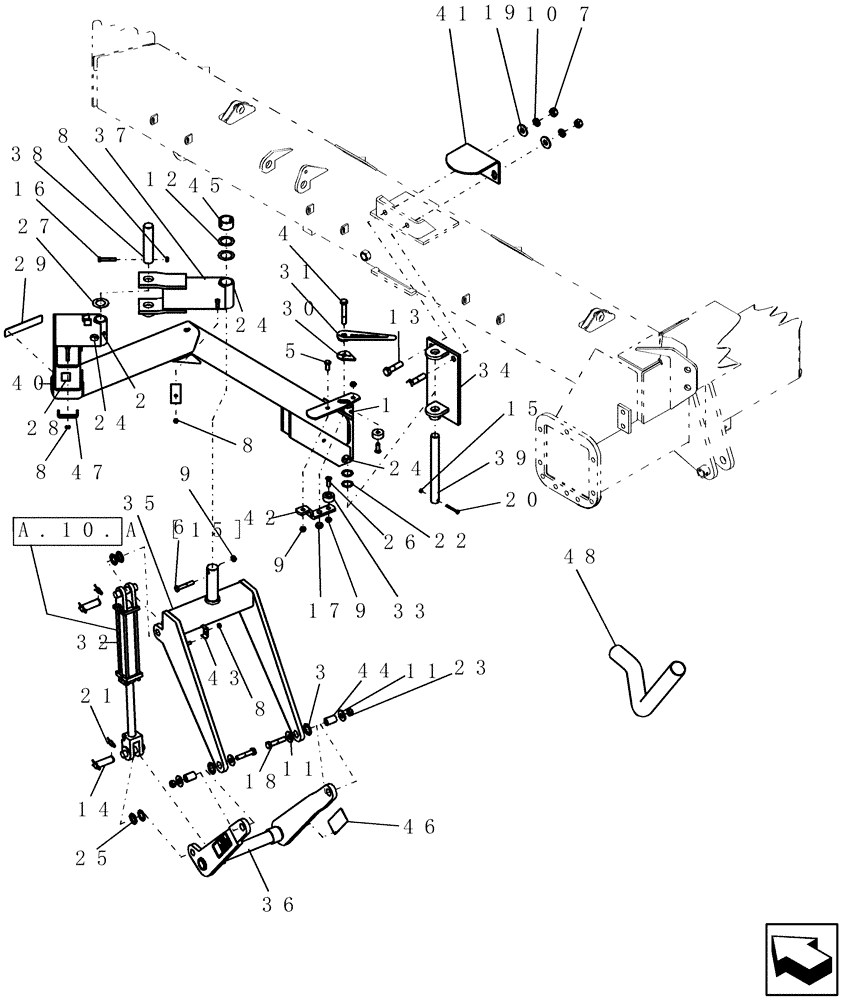

Запчасти Case IH ADX3430 (L.10.B[10]) - AUGER MAIN SUPPORT ARM (BSN CBJ0019300) L - Field Processing

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

3

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

2шт.

4

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

5

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

6

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

7

280954

NUT,3/4"-10, G5

, Years: -15-NOV-04

2шт.

8

88902

NUT,3/8"-16

4шт.

9

86992215

LOCK NUT,1/2"-13, GC

4шт.

10

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

, Years: -15-NOV-04

2шт.

11

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

12

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

2шт.

13

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

14

1945

PIN

cylinder, 1 x 3 ul snap ring grv

2шт.

15

280129

NUT,1/4"-20

1шт.

16

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

17

85700693

NUT,5/8" - 11, Gr C

1шт.

18

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

19

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

, Years: -15-NOV-04

2шт.

20

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

21

87315704

HAIR PIN COTTER

external 3/4" id x 2"

4шт.

22

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

23

85700693

NUT,5/8" - 11, Gr C

2шт.

24

6630

DECAL

grease 100 hours

3шт.

25

7141

WASHER

1 9/64" id x 1 3/4" 10ga

4шт.

26

FLXFLX9905

1/2"-13 x 1 1/2" flat socket head

2шт.

27

21303

WASHER

1 1/2" id 2 1/2" 16ga

1шт.

28

311863A1

REFLECTOR

reflector red 1 3/8" x 7 1/4"

1шт.

29

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

1шт.

30

9292\C

INSERT

lock, left

1шт.

31

9294\C

SPECIAL WRENCH

lock , left

1шт.

32

9450

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 254mm Stroke

2" x 10" mon 2500 psi with pins

1шт.

Refer to 2" x 10" Hydraulic Cylinder parts page for details

1шт.

33

CA-217

BRAKE PAD

auger arm

2шт.

34

GL-643

PLATE

mounting pivot pin

1шт.

35

GL-644

BRACKET, PIVOT

PIVOT BRACKET auger, scissor upper

1шт.

36

GL-645V2

BRACKET

scissor, lower auger

1шт.

37

GL-660

ARM

auger short

1шт.

38

GL-665

HEADLESS PIN

auger arm - short

1шт.

39

GL-666

PIVOT PIN

main auger arm

1шт.

40

GL-746

ARM

main auger

1шт.

Includes 6630, 8310 and 8302

1шт.

41

GL-757

PLATE

auger brake, Years: -15-NOV-04

1шт.

42

GL-758

STRAP

auger brake

1шт.

43

GL-781

CLAMP

1/4" hyd hose

3шт.

44

GL-793

BUSHING

auger scissor

2шт.

45

GL-794

RETAINER

auger scissor

1шт.

46

GL-700.05

DECAL

caution crushing hazard

2шт.

47

GL-947

CLAMP

hydraulic auger hose

2шт.

48

GL-949

COVER

hydraulic hose 36", Years: -31-MAY-04

1шт.

48

87447151

PROTECTOR

hose, Start Year: 01-JUN-04

1шт.
