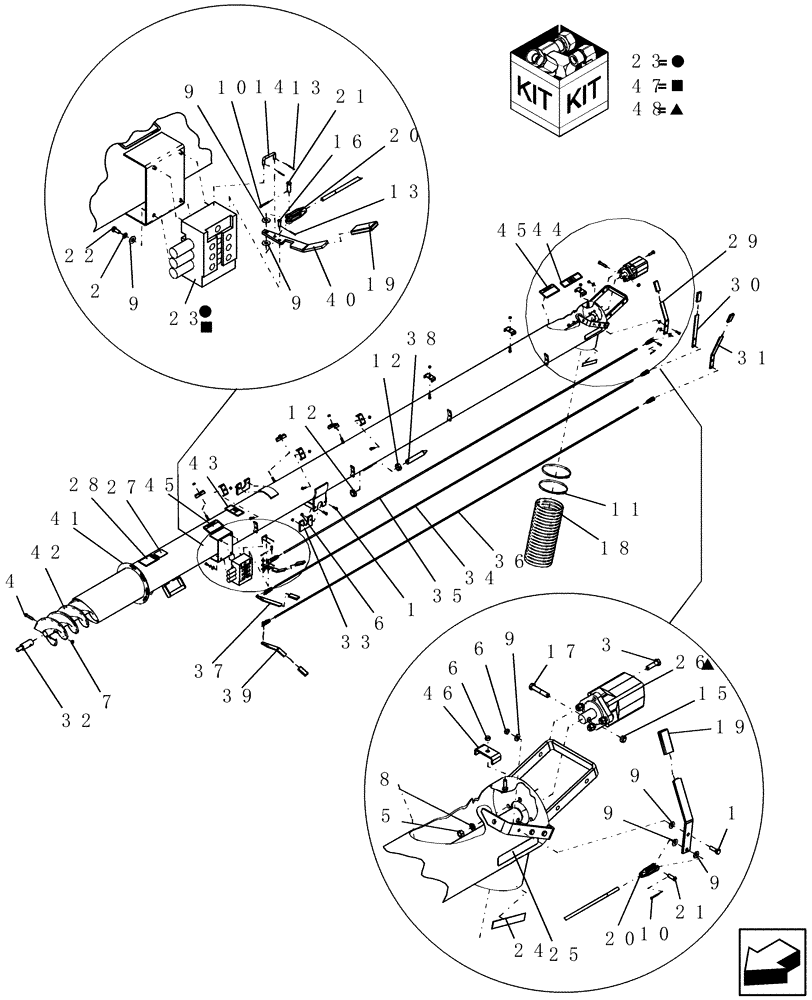

Запчасти Case IH ADX3430 (L.10.B[06]) - AUGER TUBE ASSEMBLY (BSN CBJ0005357 [ADX3380] & BSN CBJ0019010 [ADX3430] L - Field Processing

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

13шт.

2

80681

LOCK WASHER,5/16"

4шт.

3

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

4

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

5

280431

NUT,1/2"-13, G5

4шт.

6

88902

NUT,3/8"-16

16шт.

7

86992215

LOCK NUT,1/2"-13, GC

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

9

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

22шт.

10

80755

COTTER PIN,1/8" OD x 1" L

6шт.

11

5171

HOSE CLAMP

#128 type f 6 1/2" to 8 1/2"

2шт.

12

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

2шт.

13

280236

COTTER PIN,1/16" x 1/2"

9шт.

14

7945

HOOK

c shape

3шт.

15

7959

LOCK NUT

1/2"-20, GC

1шт.

16

8632

CLEVIS PIN

1/4" x 3/4" fl

3шт.

17

280561

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

1шт.

18

419997A1

HOSE

8" x 19" auger discharge

1шт.

19

9460

CAP

1/4" x 1 1/4" x 3"

6шт.

20

51200897

LINKAGE YOKE

clevis 3/8" x 2 1/2" long

6шт.

21

9834

CLEVIS PIN

3/8" x 1 1/16"

6шт.

22

280559

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

23

87506263

HYDRAULIC VALVE

3 Spool

1шт.

Includes three 7945, three 8632, and nine 8773

1шт.

24

425479A1

ADHESIVE STRIP

anti-slip 25" long - 1" wide

1шт.

Cut from 60' bulk roll marked 425478A1

1шт.

24

425478A1

ADHESIVE STRIP

anti-slip 60' roll - 1" wide

1шт.

25

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

2шт.

26

87506224

HYDRAULIC MOTOR

10" auger

1шт.

87506224R

REMAN-HYD MOTOR

ADX3360 (6/01-5/03), ADX3380 BSN CBJ0005357 (6/03-7/08), ADX3430 BSN CBJ0019010 (1/04-7/08)

1шт.

87506224C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

27

GD-500.06

DECAL

attention auger

1шт.

28

GD-500.80

DECAL

danger auger flighting

1шт.

29

GL-648

HANDLE

remote lift control

1шт.

30

GL-649

HANDLE

remote auxiliary control

1шт.

31

GL-650

HANDLE

remote flighting control

1шт.

32

GL-655

SHORT SHAFT

connector, auger

1шт.

33

GL-657

RETAINER

auger tube

2шт.

34

GL-670

ADJUSTMENT ROD

auxiliary control

1шт.

35

GL-671

ROD

control

1шт.

36

GL-672

ROD

control, flighting

1шт.

37

GL-748

HANDLE

valve auxiliary control

1шт.

38

GL-780

HEADLESS PIN

rear auger lock

1шт.

39

GL-821

HANDLE

valve flighting control

1шт.

40

GL-822

HANDLE

valve lift control

1шт.

41

GL-147

TUBE

auger 10"

1шт.

Includes two 8302, GD-500.80, GL-700.02 and GL-700.03

1шт.

42

GL-654

STEEL FLIGHT

10"

1шт.

43

GL-700.02

DECAL

auger controls lower

1шт.

44

GL-700.03

DECAL

auger controls upper

1шт.

45

GL-700.43

DECAL

attention operating auger

2шт.

46

GL-947

CLAMP

hydraulic auger hose

9шт.

47

22741

SEAL KIT

Danfoss 3 spool

1шт.

47

87507899

KIT

Spring And Poppet

1шт.

48

87364589

SEAL KIT

Danfoss

1шт.
