Запчасти Case IH ADX3430 (F.10.D[18]) - TOW BEHIND CASTER PULL FIELD HITCH CONNECTIONS F - Frame Positioning

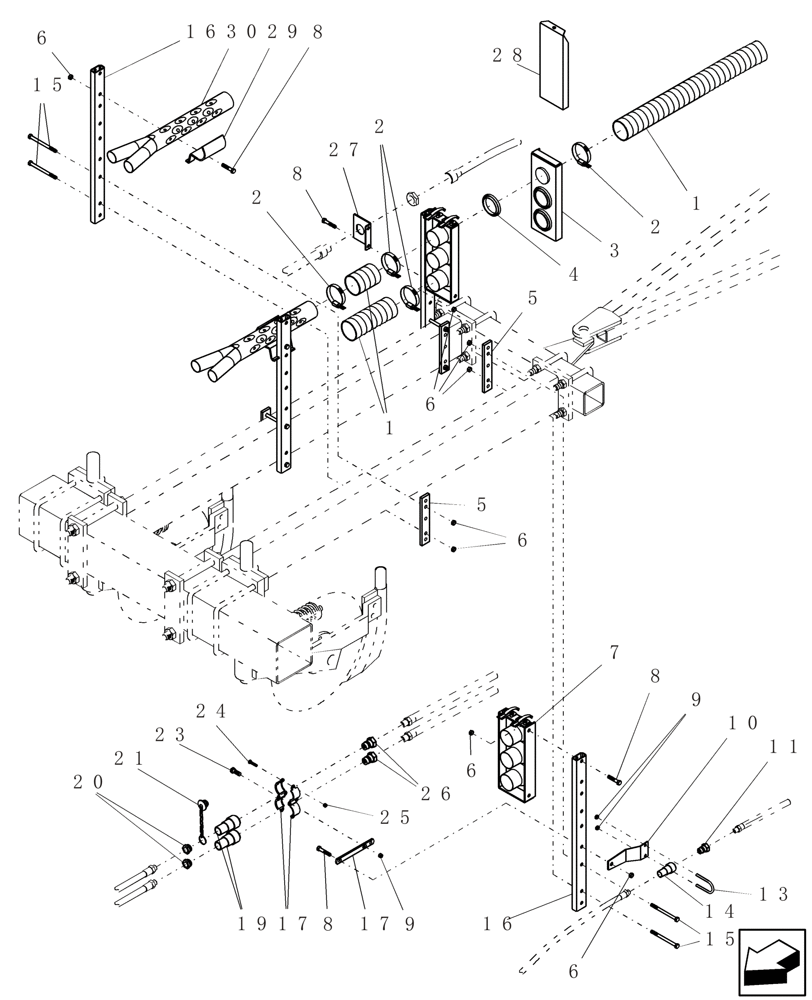

Схема запчастей Case IH ADX3430 - (F.10.D[18]) - TOW BEHIND CASTER PULL FIELD HITCH CONNECTIONS F - Frame Positioning
14
9
7
6
4
9
10
5
1
6
3
11
17
13
17
19
8
6
21
30
1
6
25
27
26
2
8
28
5
29
8
6
15
23
2
16
15
16
8
2
20
24

Артикул

Название

Примечание

Количество

1

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

This is used from the quick connects to the header elbow

1шт.

2

214-1444

HOSE CLAMP,58.6mm - 82.5mm

1шт.

3

GD-673

FITTING

hose connector 2 1/2"

1шт.

4

6177

OIL SEAL

quick connect 2 1/2" id

1шт.

5

GR-109

STRAP

bolt

1шт.

6

88902

NUT,3/8"-16

1шт.

7

GD-672A

HOLDER

quick connect 2 1/2" female

1шт.

Includes two 413-620, four 425-146, two 5625 and four 4630

1шт.

7

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

7

5625

LATCH

clamp over center

2шт.

7

4630

RIVET,Pop, 3/16" x .690"

4шт.

8

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

281010

LOCK NUT,7/8"-14, GC

1шт.

10

GH-601

COUPLING

hydraulic mount third line

1шт.

11

51200890

QUICK MALE COUPLING

3/8"

1шт.

13

1569

U-BOLT

ur 5/16" x 1 3/8" w x 2 1/16" d 3/4" thread

1шт.

14

51200889

COUPLING, QUICK, FEM

3/8"

1шт.

15

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

16

GR-102

SUPPORT TUBE,26" L

tube

1шт.

17

GE-202

CLAMP

for two 3/4" couplers

1шт.

19

6935

COUPLING, QUICK, FEM

3/4"

1шт.

20

3800

FITTING

reducer hydraulic bushing 3/4" mpt x 1/2" fpt

1шт.

21

6934

PLUG

dust, pioneer coupler - 3/4"

1шт.

23

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

24

3236

SELF-TAP SCREW

1/4"-20 x 1 1/4" oh pi plt

1шт.

25

280129

NUT,1/4"-20

1шт.

26

6936

QUICK MALE COUPLING,3/4" - 14 NPTF

3/4"

1шт.

27

GH-139

BRACKET

plug support

1шт.

28

GD-254

COVER

plate hose connect

1шт.

29

GR-103

HOSE CLAMP

primary single

1шт.

30

GR-101

MANIFOLD

header 1:2 primary 2 1/4" : 1 3/4"

1шт.

100

GE-518K

HOSE KIT

hose - 2 1/2"

1шт.

Not Shown

1шт.

Includes splice tube GE-518 and two 214-1444 hose clamps

1шт.

100

GE-518

TUBE

splice hose - 2 1/2"

1шт.

100

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

Выбрано товаров: 38
